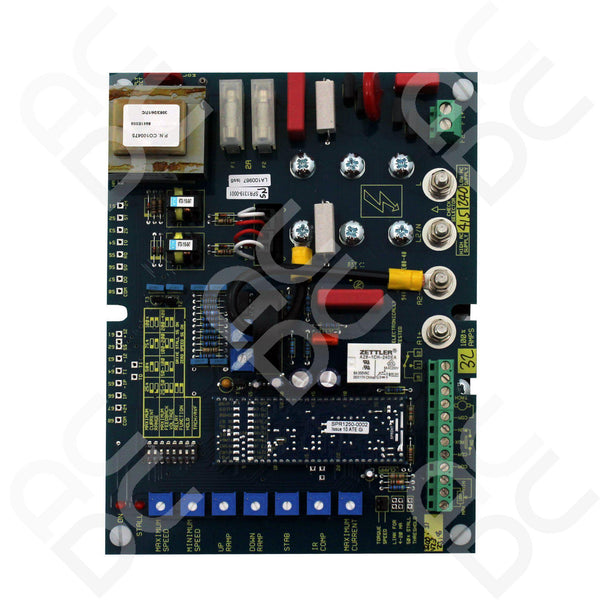

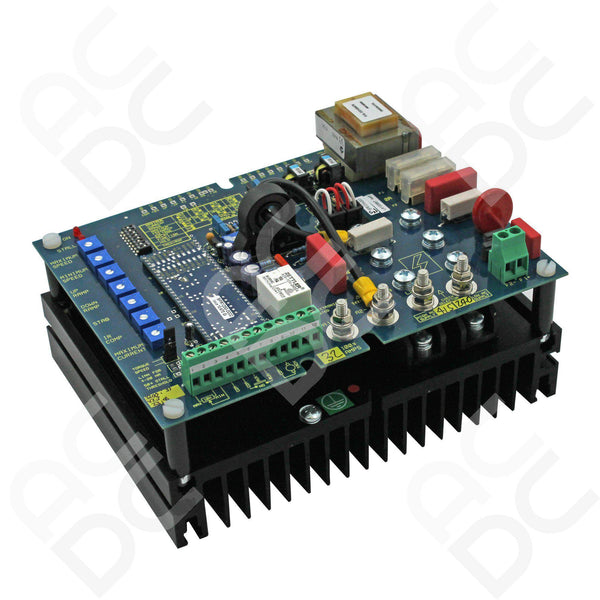

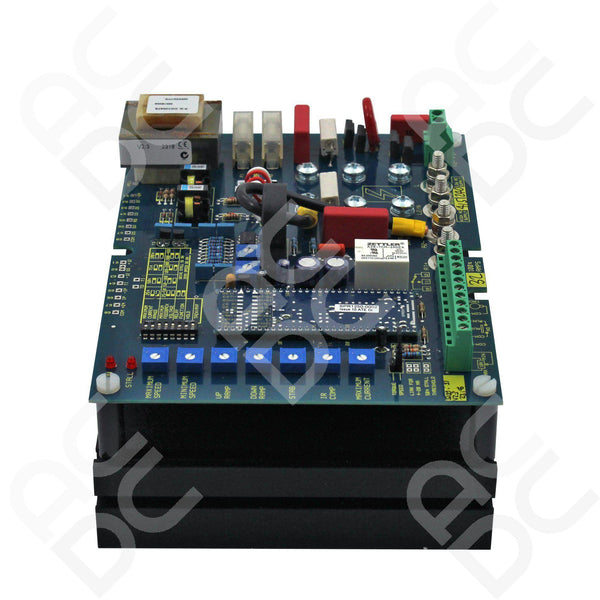

Sprint 3200i/32 - 7.5KW - 1Q Isolated

Product Code: 17857

Availability:In stock

£333.00 - £361.00
£364.00 £333.00

Available Options


Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Model 3200i/32 - DC Motor Control Up To 32 Amps (7.5KW/10HP) Fully Isolated 230VAC / 110VAC

7.5kW Chassis / Panel Mounted DC Drive - Model 3200i/32 - 32 Amps - Manufacturers Part Number: 3200i/32



Compact & Powerful

Available in four current outputs up to 48 Amps, to closely match your motor requirements. To make installation easier, you can quickly connect using screw terminals. Easy to access control terminals, extensive features and I/O make this range of DC motor controllers an industry standard. With line-to-line or line-to-neutral operation up to 48 Amps, you can use this controller in a wide range of motor control applications. You can also integrate this motor controller with other drives and electrical equipment. The 3200i/32 is a fully isolated DC motor controller.

340i GIF

Specifications at a glance:

  • 32 Amps (7.5KW/10HP)
  • Fully isolated control electronics
  • 150 x 200 x 110 (mm) H x W x D
  • Numerous inputs and outputs for complex system applications
  • Overspeed limit
  • Over torque limit
  • Inverse time overload
  • 50% stall threshold
  • Phase angle clamp
  • Precision Reference
  • Precision tach rectifier


User Adjustable

Signal Inputs / Outputs

Inputs

  • Speed
  • Torque
  • Auxiliary speed inputs +ve and -ve
  • 4-20mA and 0-20mA
  • Drive run
  • Tachogenerator

Outputs

  • Speed
  • Current
  • Auxiliary speed inputs +ve and -ve
  • Setpoint Ramp
  • Total demand
  • Zero speed and stall relay driver
  • +/-12 +/- 24v rails
Technical Highlights

Technical highlights:

  • Torque control input for basic winding or tension control, with overspeed limiting
  • Switch selectable Tach or Armature voltage feedback
  • Volt free change over contacts for zero speed and/or stall
  • PLC compatible input and output signals
  • Extra 50% peak torque for 30secs prior to stall trip operation
  • On board relay indicates zero speed and/or motor overload

Low voltage 30/60V AC supply version available for 24/48V DC motors
