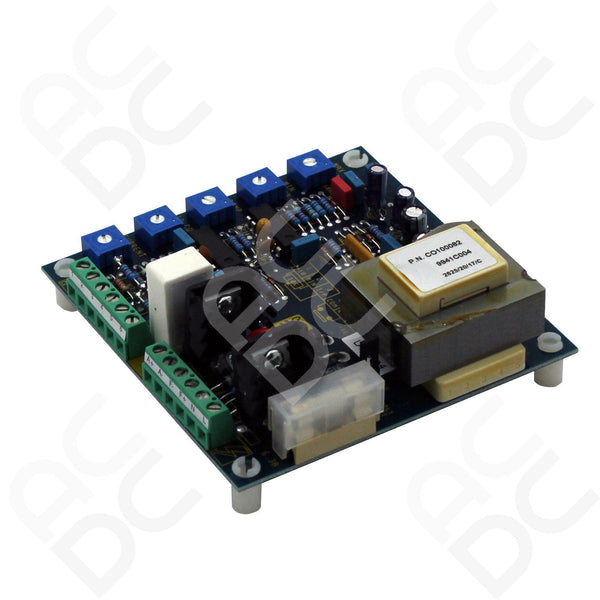

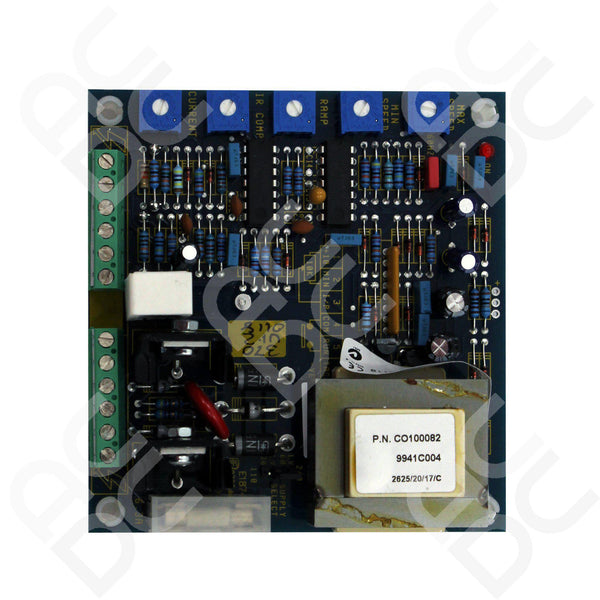

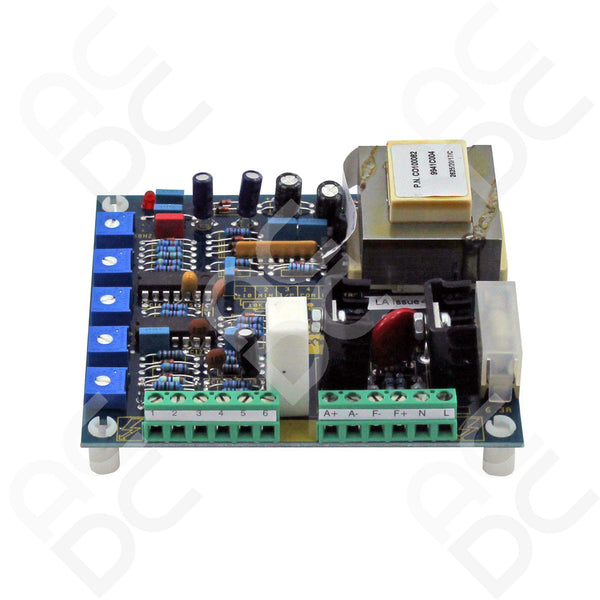

0.55kW Open Chassis Mount DC Drive - Sprint 370 230VAC / 110VAC
​
Sprint 370 0.55kW
Power Output: 0.55kW | 0.75HP
Power Input: Single Phase 230VAC
Output Current: 3.7A
Frame Size Dimensions
Weight(kg)
Width
Height
Depth
100mm
130mm
70mm
Â
370 0.55kW Onboard
Single Phase
180V Armature voltage
1 Quadrant
Sprint 370 0.55kW Features
Overview
The Sprint 370 0.55kW DC Drive provides a more advanced 1Q option for motors rated up to 3.7A output current (0.55kW motor power). The 370 Open Chassis-Mount DC Drive is available with 110-240VAC input as standard. The compact sprint dc drives also come with a 30-60VAC low voltage option providing 24 – 48VDC output. The 370 model also features the Sprint micro analogue processor which offers many user benefits usually only seen with expensive “high end†products. The Sprint micro analogue processor allows for cost saving solutions by meeting the user's exact requirements and enhancing process performance.
Why Choose a Sprint 370 DC Drive?
This ultra compact, fully isolated dc drive has multiple features to make dc motor control easier than ever before. Some features of the Sprint 370 include:
Open Chassis mounting
Small footprint
Remote start/stop input
Integral AC supply fuse
Energy Efficient
Energy efficiency is a priority when fitting a drive, no matter what the application, an efficient dc drive can make all the difference, with the 370 drive, you are guaranteed to get the highest level of efficiency.
Standard Features
Sophisticated dual loop control
Speed adjustment via remote potentiometer
Adjustable acceleration rate between 1 and 20 seconds
Compact & Reliable
The 370 drive has been designed in such a way to reduce cost and size so users can benefit from these dc drives without any drawbacks. The 370 drive excels with regards to its compact size, due to this feature, it can fit where other drives of the same specification would not, it is also easily integrated for trouble-free installation when retrofitting.
