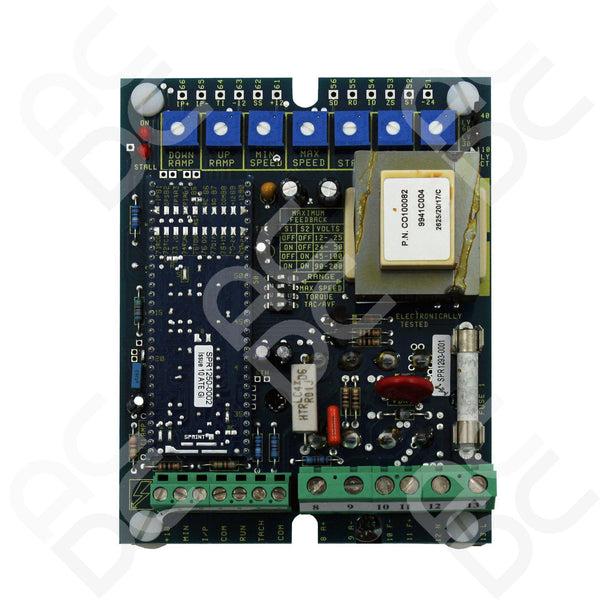

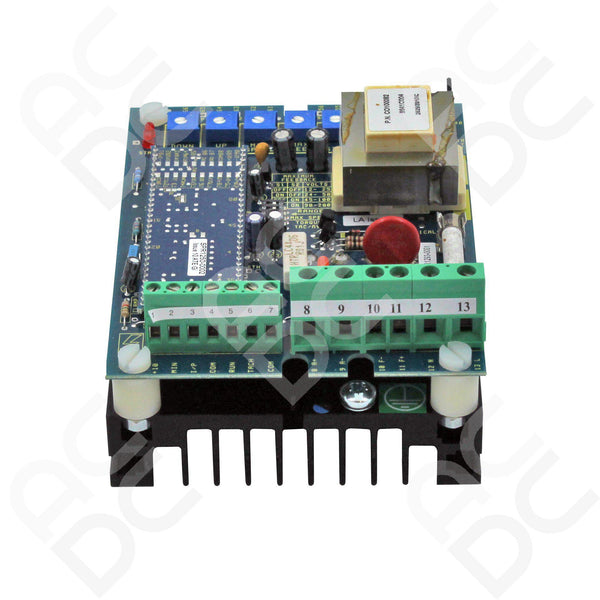

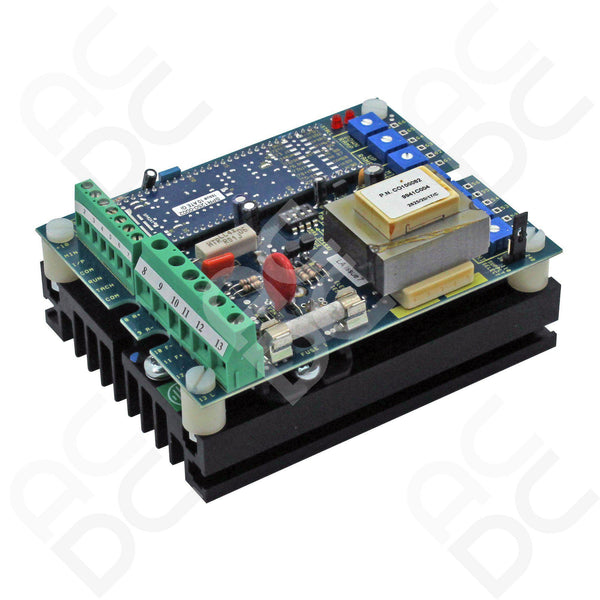

Sprint 1200 - 1.8KW - 1Q Non Isolated

Product Code: 17353

Availability:In stock

£155.00 - £179.00
£173.00 £155.00

Available Options


Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

1.8kW Open Chassis Mount DC Drive - Sprint 1200 230VAC / 110VAC

Sprint 1200 1.8kW

Power Output: 1.8kW | 2HP

Power Input: Single Phase 230VAC

Output Current: 12.2A

Frame Size Dimensions

Weight(kg) Width Height Depth
100mm 130mm 70mm

SL Range



1200 1.8kW Onboard

  • Single Phase
  • 180V Armature voltage
  • 1 Quadrant

Sprint 1200 1.8kW Features

Overview

The Sprint 1200 1.8kW DC Drive provides a more advanced 1Q option for motors rated up to 12A output current (1.8kW motor power). The 1200 Open Chassis-Mount DC Drive is available with 110-240VAC input as standard. The compact sprint dc drives also come with a 30-60VAC low voltage option providing 24 – 48VDC output. The 1200 model also features the Sprint micro analogue processor which offers many user benefits usually only seen with expensive “high end” products. The Sprint micro analogue processor allows for cost saving solutions by meeting the user's exact requirements and enhancing process performance.

Why Choose a Sprint 1200 DC Drive?

This ultra compact, fully isolated dc drive has multiple features to make dc motor control easier than ever before. Some features of the Sprint 1200 include:

  • Open Chassis mounting
  • Small footprint
  • Remote start/stop input
  • Integral AC supply fuse
Diagram

SprintSL

Energy Efficient

Energy efficiency is a priority when fitting a drive, no matter what the application, an efficient dc drive can make all the difference, with the 1200 drive, you are guaranteed to get the highest level of efficiency.

Sprint SL Keypad

Standard Features

  • Switch selectable Tach or armature voltage feedback
  • 4-20mA and 0-20mA loop input option as standard
  • Easily interfaced with armature reversing module
  • Adjustable Stability control for optimum motor response
Reliable Inverter

Compact & Reliable

The 1200 drive has been designed in such a way to reduce cost and size so users can benefit from these dc drives without any drawbacks. The 1200 drive excels with regards to its compact size, due to this feature, it can fit where other drives of the same specification would not, it is also easily integrated for trouble-free installation when retrofitting.
