Round Green Push Button - B100DY - 22mm Diameter - 1 NO

Product Code: 18318



£5.35

Qty

Ask about this product

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

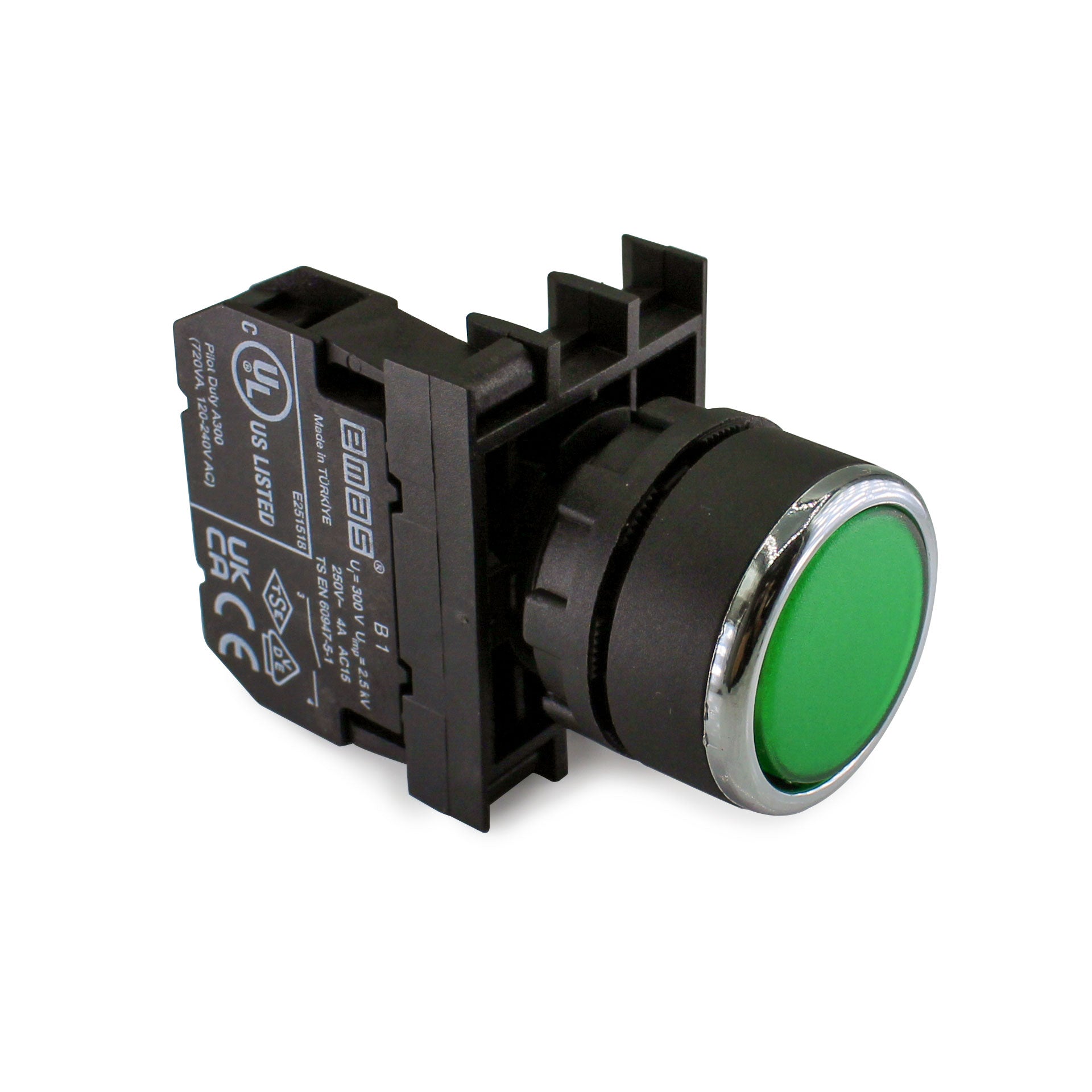

EMAS Round Green Plastic Push Button - 22mm Diameter - B100DY

The EMAS plastic push buttons act as a switch and provide a durable solution that can be used in all applications. This green plastic push button can be fitted in any 22mm hole. Other colours are available and other materials can also be supplied.

This green push button is a generic button that can be used for all sorts of applications. It is reliable and built to last.

B100DY - EMAS Round Green Plastic Push Button - 22mm Diameter

Technical Specifications:

Feature Detail
Product Control Unit
Model Spring
Type Flush
Contact 1NO
Color Green
Dia 22 mm
Current (Ie) 4 A (250V AC)
Usage Category AC 15
Mechanical Life (Min Qty) 500000
Electrical Life (Min Qty) 100000
Operating Frequency (On-Off/Hour) Mech. 3000 Elec. 1200
Insulation Voltage (Ui) 300V
Impulse Withstand Voltage (Uimp) 2.5 kV
Dielectric Strength (Body-Contact) 2.500V AC
Dielectric Strength (Contact-Contact) 1.500V AC
Isolation Resistance 10 MΩ min. (500V DC)
Operating Temperature -15 / + 80 °C
Pollution Degree 3
Protection Degree IP50
Contact Material AgNi
Cable Section 1.5-2.5 mm²
Screw Torque 1,5 Nm
Short Circuit Breaking Capacity (Ics) 1 kA
Production Time 31.12.1899 00:00:00
Serial B Series Plastic
