Select the options to suit your specific application
Overview

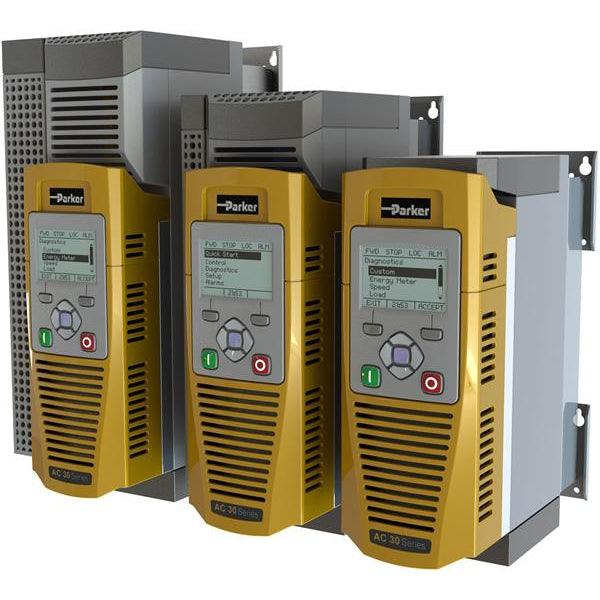

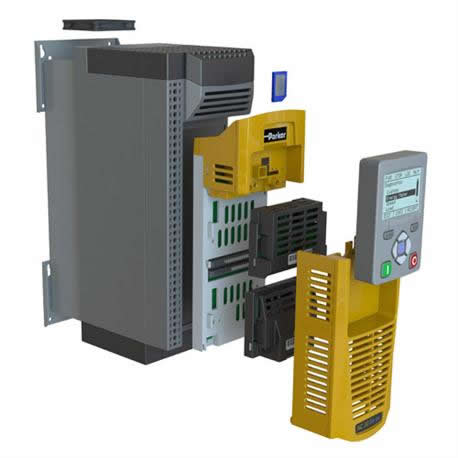

The AC30 is a modular product allowing users
to select power stack, control module, IO and communications modules and accessories to perfectly match the
requirements of the application, making it a highly customisable yet cost effective solution. The three
interchangeable control modules provide the basis for the series: the standard AC30V control module, the
AC30P module with a host of advanced connectivity options and the AC30D module which adds dual
encoder system capability.
Differences
AC30V Control Module
The AC30V is the
base drive for standalone applications. Much more than a basic pump and fan drive its program can be modified with
our easy to use “Parker Drive Quicktool” (PDQ) to match your exact requirements. The completed application program
can then be downloaded multiple times using a simple SD card. With full access from any network via its own IP
address the drive can be fully integrated into any automation system via the single, top-mounted ethernet port.
AC30P Control Module
Supporting latest developments in the “Internet of things” and employing principles discussed in Industry 4.0 the
AC30P is fully
equipped with Profinet, Ethernet IP and Modbus TCP/IP via dual Ethernet ports. Using the full range of our software
tools this allows more advanced applications including multiple drive configurations. Plug in via one port and
access multiple drives supported by 1588 time synchronised peer to peer communication.
AC30D Control Module
The AC30D module
gives you the great features of the AC30P as well as additional
built in terminals to allow dual encoder inputs and an encoder output. This gives “system Board” functionality to
the AC30 allowing
“electronic line shaft” capability so with this control module we can offer phase locking between drives and
register control. This also frees up the I/O plug in slot to allow for even more I/O to be added if needed.
System Design - Power
Common DC Bus System (supply from a single drive)
Common DC bus system using a standard (710) inverter to supply the DC link. This design allows power sharing
between drives, limiting the need for braking resistors. The power of the drives on the DC bus must not exceed
double the power of the supply drive. In all common DC systems the braking between drives is synchronised allowing
brake resistors to be added to one or more drives to best fit the requirements of the application.
Common DC Bus System (supply to all drives)
Common DC bus system using a standard (710) inverter with DC bus connection to all drives. This design allows power
sharing between drives, limiting the need for braking resistors. Consideration is needed to include input chokes
which can be required on each drive to balance the input currents between drives.
Common DC Bus System (Active Front End - AFE)
Common DC bus system using a 710 or 740 power stack and AC30P / D control modules
to act as the AFE supply unit. The AFE must have the correct LCL filter to provide a pulse width modulated (PWM)
controlled IGBT converter solution to allow bi-directional power flow to the AC line. The AFE is designed for
applications with a high level of regeneration into the mains supply as no energy is wasted into braking resistors.
The AFE solution also provides low harmonics, unity power factor and can provide voltage boost.
Common DC Bus System (regenerative supply)
Common DC bus system using a 380 line regen supply unit for cost sensitive applications where low harmonic
performance is not required. The line regen unit is a compact and cost effective solution for DC supply to any
AC30 drive
system.
Efficiency
Simple and effective pump and fan control
Saving energy through speed control
Pumps and fans are widely used throughout industry. Some estimates suggest that a large proportion of these can
be as much as 20% oversized for the application they are used in. When these are operated at a constant speed, a
significant amount of the power consumed by the motor is wasted, costing your company considerable amounts of money
and creating additional CO2 emissions. Matching the speed of pumps and fans to process demands with the AC30V ensures that the
motor will always operate at the optimal speed to deliver just the right amount of air or fluid. This can result in
significant energy savings. A 20% reduction in speed will actually reduce energy consumption by almost 50% and
payback can be achieved in less than 18 months in many cases.
Specification
Technical Specifications - AC30
Electrical Characteristics
Power Supply
3 x380...480VAC ±10%
Rated Input Frequency
45...65Hz
Maximum Switching Frequency
4kHz up to maximum of 12kHz - de-rating may apply
Overload
150% for 60 s - 180% for 3s
Output Frequency
0...500Hz at 4kHz switching frequency
0...590Hz 0...1000Hz at 8kHz switching frequency
0...1500Hz at 12kHz switching frequency*
Earth Leakage Current
>10mA (all models)
Environmental Characteristics
Temperature Range
0...+40°C Normal Duty, 0...+45°C Heavy Duty. Derate up to a maximum of +50°C
Humidity
Maximum 85% relative humidity at 40°C non-condensing
Vibration
Test Fc of EN60068-2-6 10Hz<=f<=57Hz sinusoidal 0.075mm amplitude 57Hz<=f<=150Hz sinusoidal 1g 10
sweep cycles per axis on each of three mutually perpendicular axis
Altitude
1000m ASL. Derate output by 1% per 100m to a maximum of 2000m
Protection Degree
Pollution degree II (non-conductive pollution, except for temporary condensation) for control electronics
Pollution Degree III (dirty air rating) for through-panel mounted parts
Chemically Active Substances
For the standard product, compliance with EN60271-3-3 is:
• Both classes 3C3 and 3C4 for Hydrogen Sulphide gas (H2S) at a concentration of 25ppm for 1200hours
• Both classes 3C1 (rural) and 3C2 (urban) for all 9 dened substances as dened in table 4
