EMAS Multipole Selector Switch - B100T20 - 90˚ (0-1) - 1 NO

EMAS

Product Code: 18557

CLICK HERE FOR DOWNLOADS BELOW

£6.88

Qty

Ask about this product

Add to Compare

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Next Working Day Delivery is affected by bank holidays,
More Info.

Description Reviews

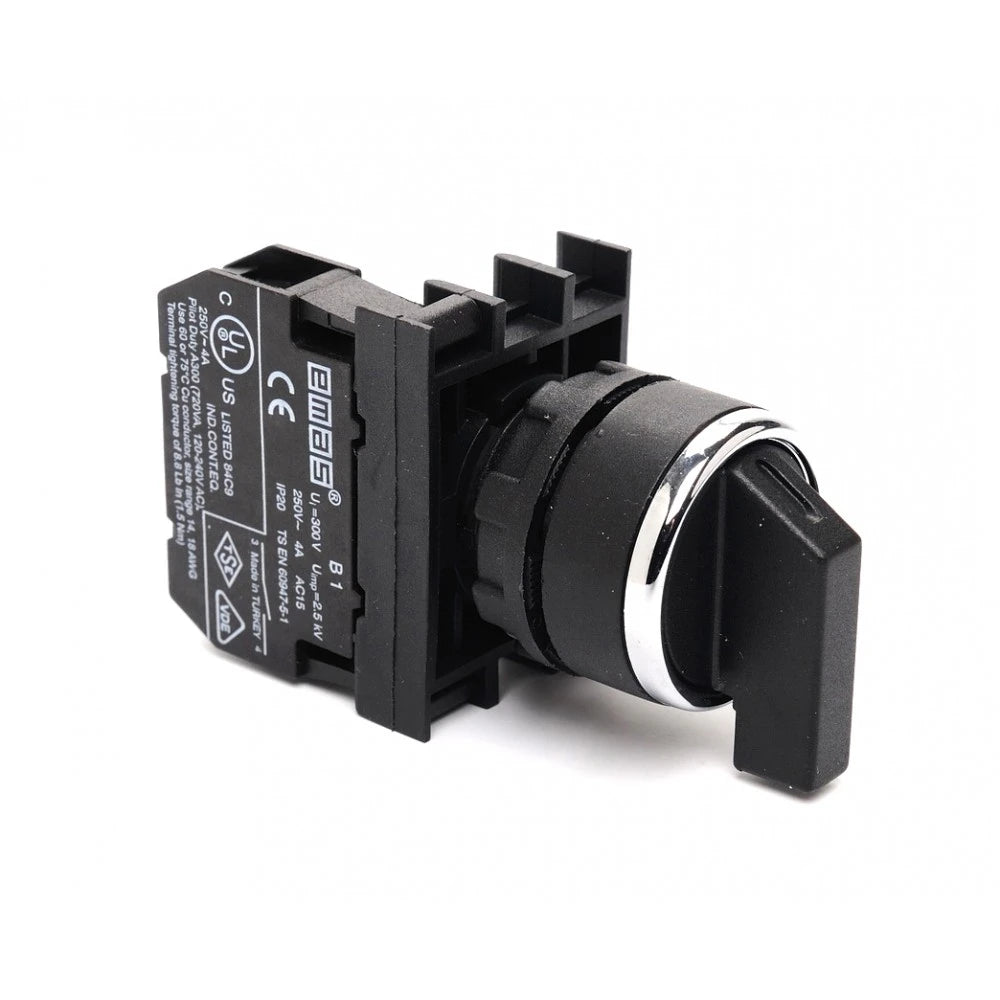

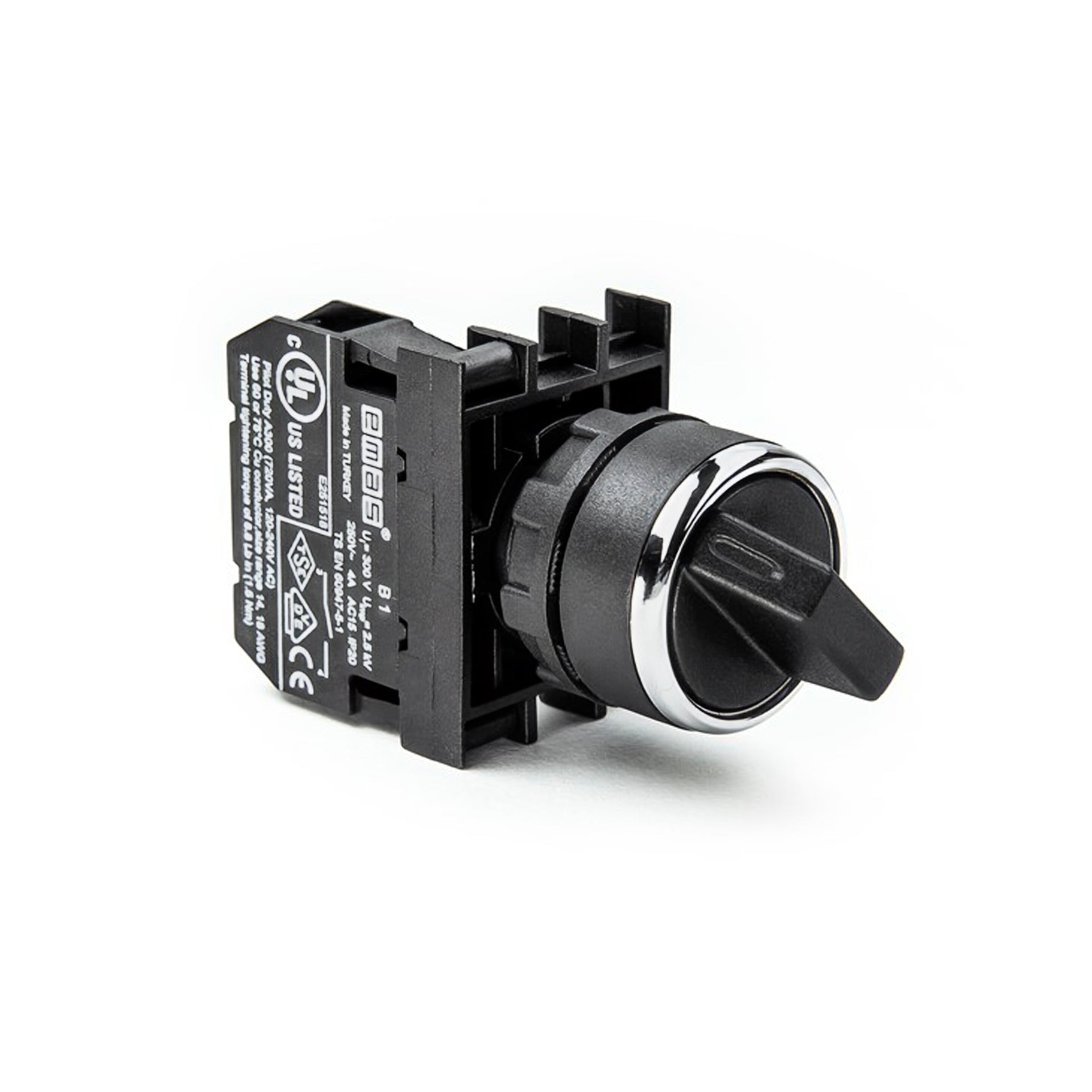

EMAS Round Black Multipole Selector Switch (0-1) - 22mm Diameter - B100T20 - 1 NO

This black selector switch has a contact configuration of 1 ‘NO’ (Normally Open) block.

The EMAS plastic selectors act as a switch and provide a durable solution that can be used in all applications. This black plastic selector switch can be fitted in any 22mm hole. This switch has a 90˚ Degree angle; and two positions: 0-1.

At ACDC Drives, we only use products that we have used and vigorously tested so when you buy from us; you are guaranteed to have the highest quality product for the lowest price.

Non-flammable V0 PA6.6 contact blocks
Various illumination contact blocks availablity
Variety of products for all areas of application

Certificate

Standard

IEC 60947-5-1
TS EN 60947-5-1
UL 508
VDE 0660

Certificate (Contact Block)

Technical Specifications:

Feature	Detail
Product	Control Unit
Model	Selector
Type	Stay Put
Label/Position	(0-I) 90°
Contact	1NO
Dia	22 mm
Current (Ie)	4 A (250V AC)
Usage Category	AC 15
Mechanical Life (Min Qty)	500000
Electrical Life (Min Qty)	100000
Operating Frequency (On-Off/Hour)	Mech. 3000 Elec. 1200
Insulation Voltage (Ui)	300V
Impulse Withstand Voltage (Uimp)	2.5 kV
Dielectric Strength (Body-Contact)	2.500V AC
Dielectric Strength (Contact-Contact)	1.500V AC
Isolation Resistance	10 MΩ min. (500V DC)
Operating Temperature	-15 / + 80 °C
Pollution Degree	3
Protection Degree	IP50
Contact Material	AgNi
Cable Section	1.5-2.5 mm²
Screw Torque	1,5 Nm
Short Circuit Breaking Capacity (Ics)	1 kA
Production Time	31.12.1899 00:00:00
Serial	B Series Plastic

Useful downloads

Datasheet | Drawing
