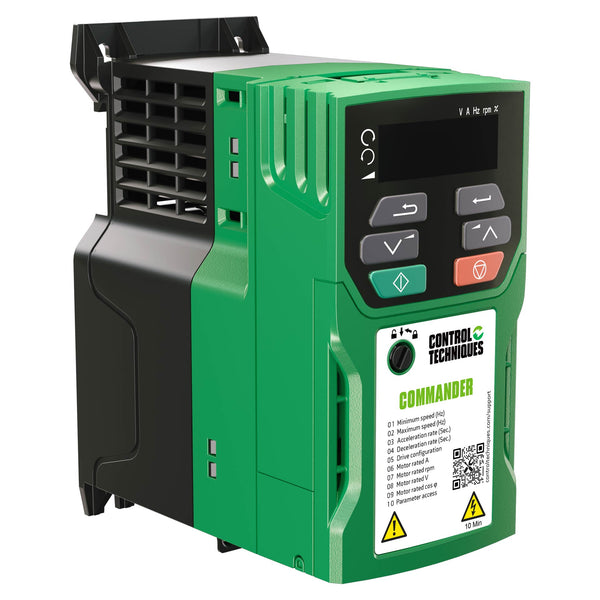

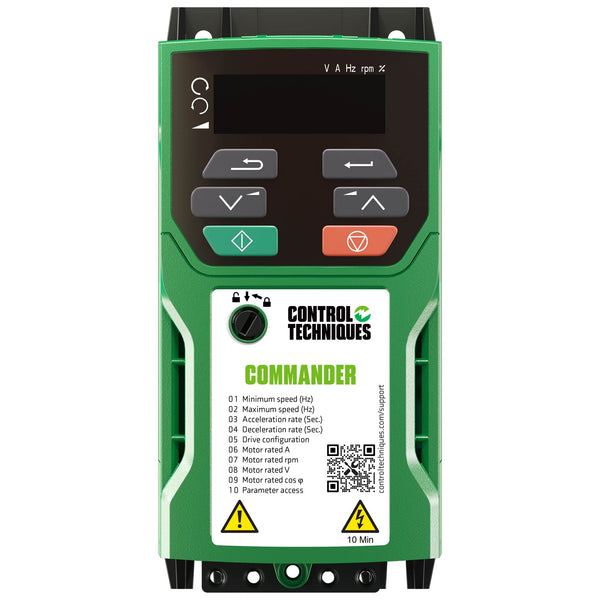

Commander C300 0.75kW AC Inverter (STO) - 3 Phase Input - C300-02400023

Product Code: 15667

Delayed

NB: Please allow for manufacturer lead time, contact us to confirm availability.

£318.64

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

NB: Please allow for manufacturer lead time, contact us to confirm availability.

Control Techniques Commander C 0.75kW 415VAC Input AC Inverter - With Dual Safe Torque Off - C300-02400023

C300 0.75kW Installation

Power Output: 0.75kW | 1.0HP

Input: Three Phase 415VAC

IEC Fuse Class gG: 6A

MCB Rating: 15A

IEC60364-5-52 mm2: Input 1mm | Output 1mm

Frame Size 1 Dimensions



Weight(kg) Width Height Depth
0.75kg 75mm 160mm 130mm

What Is Safe Torque Off (STO)?

Safe Torque Off is a widespread and basic drive-integrated safety function. Its purpose is to stop a motor starting unintentionally by shutting off any torque-generating energy passed on to the motor; this function is monitored internally.

This safety function removes any chances of an unintentional startup which could power up the motor connected at any given time. This is compliant to standards in accordance to EN 61800-5-2.

As a result of the STO function, the drive cannot supply any torque-generating energy. This means the Commander C300 drives can be used wherever the drive needs to be brought to a standstill in a relatively short time; or in circumstances where the motors coasting down period is not relevant to safety, and any other application requiring STO. The C300 also has multiple uses with machines and systems that have moving axes, handling, and conveyor technology to list a few.

Some of the benefits the Commander C300 has due to an integrated STO include the elimination of separate modules that require extra serving, extra wires and more room for failure. The C300 also has a rapid electronic switching time, meaning that a separate module would be slower due to the electromagnetic components having a delay; all the more reason to go for the new Control Techniques developed Commander C300.


Commander C

C300 0.75kW SI I/O

  • 4 x Digital I/O
  • 3 x Analog inputs (default)/Digital Inputs
  • 1 x Digital input
  • 2 x Relays
Commander C

C300 0.75kW Onboard

  • 3 x Analog I/O
  • 5 x Digital I/O
  • 1 x Relay

Commander Inverter Common Features

  • Dual Safe Torque Off for added safety measures in accordance to EN 61800-5-2
  • Commander Drives are amongst the smallest in their class
  • Drives can be fitted side by side to save space

Easy motor pairing and performance control

  • Fixed boost by default for easy set-up
  • – Multi-motor control

  • V/Hz for advanced performance
  • - 100% torque available to 1Hz

    - Slip compensation

    - Square law V/F mode

    - Dynamic V/F mode

    - Auto tune (stationary and rotating)

  • Open Loop Vector
  • Enhanced Open Loop RFC
  • - Closed current loop for greater stability

    - Auto tuning (stationary and rotating)

Commander C

Commander Option Modules

Profibus Module

Profibus

SI-Profibus

Buy Here

Ethercat Module

Ethercat

SI-Ethercat

Buy Here

Ethernet Module

Ethernet

SI-Ethernet

Buy Here

DeviceNet Module

DeviceNet

SI-DeviceNet

Buy Here

ProfiNet Module

ProfiNet

SI-ProfiNet

Buy Here

AI-485 Module

AI-485

AI-485

Buy Here


C200 App

Diagnostic Tool App

All Commander C300 Drives allow access to a simple diagnostic reading app. This allows for the fast resolution of faults and error code reading. The App also includes wiring diagrams for first time setup with links to comprehensive manuals. Available on IOS Android and Microsoft.

Machine Control Interface (MCI)

Machine Control Studio

For advanced applications the Machine Control Studio allows for higher end programming and flexibility of the COmmander drive and its onboard PLC. Utilising the onboard PLC saves on cost and also offers far quicker processing speeds than using a drive with an external PLC unit.

Connect

Connect

Connect is a drive configuration tool for commissioning, optimising and monitoring drive/system performance using windows environments. The Connect tool allows the user to optimise performance of the drive with minimal effort and knowledge.


Need help setting up your C300?

The Commander Series of drives include a QR code on the inside of the front cover which will quickly take you to drive-setup.com. Here you will find online setup manuals and quick start guides in PDF form and video.

C300 Set Up
