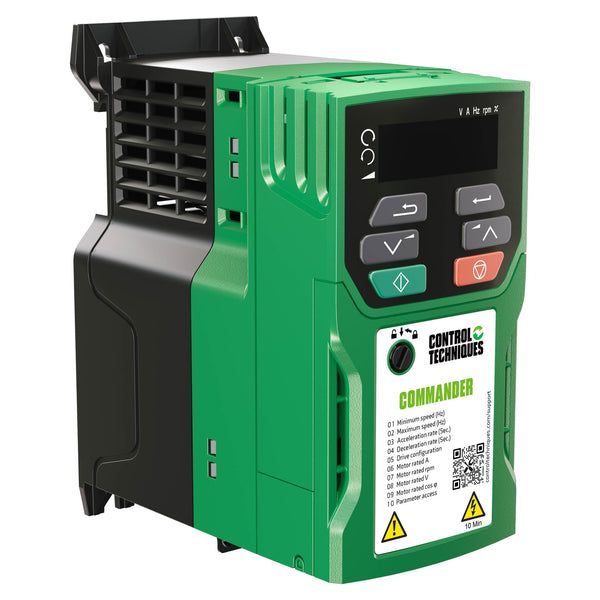

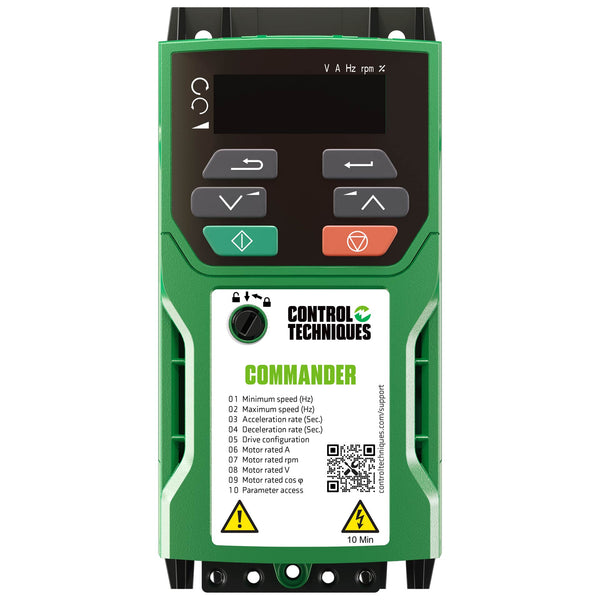

Control Techniques Commander C 0.37kW 415VAC Input AC Inverter - With Dual Safe Torque Off - C300-02400013
C300 0.37kW Installation
Power Output: 0.37kW | 0.50HP
Input: Three Phase 415VAC
IEC Fuse Class gG: 6A
MCB Rating: 15A
IEC60364-5-52 mm2: Input 1mm | Output 1mm
Frame Size 1 Dimensions
Weight(kg)
Width
Height
Depth
0.75kg
75mm
160mm
130mm
What Is Safe Torque Off (STO)?
Safe Torque Off is a widespread and basic drive-integrated safety function. Its purpose is to stop a motor starting unintentionally by shutting off any torque-generating energy passed on to the motor; this function is monitored internally.
This safety function removes any chances of an unintentional startup which could power up the motor connected at any given time. This is compliant to standards in accordance to EN 61800-5-2.
As a result of the STO function, the drive cannot supply any torque-generating energy. This means the Commander C300 drives can be used wherever the drive needs to be brought to a standstill in a relatively short time; or in circumstances where the motors coasting down period is not relevant to safety, and any other application requiring STO. The C300 also has multiple uses with machines and systems that have moving axes, handling, and conveyor technology to list a few.
Some of the benefits the Commander C300 has due to an integrated STO include the elimination of separate modules that require extra serving, extra wires and more room for failure. The C300 also has a rapid electronic switching time, meaning that a separate module would be slower due to the electromagnetic components having a delay; all the more reason to go for the new Control Techniques developed Commander C300.
C300 0.37kW SI I/O
4 x Digital I/O
3 x Analog inputs (default)/Digital Inputs
1 x Digital input
2 x Relays
C300 0.37kW Onboard
3 x Analog I/O
5 x Digital I/O
1 x Relay
Commander Inverter Common Features
Dual Safe Torque Off for added safety measures in accordance to EN 61800-5-2
Commander Drives are amongst the smallest in their class
Drives can be fitted side by side to save space
Easy motor pairing and performance control
Fixed boost by default for easy set-up
– Multi-motor control
V/Hz for advanced performance
- 100% torque available to 1Hz
- Slip compensation
- Square law V/F mode
- Dynamic V/F mode
- Auto tune (stationary and rotating)
Open Loop Vector
Enhanced Open Loop RFC
- Closed current loop for greater stability
- Auto tuning (stationary and rotating)
Commander Option Modules
Profibus Module
SI-Profibus
Buy Here
Ethercat Module
SI-Ethercat
Buy Here
Ethernet Module
SI-Ethernet
Buy Here
DeviceNet Module
SI-DeviceNet
Buy Here
ProfiNet Module
SI-ProfiNet
Buy Here
AI-485 Module
AI-485
Buy Here
Diagnostic Tool App
All Commander C300 Drives allow access to a simple diagnostic reading app. This allows for the fast resolution of faults and error code reading. The App also includes wiring diagrams for first time setup with links to comprehensive manuals. Available on IOS Android and Microsoft.
Machine Control Studio
For advanced applications the Machine Control Studio allows for higher end programming and flexibility of the COmmander drive and its onboard PLC. Utilising the onboard PLC saves on cost and also offers far quicker processing speeds than using a drive with an external PLC unit.
Connect
Connect is a drive configuration tool for commissioning, optimising and monitoring drive/system performance using windows environments. The Connect tool allows the user to optimise performance of the drive with minimal effort and knowledge.
Need help setting up your C300?
The Commander Series of drives include a QR code on the inside of the front cover which will quickly take you to drive-setup.com. Here you will find online setup manuals and quick start guides in PDF form and video.
