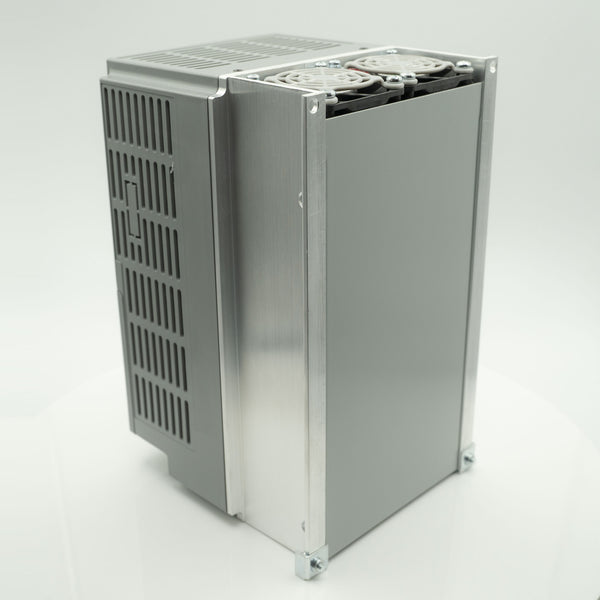

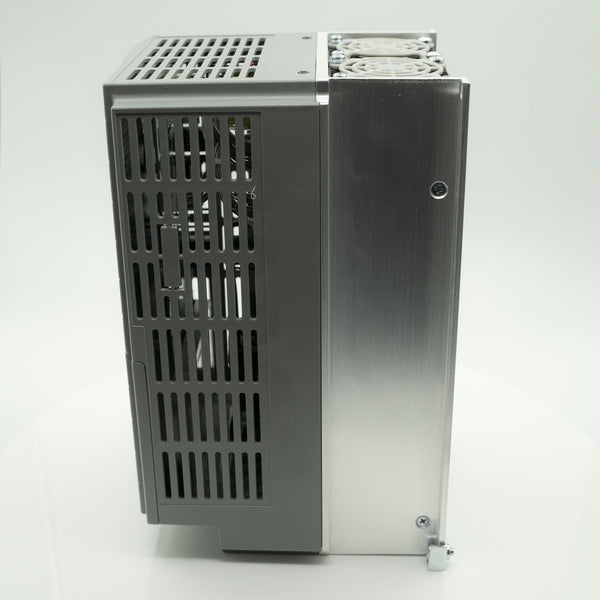

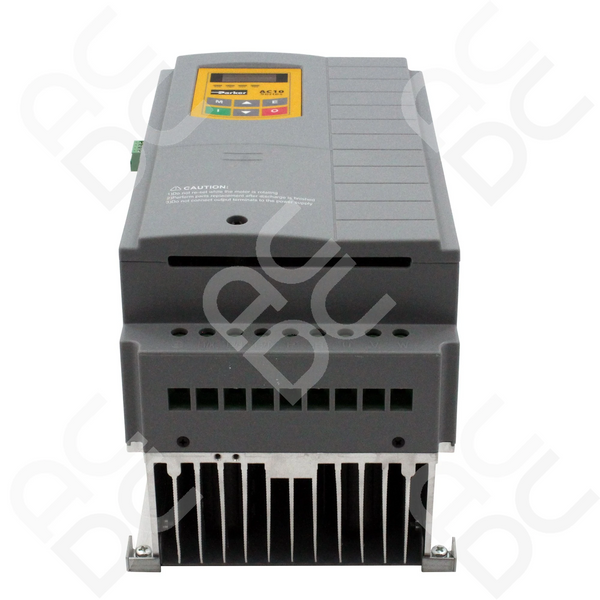

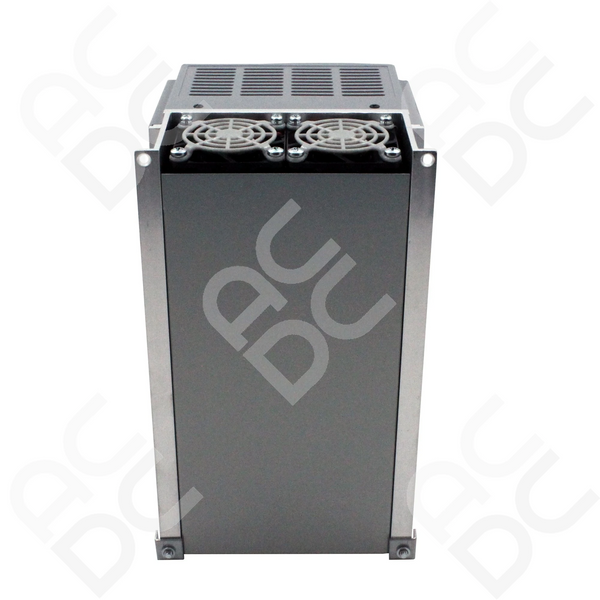

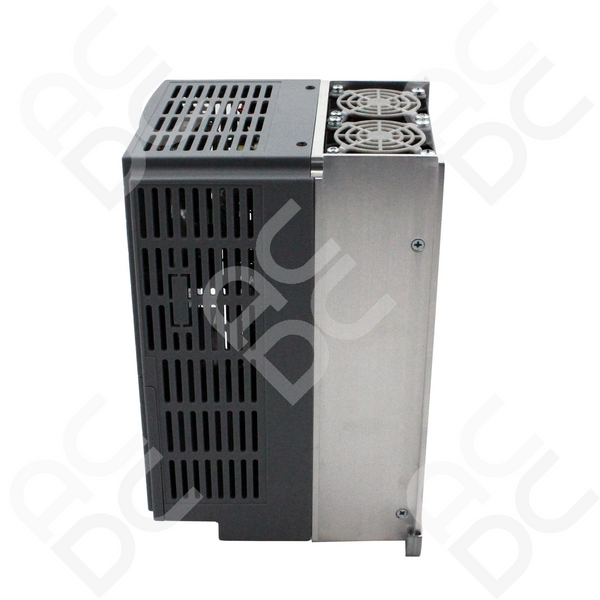

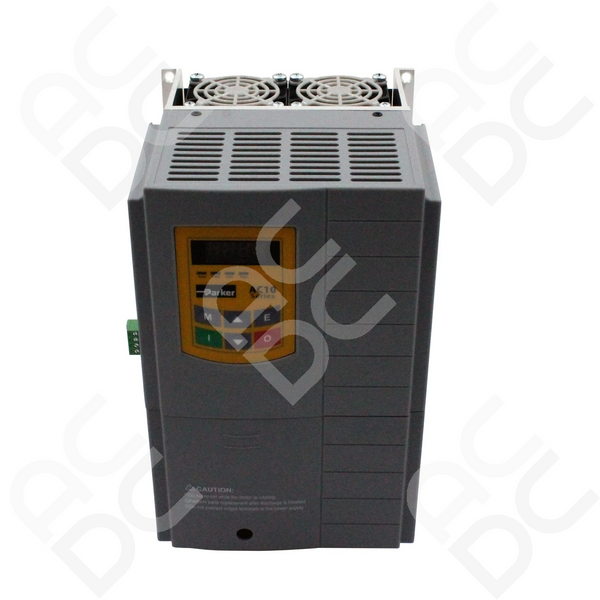

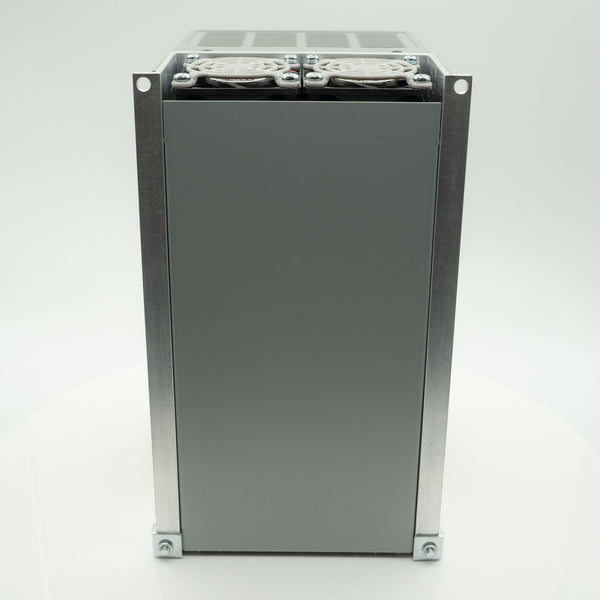

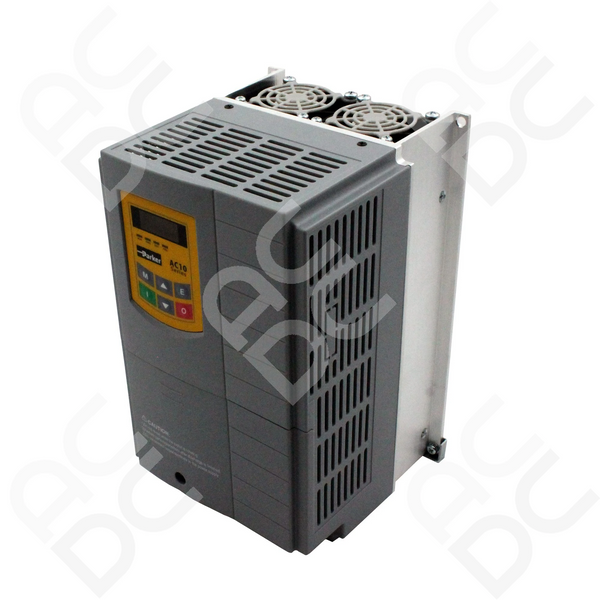

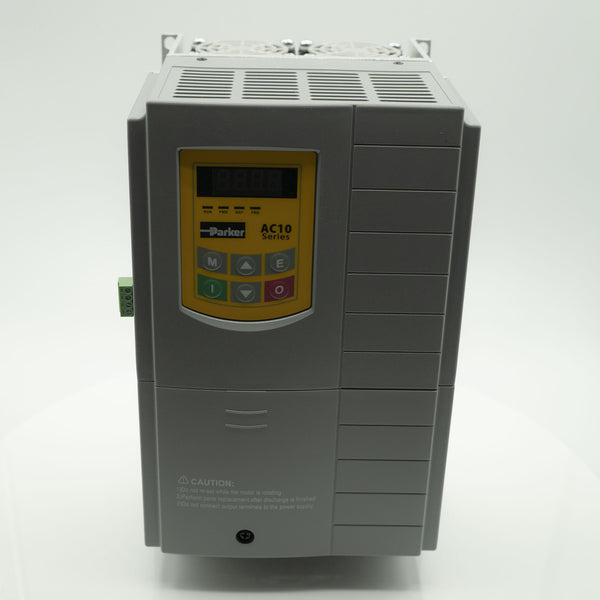

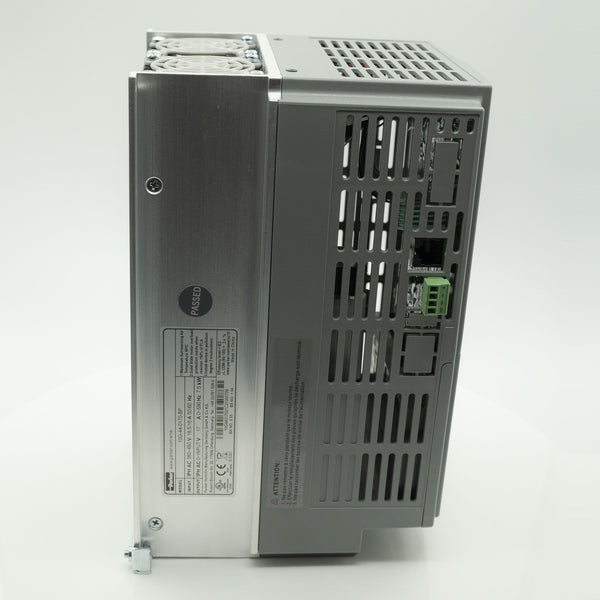

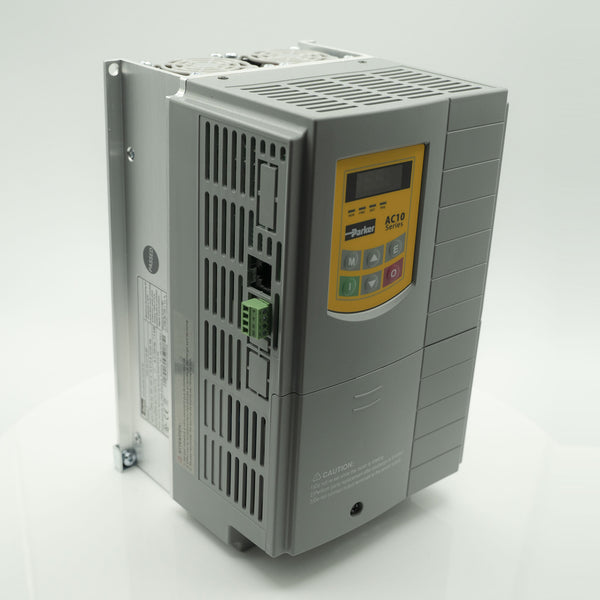

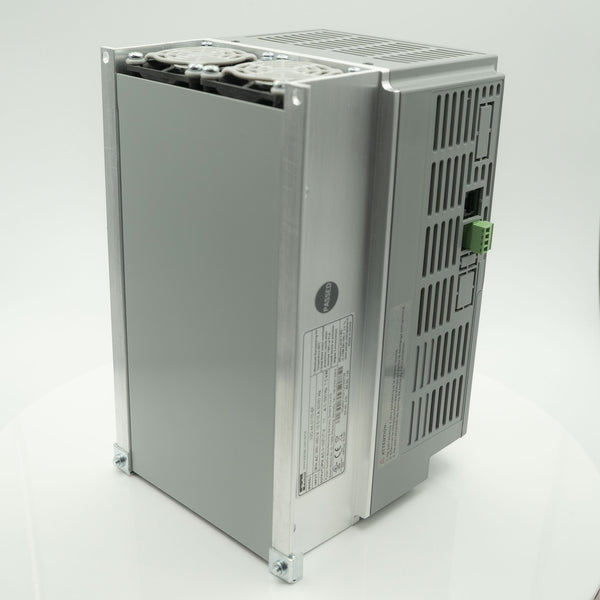

7.5kW Inverter 415VAC 3Ph Parker AC10 - 10G-44-0170-BF
Product Code: 110778
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.
Have a question?
Parker AC10 7.5kW 415VAC Input AC Inverter
AC10 IP20 7.5kW
Power Output: 7.5kW | 10HP
Power Input: Three Phase 415VAC
Input Current: 18.5A
Output Current: 17A
Input Protection Current: 34A
Frame Size 4 Dimensions
AC10 7.5kW Onboard
- 4 x Analog I/O
- 7 x Digital I/O
- 1 x Relay
- Terminals for Modbus
Parker AC10 Features
Proven technology and manufacturing techniques ensure AC10 has been engineered and built to deliver consistently outstanding levels of performance day in, day out ensuring maximum uptime and productivity. Thanks to its conformally coated PCBs, AC10 is able to withstand even the most arduous class 3C3 environment which many other drives in this class would struggle with, allowing you to operate AC10 with the utmost confidence in more applications.
The Parker AC10 7.5kW is designed to reduce the time and effort required to install, setup and commission through its easy to use integrated keypad. Minimal wiring requirements and two easily accessed terminal rails make AC10 fast and simple to install, having you up and running in no time at all. Auto-tuning sensorless vector mode takes AC10 beyond simple V/Hz control allowing users requiring greater dynamic speed or torque control for their application to benefit from the drives enhanced 0.5 % speed and 5 % torque accuracy.
Having compact dimensions and features normally only associated with higher specification drives, including, sensorless vector mode, output frequency up to 590 Hz, 3 phase 480 VAC supplies in all frame sizes and a full 150 % overload at 0.5 Hz for 1 minute, AC10 provides an optimized solution for OEM machine builders looking for a compact, cost-effective, UL listed drive without compromising on performance.
Available as a Kit
If you require a 3 phase motor and an inverter as a combined kit please check out our control kits These kits combine the AC10 Inverter with a Motor and Control Pendant. These kits offer a pre-wired pendant which can be operated remotely.
The 7.5kW Parker AC10 variable speed drive (VSD) is a simple, reliable and economical solution to every-day motor control applications requiring speed or torque control within the power range of 0.25 HP to 250 HP.
Will this drive run from 230v Single Phase?
No, it will not run from a 230v supply, you will require a 415v three phase supply.
Does that mean it will power a Single Phase motor?
No, the Inverter will only work with a 3 Phase motor.
Will the Inverter provide speed control?
Yes, it is set up as standard to provide speed control from the up and down arrows on the keypad. It can also be configured to use a Potentiometer. If you require stop, start, forward, reverse and a Pot, please see our Control Kits.
What is the difference between 'Filtered' and 'Unfiltered'?
The filtered drive will prevent mains spikes from affecting the drive. If you are using this in a non industrial environment where no external protection will be used, we recommend using the filtered variant.
