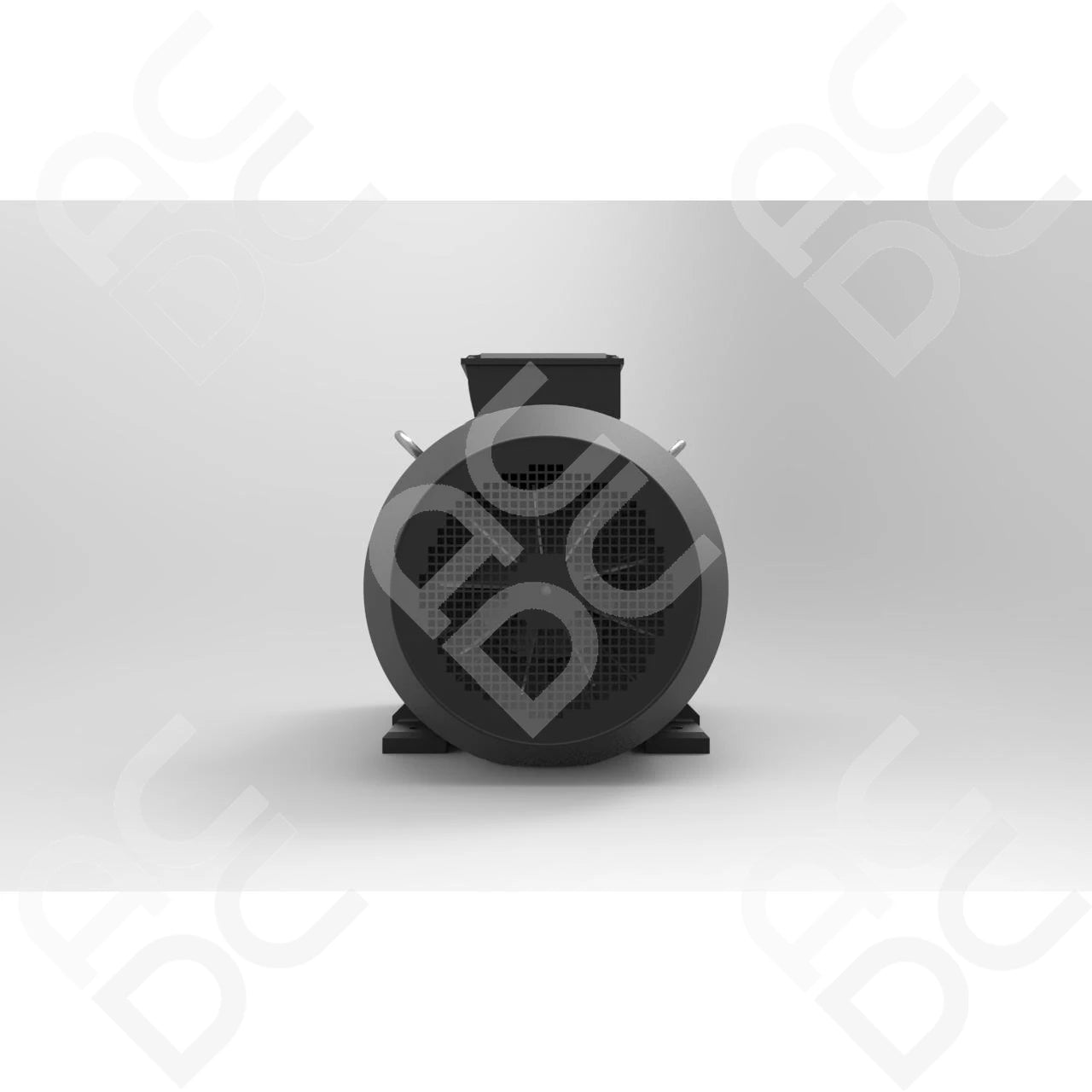

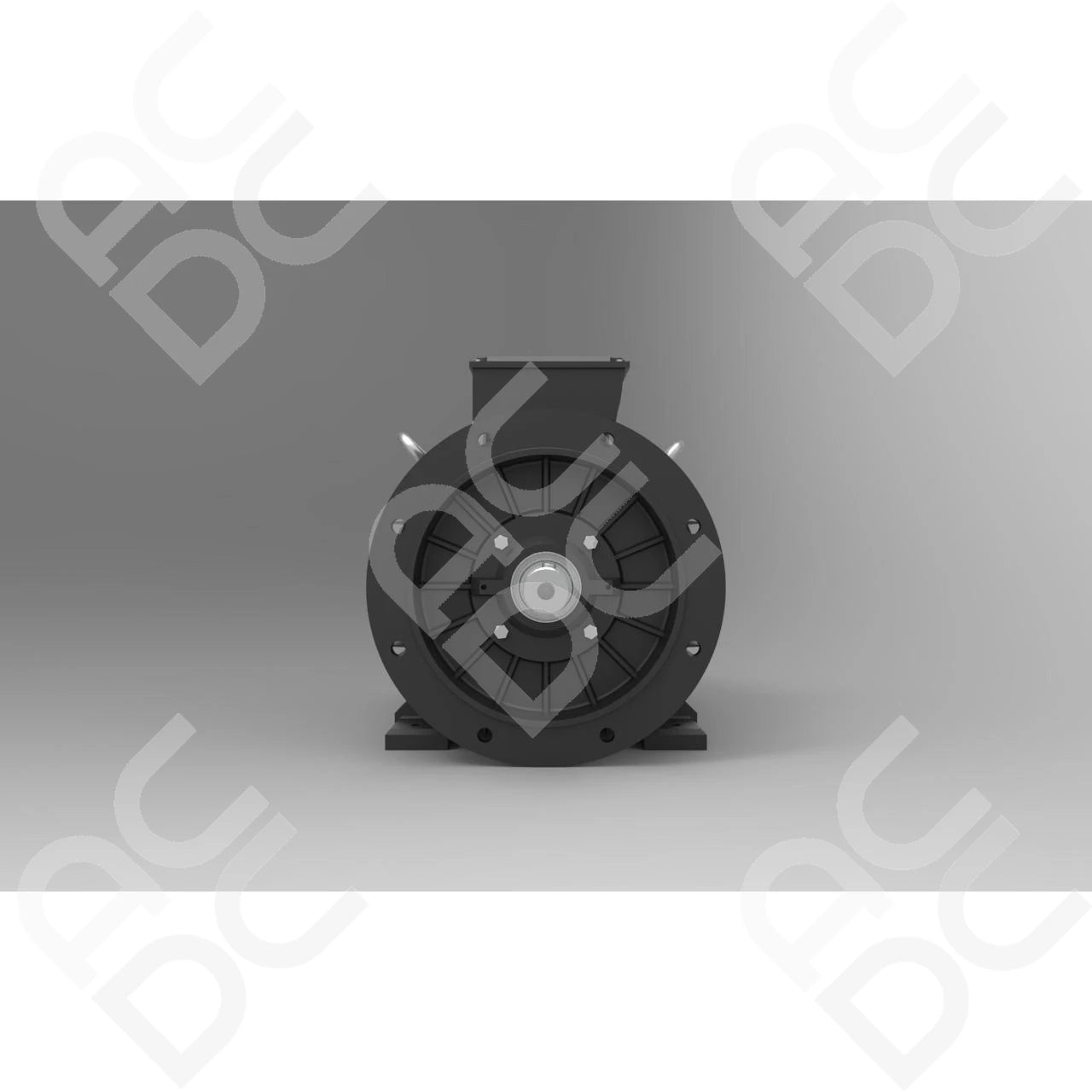

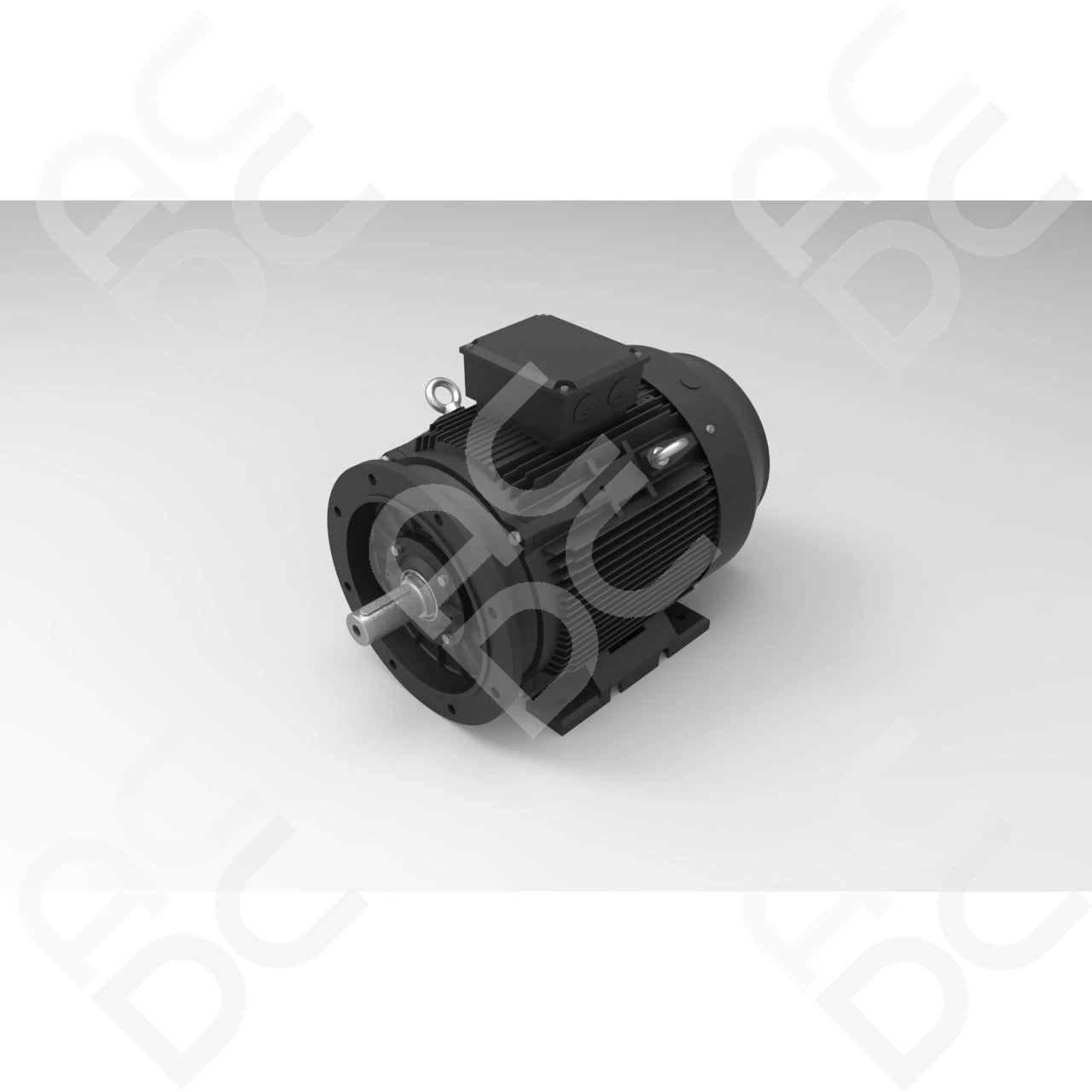

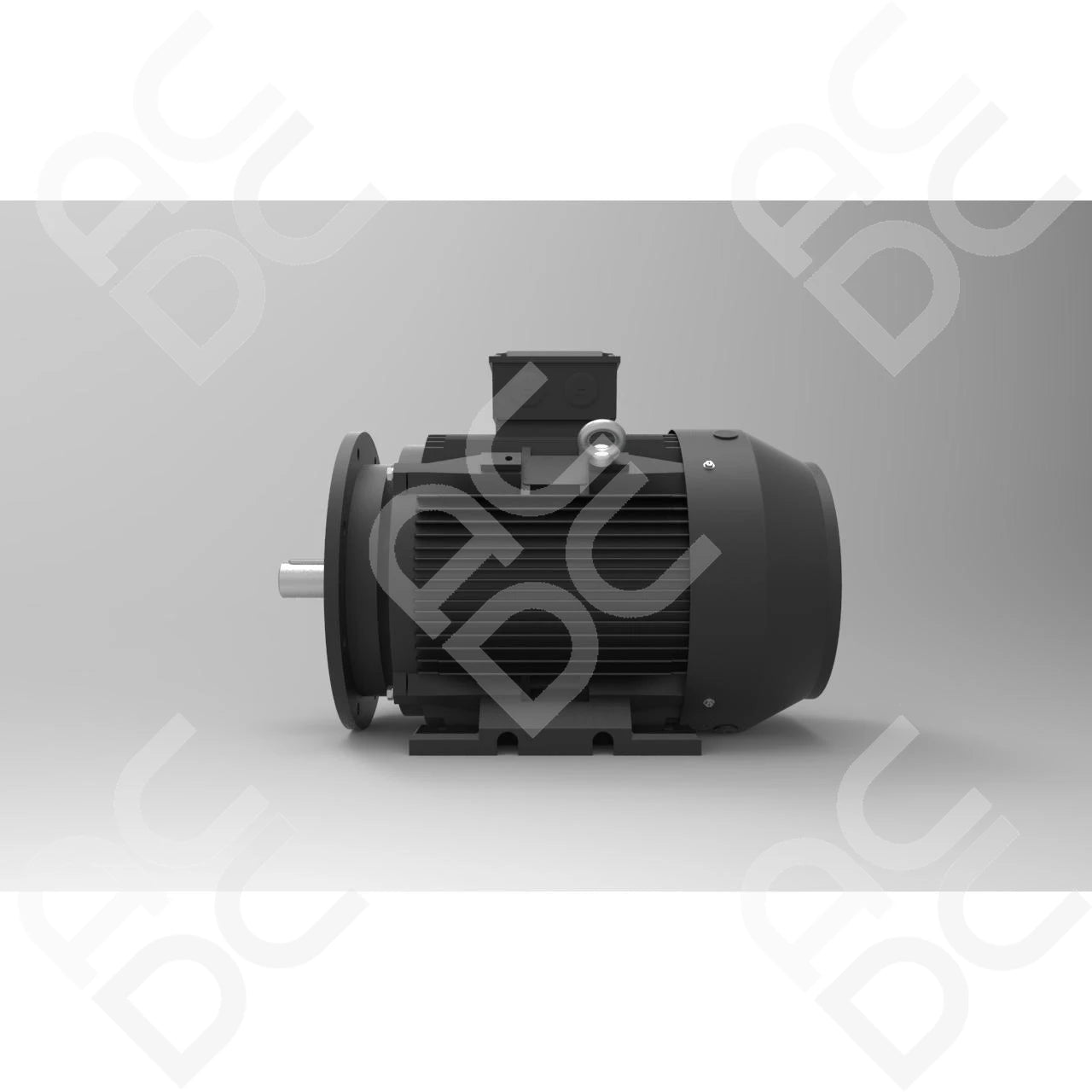

45kW Motor 2P 415V-690V IE3 225 Frame - Cast Iron - TEC - B35

Product Code: 18282



Click here for downloads

£1,889.88

Qty

Ask about this product

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

TEC Motor 45kW - 2 Pole | 225 Frame | B35 Mount | 415V / 690V | 3Ph Supply | IE3 Efficiency | Cast Iron Frame


Motor-Cast-iron-Frame-Icon
Motor-B3-Cast-Icon
Motor-Cast-Voltage-Icon
Motor-RPM-Icon

Motor-Cast-Iron-Frame-Icon
Motor-IE3-Icon
Motor-Inverter-Icon
Motor-ShaftSizes-Icon

Motor Specifications

  • 3 Phase 45kW 2 Pole Cast Iron Motor
  • Mount Type: B35 / Foot and Flange
  • Rotation Speed: 2950 / 3540
  • IP55, according to IEC 60034-5
  • IE3 High Efficiency
  • Class F Insulation
  • Class B Temperature Rise
  • Continuous duty: S1
  • Torque Output:145.7Nm
  • Max Current (Delta):75.93A
  • Max Current (Star):43.84A
  • Efficiency 100%:94
  • Efficiency 75%:94.6
  • Bearing DE: 6313 C3
  • Bearing NDE: 6313 C3
  • Cable Glands: 2x M50 x 1.5
  • Thermal Protection: PTC 140 Degrees C

Motor Dimensions

These IEC sized Motors have multi-mount terminal boxes resulting in a far greater degree of flexibility and adaptability.

Shaft Diameter (B) Keyway Width (A) Shaft Length (C)
55mm 16mm 110mm

Motor External Dimensions

Weight(kg) Width Height Length
369kg 436mm 553mm 809mm

Motor Options:

45kw 2P Motor With Encoder

Do you require absolute speed control for use in a closed loop application with an inverter? We can supply this motor with a pre installed encoder. Just tick the Box above the 'Add To Cart' button and we will do the rest. If this is urgent and requires a fast turn around, please contact us. Standard fitting time is 7 working days.


Motor With Encoder

45kw 2P Motor With Force Vent (415VAC)

If you require a Forced Vent unit with your motor, click the option above and we will supply the correct unit along with your motor. We recommend these if you plan on running at low speed for longer periods. This will require an extra 415 VAC supply. For details on the actual unit, please see this page: Forced Vent 160 Frame 415 VAC


Forced vent unit
