40mm EMAS Emergency Stop Button with LED Label - IP65 - P1EC400E40L

Product Code: 113198



£30.50

Qty

Ask about this product

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

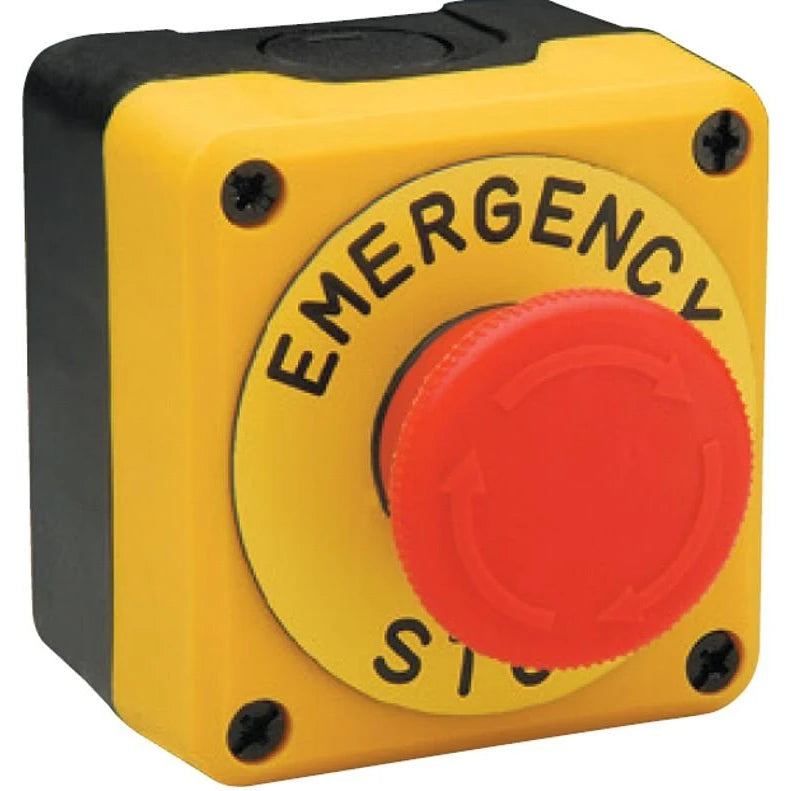

Mushroom Emergency Stop Button Control Box - Red 40mm - P1EC400E40L

EMAS Mushroom buttons are versatile and reliable control solutions designed for a wide range of industrial applications. This particular mushroom button control box is specifically engineered for critical emergency stop functions, providing immediate and secure shut-down capabilities for machinery and processes. It features a prominent 40mm red mushroom head for clear visibility and rapid actuation in emergency situations. The robust design boasts an ingress protection rating of IP65, ensuring complete protection against dust ingress and resistance to low-pressure water jets from any direction, making it suitable for demanding environments.

P1EC400E40L emergency stop button

Technical Specifications:

Feature Detail
Product Type Control Box with Emergency Stop Button
Color Yellow-Black (Box), Red (Button)
Button Diameter 40mm
Rated Current (Ie) 4A (250V AC)
Usage Category AC15
Mechanical Life (Min Qty) 1,000,000 operations
Electrical Life (Min Qty) 100,000 operations
Operating Frequency Mech. 3000 On-Off/Hour, Elec. 1200 On-Off/Hour
Insulation Voltage (Ui) 300 V
Impulse Withstand Voltage (Uimp) 2.5 kV
Dielectric Strength (Body-Contact) 2,500V AC
Dielectric Strength (Contact-Contact) 1,500V AC
Isolation Resistance 10 MΩ (500 V DC)
Operating Temperature -15°C to +80°C
Pollution Degree 3
Protection Degree IP65
Contact Material AgNi (Silver Nickel)
Cable Section 1.5-2.5 mm²
Screw Torque 1.5 Nm
Short Circuit Breaking Capacity (Ics) 1 kA
Series P Series Plastic
Hole Quantity 1 Hole
Components Included Button (BDE), Contact Block (C4BK NC), LED (BET60LED2)
Compatibility Suitable for Ø22 mm buttons
Key Features Strong resistance against mechanical strokes
Standards / Certificates TS EN 60947-5-1, UL 508, VDE 0660

Downloads

Download Datasheet
