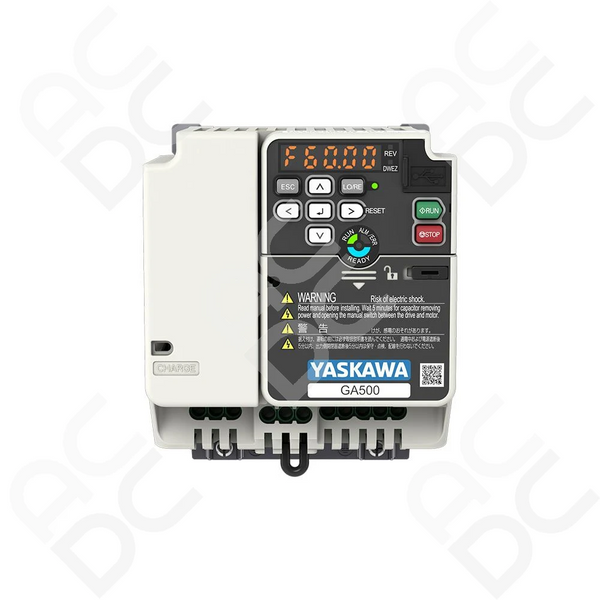

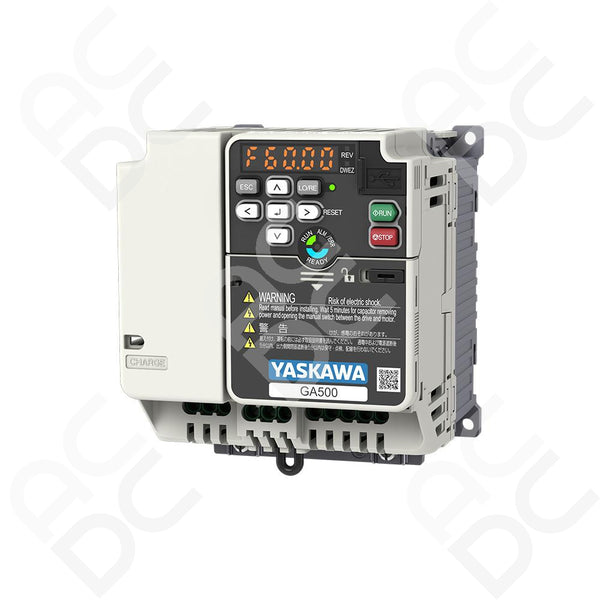

4.0kW Inverter 230VAC 1Ph - Yaskawa GA500 - GA50CB018ABA - With EMC Filter FS23638-40-07

Product Code: 122307

Availability: In stock

£372.00 £304.70

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

4.0kW HD AC Input Inverter Yaskawa GA500

(Includes External EMC Filter FS23638-40-07)

Power Output: 3.0kW  | 5HP

Power Input: Single Phase 230VAC

Output Current: 17.6A

Standard Configuration: Without EMC Filter

IP Rating: IP20

Ambient Temperature -10 to +50 Degrees

Humidity: 95% RH or less (non-condensing)

Altitiude: Up to 1000m without derating,up to 4000m with derating

Environmental conditions: IEC 60721-3-3, Class 3C2 (chemical gases), Class 3S2 (solid particles)

Virtual input/output: For connection of I/O functions without physical wiring

Programming Instance: Mini-USB on the front cover; digital operator with Bluetooth® (optional)


Functions:

  • Open Loop Zero Speed and torque control of permanent magnet motors
  • Run Induction, permanent magnet, and synchronous reluctance motors with only one type of drive
  • 590Hz output frequency
  • High switching frequency for silent motor operation
  • Time-saving and hassle free setup of any motor without the need for auto tuning
  • Integrated PID controller with sleep function
  • Automatic main power loss ride through
  • Speed search function for smooth start of coasting motors
  • Braking with over magnetisation for fast stop without braking resistors
  • Energy saving function
  • Automatic restart after failure
  • Overvoltage suppression

Frame Size Dimensions


Weight(kg) Width Height Depth
2.9kg 170mm 128mm 203mm
GA500 Stack

GA500 Stack

Communications Options

CANopen

CC-Link

DeviceNet

EtherCAT

Ethernet IP / Dual -Port

MECHATROLINK-III

Modbus / TCP / Dual-Port

POWERLINK

PROFIBUS-DP

PROFINET

Communication Option Case (For All Options Above)

Standards

CE

UL

cUL

RoHS

REACH


Control Inputs

7 digital (sink/source)

2 analog (current/voltage)

1 pulse (HTL, max. 32 kHz)

24 VDC power supply

GA700 Multiple

Control Outputs

1 relay

2 photo coupler

1 pulse (HTL, max 32 kHz)

1 analog
