Commander S100 Control Techniques AC Inverter Drive Three Phase (3PH) 400VAC
Supply voltage: 380/480 VAC ±10%. All models listed have a built-in C3 EMC filter. For C1 filtered variants, please contact us.
Please note that S100-03413-0A0000 & S100-03423-0A0000 are frame 3 dimensions
Heavy duty
Overall Dimensions (±0.5mm)
Mounting Dimensions (±0.5mm)
Model Code
Input Phase
Frame Size
Max Continuous Current (A)
Motor Shaft Power (kW)
Motor Shaft Power (HP)
Height
Width
Depth
Weight
DIN*
M1
M2
M3
M4
Φ
S100-02413-0A0000
3
2
1.2 A
0.37 kW
0.5 HP
192 mm
68 mm
132 mm
0.8 kg
46 mm
180 mm
45 mm
22.5 mm
22.5 mm
4.8 mm
S100-02423-0A0000
3
2
1.7 A
0.55 kW
0.75 HP
192 mm
68 mm
132 mm
0.8 kg
46 mm
180 mm
45 mm
22.5 mm
22.5 mm
4.8 mm
S100-02433-0A0000
3
2
2.2 A
0.75 kW
1 HP
192 mm
68 mm
132 mm
0.8 kg
46 mm
180 mm
45 mm
22.5 mm
22.5 mm
4.8 mm
S100-02443-0A0000
3
2
3.2 A
1.1 kW
1.5 HP
192 mm
68 mm
132 mm
0.8 kg
46 mm
180 mm
45 mm
22.5 mm
22.5 mm
4.8 mm
S100-02453-0A0000
3
2
3.7 A
1.5 kW
2 HP
192 mm
68 mm
132 mm
0.8 kg
46 mm
180 mm
45 mm
22.5 mm
22.5 mm
4.8 mm
S100-02463-0A0000
3
2
5.3 A
2.2 kW
3 HP
192 mm
68 mm
132 mm
0.8 kg
46 mm
180 mm
45 mm
22.5 mm
22.5 mm
4.8 mm

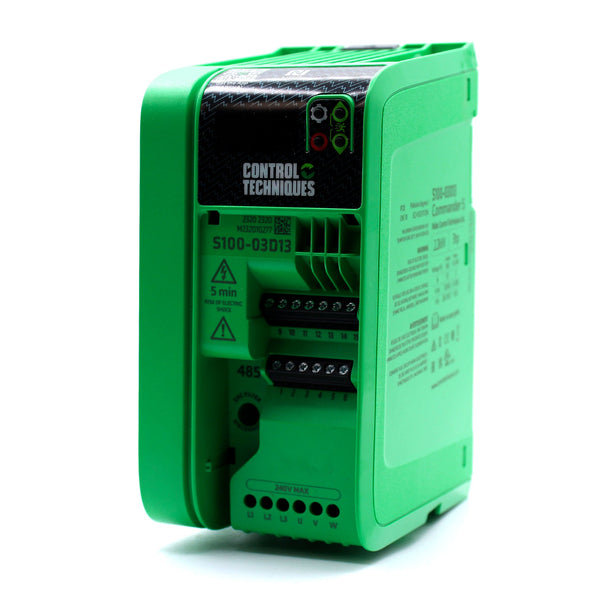

S100-03413-0A0000
3
3
7.2 A
3 kW
3 HP
192 mm
90 mm
132 mm
1.0 kg
46 mm
180 mm
65 mm
37.5 mm
27.5 mm
4.8 mm
S100-03423-0A0000
3
3
8.8 A
4 kW
5 HP
192 mm
90 mm
132 mm
1.0 kg
46 mm
180 mm
65 mm
37.5 mm
27.5 mm
4.8 mm
* No screws are required when mounting the drive onto a DIN rail.
Commander S100 features/benefits:
Cost effective
Intelligent fan control reduces energy usage
Easy integration to automation via the onboard ModbusRTU
These models have a built-in C3 EMC filter. C1 filtered variants, for EMC-sensitive environments such as residential areas, are available - please contact us
