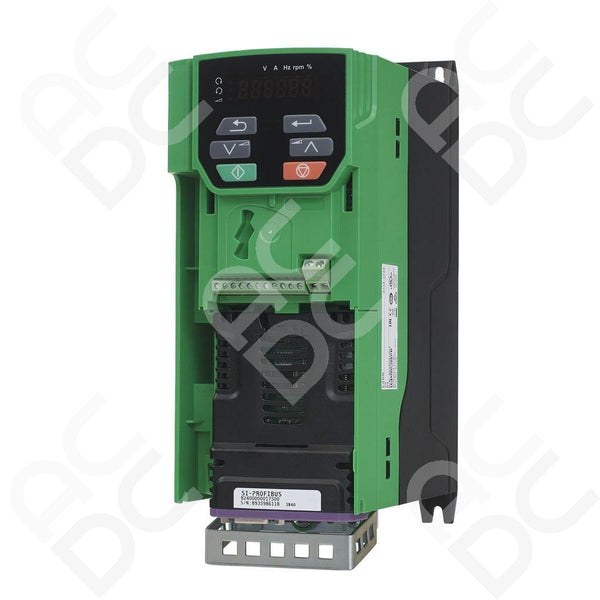

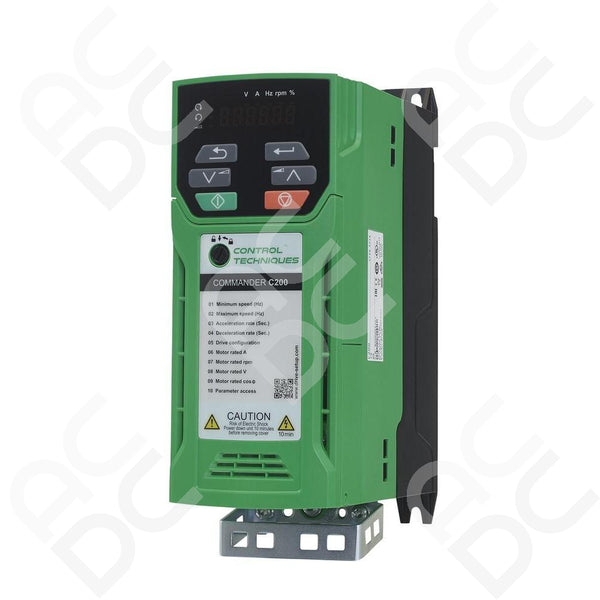

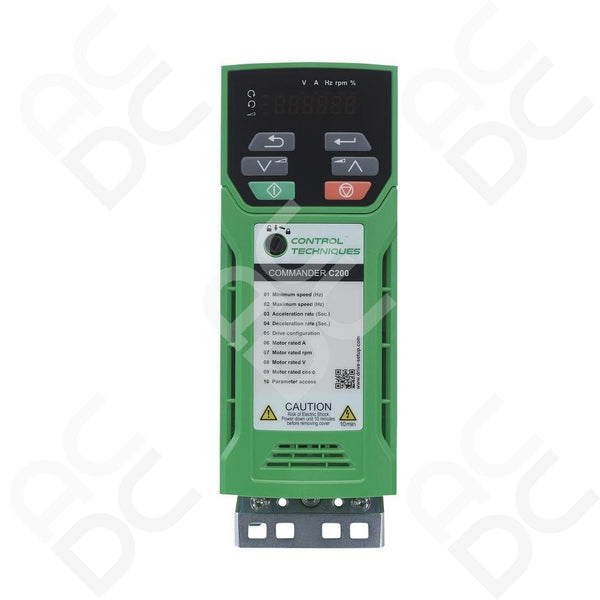

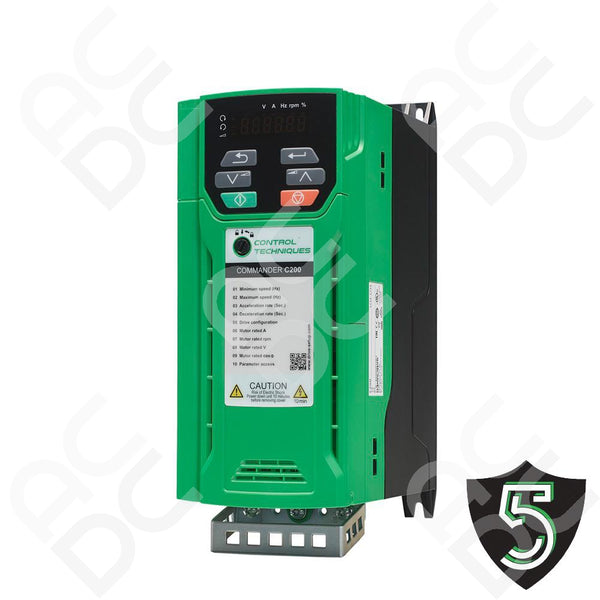

2.2kW Inverter 415VAC 3Ph - Commander C200-03400056

Product Code: 15069



£378.38

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Control Techniques Commander C200 2.2kW 415VAC Input AC Inverter



C200 2.2kW Installation

Power Output: 2.2kW | 3HP

Input: Three Phase 415VAC

IEC Fuse Class gG: 10A

IEC60364-5-52 mm2: Input 1mm | Output 1mm

Frame Size 3 Dimensions



Weight(kg) Width Height Depth
1.5kg 90mm 226mm 160mm

Commander C

C200 2.2kW SI I/O

  • 4 x Digital I/O
  • 3 x Analog inputs (default)/Digital Inputs
  • 1 x Digital input
  • 2 x Relays
Commander C

C200 2.2kW Onboard

  • 3 x Analog I/O
  • 5 x Digital I/O
  • 1 x Relay

Commander Inverter Common Features

  • Commander Drives are amongst the smallest in their class
  • Drives can be fitted side by side to save space

Easy motor pairing and performance control

    • Fixed boost by default for easy set-up

– Multi-motor control

    • V/Hz for advanced performance

- 100% torque available to 1Hz

- Slip compensation

- Square law V/F mode

- Dynamic V/F mode

- Auto tune (stationary and rotating)

    • Open Loop Vector
    • Enhanced Open Loop RFC

- Closed current loop for greater stability

- Auto tuning (stationary and rotating)

Commander C

Commander Option Modules

Profibus Module

Profibus

SI-Profibus

Buy Here

Ethercat Module

Ethercat

SI-Ethercat

Buy Here

Ethernet Module

Ethernet

SI-Ethernet

Buy Here

DeviceNet Module

DeviceNet

SI-DeviceNet

Buy Here

ProfiNet Module

ProfiNet

SI-ProfiNet

Buy Here

AI-485 Module

AI-485

AI-485

Buy Here


C200 App

Diagnostic Tool App

All Commander C200 Drives allow access to a simple diagnostic reading app. This allows for the fast resolution of faults and error code reading. The App also includes wiring diagrams for first time setup with links to comprehensive manuals. Available on IOS Android and Microsoft.

MCI

Machine Control Studio

For advanced applications the Machine Control Studio allows for higher end programming and flexibility of the COmmander drive and its onboard PLC. Utilising the onboard PLC saves on cost and also offers far quicker processing speeds than using a drive with an external PLC unit.

Connect

Connect

Connect is a drive configuration tool for commissioning, optimising and monitoring drive/system performance using windows environments. The Connect tool allows the user to optimise performance of the drive with minimal effort and knowledge.


Need help setting up your C200?

The Commander Series of drives include a QR code on the inside of the front cover which will quickly take you to drive-setup.com. Here you will find online setup manuals and quick start guides in PDF form and video.

Connect

Basic Setup Guides For The C200 Inverter

These video tutorials will assist you in getting the drive configured correctly. They offer a basic overview and several helpful tips.


Commander C200 Inverter Basic Wiring

Control Techniques C200 Wiring Guide

Control Techniques C200 Basic Parameter Guide

Not sure what the various parameters do on the Commander C200? Heres a little Video to help


Compare Similar Commander C200 Drives

Part Number Power Rating Input Voltage Price
C200-02400018 0.55kW 415VAC £257.70
C200-02400023 0.75kW 415VAC £267.24
C200-02400032 1.1kW 415VAC £273.60
C200-02400041 1.5kW 415VAC £305.42
C200-03400056 2.2kW 415VAC £362.68
C200-03400073 3.0kW 415VAC £445.40
C200-03400094 4.0kW 415VAC £468.40
C200-04400135 5.5kW 415VAC £579.02
C200-04400170 7.5kW 415VAC £674.46
C200-05400270 11kW 415VAC £1030.78
C200-05400300 15kW 415VAC £1240.76
C200-06400350 18.5kW 415VAC £1374.38
C200-06400420 22kW 415VAC £1520.72
C200-06400470 30kW 415VAC £1937.49
C200-07400660 37kW 415VAC £2586.50
C200-07400770 45kW 415VAC £2860.10
C200-07401000 55kW 415VAC £3658.64
C200-08401340 75KW 415VAC £4587.62
C200-08401570 90kW 415VAC £5328.89
C200-09402000 110kW 415VAC £5917.46
