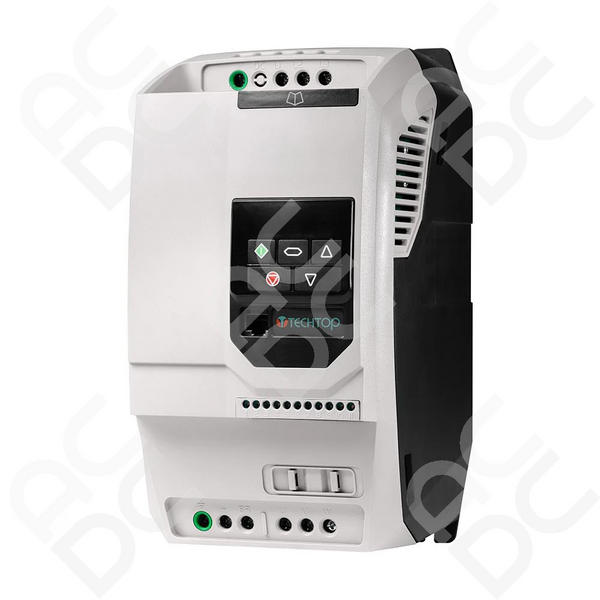

11kW Inverter 415VAC 3Ph - TECDrive
Product Code: 17777
Availability: In stock
Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.
Have a question?
11kW AC Input Inverter TECDRIVE 415VAC 3 Phase
Tec Drive 11kW
Power Output: 11kW | 15HP
Power Input: Three Phase 415VAC
Input Current: 24A
IP20 Open Chassis
Frame Size Dimensions
- 3 x Digital I/O
- 3 x Analog I/O
- 1 x Relay I/O
- Safe Torque Off (STO)
TECDrive Inverters provide one of the most straightforward setup processes of any Inverter Drive. Directly connect the drive to your power supply and the motor you wish to control, and use the one button macro selection to get started; it’s that simple.
Why Choose a TEC Inverter Drive?
TECDrive Inverters have been designed with only 14 parameters, all of which can be accessed via the keypad on the front of the drive, allowing the user easy access to critical features. The built-in Macros allow an alternative setup method and rapid commissioning. The built-in Macros include Industrial, Fan and Pump modes.
Internal Category C1 EMC Filter. An internal filter in every TECDrive saves cost and time for installation. (Cat C1 according to EN61800-3:2004).
11kW TecDrive Inverter
TecDrive inverters have been designed to reduce installation time while increasing efficiency and productivity. With pre-configured parameters and macros, the 11kW TecDrive inverter is one of the most efficient motor controllers to purchase on the market.
The Optistick allows for rapid commissioning of multiple drives with the same parameter settings. It enables copying, backup and restores of drive settings. It also allows for Bluetooth interfacing from a PC running Optitools Studio. We also have IP66 Versions of the full TECDrive range available. Please call the office for details and prices.
Will this drive run from 230v Single Phase?
No, it will not run from a 230v supply, you will require a 415VAC three phase supply.
Does that mean it will power a Single Phase motor?
No, the Inverter will only work with a 3 Phase motor.
Will the Inverter provide speed control?
Yes, it is set up as standard to provide speed control from the up and down arrows on the keypad. It can also be configured to use a Potentiometer. If you require stop, start, forward, reverse and a Pot, please see our Control Kits.
What is the difference between 'Filtered' and 'Unfiltered'?
The filtered drive will prevent mains spikes from affecting the drive. If you are using this in a non industrial environment where no external protection will be used, we recommend using the filtered variant.
