1.5kW - 30kW - 380-500v Parker 890SD Standalone VSD

Product Code: 31165

£995.51 - £3,846.31

Available Options

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

415v 890SD Standalone Drive 1.5kW - 30kW

Select options to suit your application

The 890 SD

AC890SD standalone drives are independent modules with integrated three-phase supply inputs. With a wide range of sizes available, the AC890SD is suitable for every type of application from a small machine to a large industrial high power process line (eg. rolling mill). It is also ideally suited to sectional control such as that found in printing systems.

Download Manual Here

The manual can be downloaded here: AC890 Modular Systems Manual

Parker Product
Parker 890SD

Accessories and Options

NEW Format for 890 Drives

All 890's will now be shipped as bare Drives, no factory fitted modules or options will be available, you will need to order these and fit in whichever format you require before using your drive.

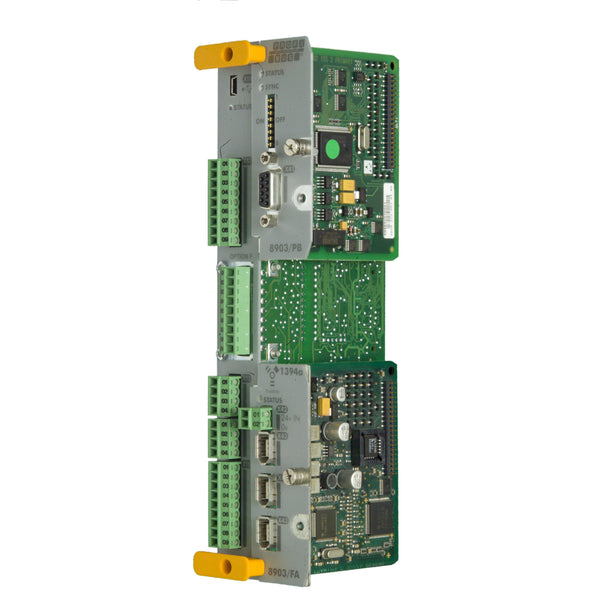

Modules and Accessories

If you require any Communications Modules or I/O Modules please add these to your basket seperately.


Technical Specifications - 890SD Standalone Variable Speed Drive 490v 1.5kW - 30kW

Electrical Characteristics

Operating Temperature 0 ºC to +45 ºC
Storage Temperature -25 ºC to +55 ºC
Enclosure Rating

IP20 - UL (c-UL) Open Type (North America/Canada) Type 1

Suitable for cubicle mount only

Cubicle Installation

The 890 must be installed to EN60204 Standard in the cubicle. For USA, the cubicle shall meet the requirements of UL50.

Humidity Maximum 85% relative humidity at 40 Degrees C non-condensing

The product has been tested to the following specification:

Test Fc of EN60068-2-6

10 Hz<=f<=57 Hz sinusoidal 0.075 mm amplitude

57 Hz<=f<=150 Hz sinusoidal 1 g

10 sweep cycles per axis on each of three mutually perpendicular axis

Atmosphere Non Flammable, non corrosive and dust free
EMC Compatibility CE Marked in accordance with 2004/108/EC


Size and Weight of 890
Frame Sizes
Frame Sizes
