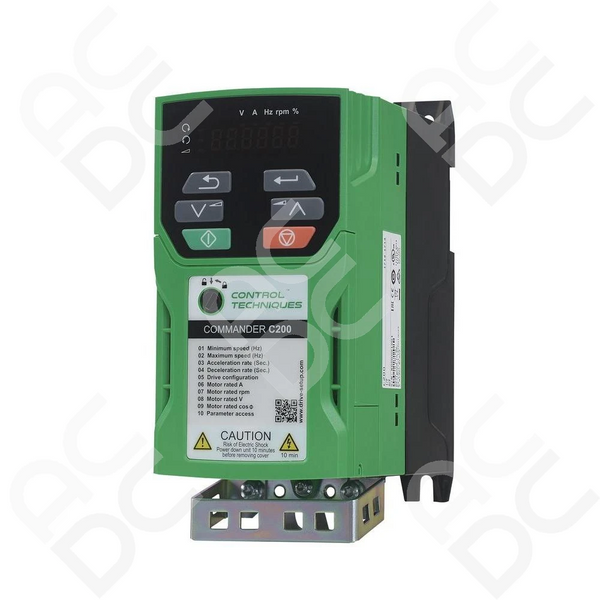

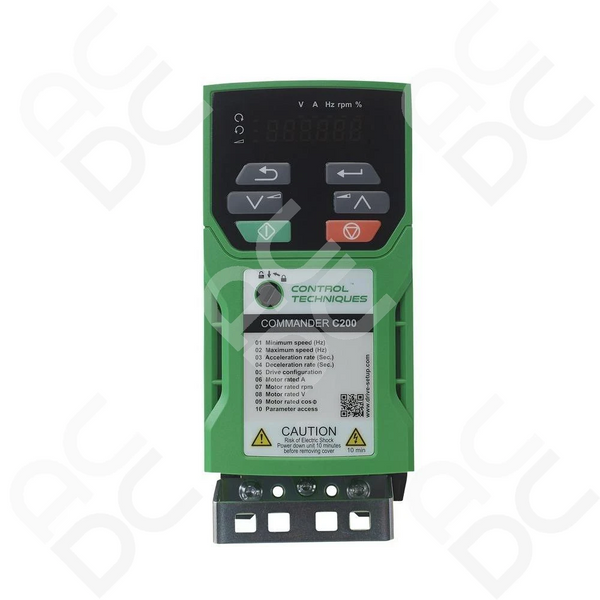

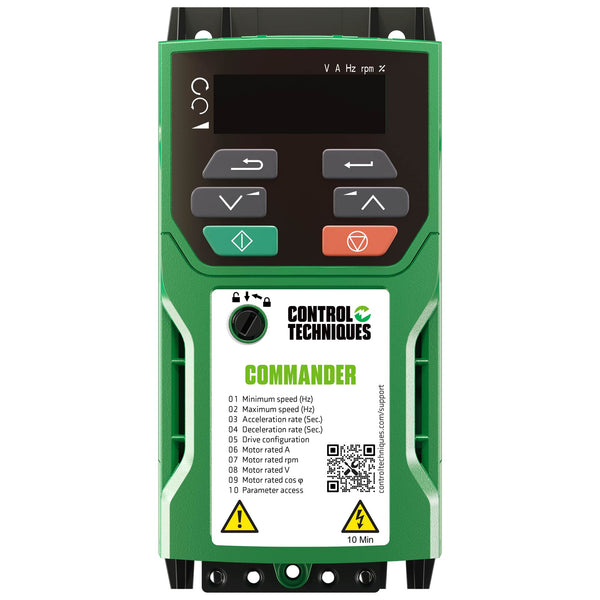

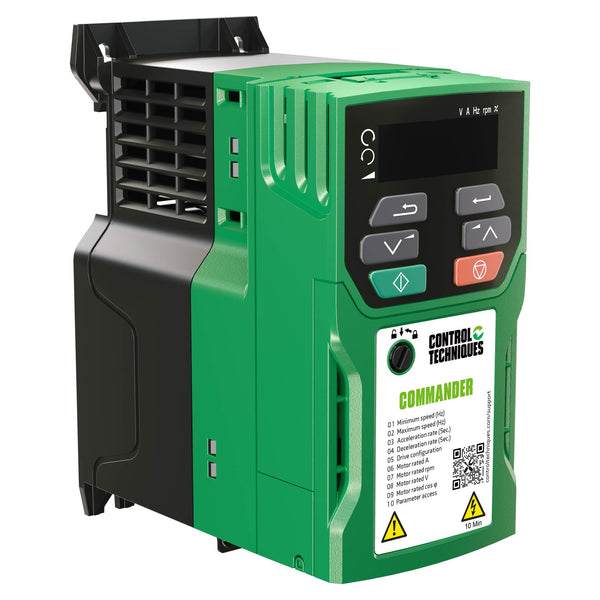

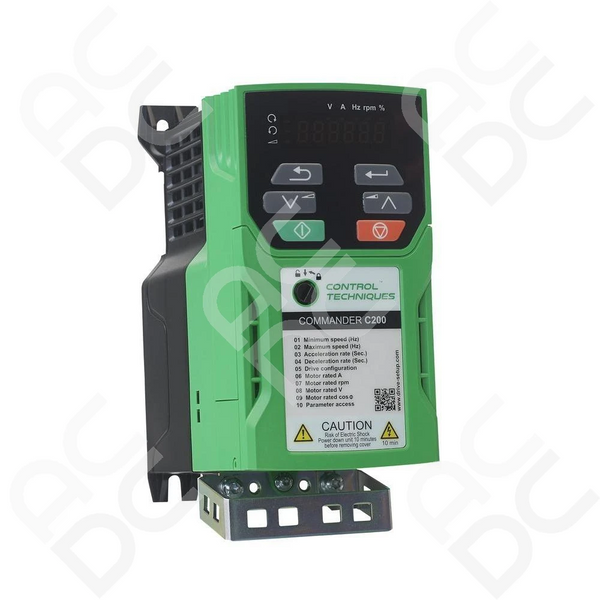

0.75kW Inverter 230VAC 1Ph - Commander C200
Product Code: 15637
Availability: In stock
Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.
Have a question?

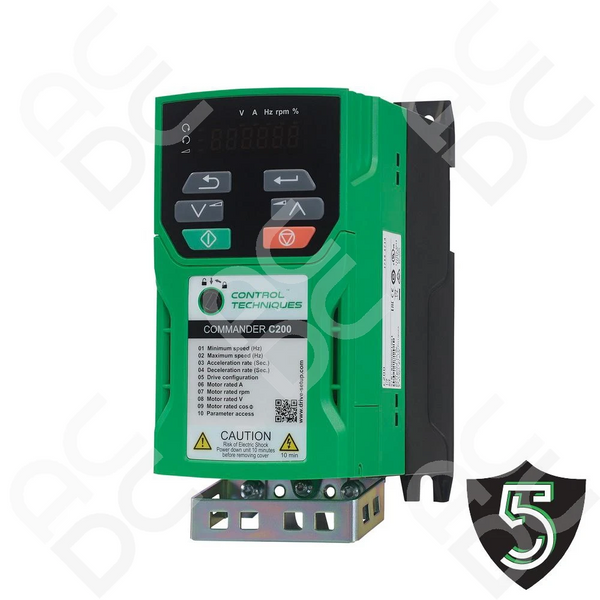

Control Techniques Commander C200 0.75kW 230VAC Input AC Inverter - 5 Year Warranty!
C200 0.75kW Installation
Power Output: 0.75kW | 1.0HP
Input: Single Phase 230VAC
IEC Fuse Class gG: 16A
MCB Rating: 15A
IEC60364-5-52 mm2: Input 1mm | Output 1mm
Frame Size 1 Dimensions
C200 0.75kW SI I/O
- 4 x Digital I/O
- 3 x Analog inputs (default)/Digital Inputs
- 1 x Digital input
- 2 x Relays
C200 0.75kW Onboard
- 3 x Analog I/O
- 5 x Digital I/O
- 1 x Relay
Commander Inverter Common Features
- Commander Drives are amongst the smallest in their class
- Drives can be fitted side by side to save space
Easy motor pairing and performance control
- Fixed boost by default for easy set-up
– Multi-motor control
- V/Hz for advanced performance
- 100% torque available to 1Hz
- Slip compensation
- Square law V/F mode
- Dynamic V/F mode
- Auto tune (stationary and rotating)
- Open Loop Vector
- Enhanced Open Loop RFC
- Closed current loop for greater stability
- Auto tuning (stationary and rotating)
Commander Option Modules
Diagnostic Tool App
All Commander C200 Drives allow access to a simple diagnostic reading app. This allows for the fast resolution of faults and error code reading. The App also includes wiring diagrams for first time setup with links to comprehensive manuals. Available on IOS Android and Microsoft.
Machine Control Studio
For advanced applications the Machine Control Studio allows for higher end programming and flexibility of the COmmander drive and its onboard PLC. Utilising the onboard PLC saves on cost and also offers far quicker processing speeds than using a drive with an external PLC unit.
Connect is a drive configuration tool for commissioning, optimising and monitoring drive/system performance using windows environments. The Connect tool allows the user to optimise performance of the drive with minimal effort and knowledge.
Need help setting up your C200?
The Commander Series of drives include a QR code on the inside of the front cover which will quickly take you to drive-setup.com. Here you will find online setup manuals and quick start guides in PDF form and video.
Basic Setup Guides For The C200 Inverter
These video tutorials will assist you in getting the drive configured correctly. They offer a basic overview and several helpful tips.
Commander C200 Inverter Basic Wiring
Control Techniques C200 Wiring Guide
Control Techniques C200 Basic Parameter Guide
Not sure what the various parameters do on the Commander C200? Heres a little Video to help
