Motor Specifications

Motor Dimensions

Shaft Dimensions

Overall Dimensions

Downloads

• Datasheet

• Dimension Drawing

Running this Motor

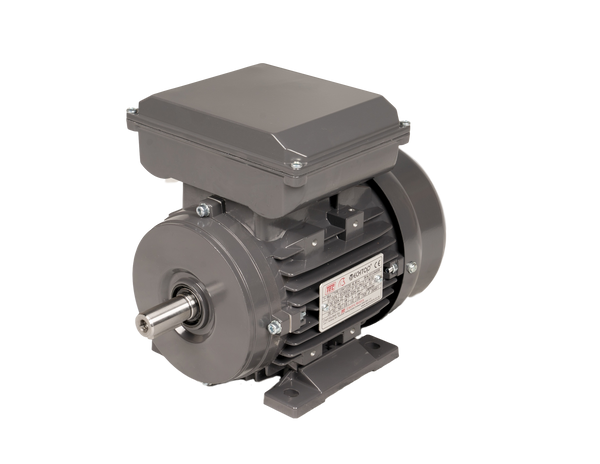

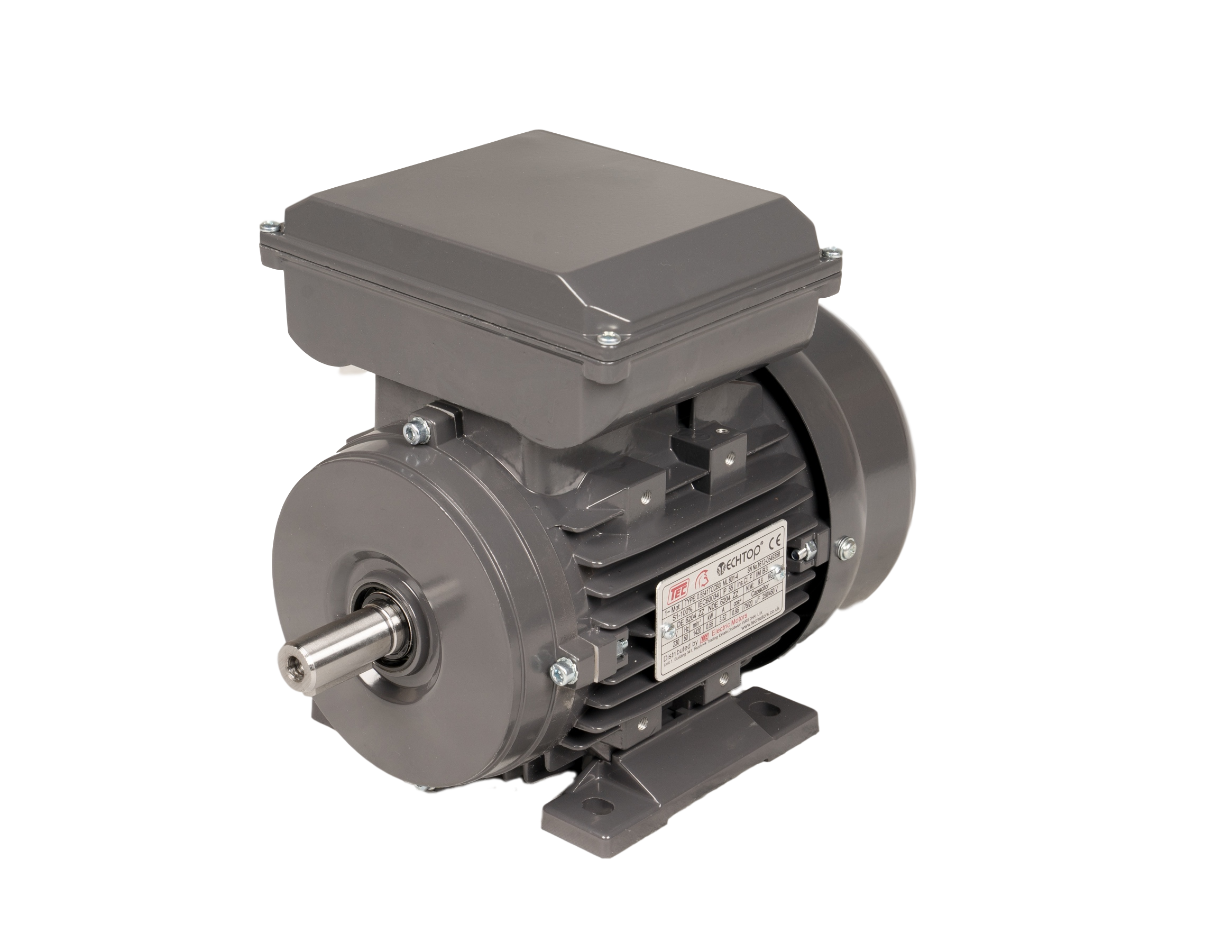

This is a single-phase 230V motor and runs directly from a standard single-phase supply — no inverter or additional starting equipment is required.

It uses a capacitor start, capacitor run (high torque) design, with both a start capacitor and a run capacitor fitted, giving a higher starting torque than a permanent capacitor motor. This makes it suitable for harder-starting loads such as compressors, pumps, augers and conveyors.

Need to vary the speed? Single-phase motors of this type cannot be speed controlled by an inverter. Where speed control is required we recommend a three-phase motor run from a 230V single-phase input inverter: 230V Input Inverters .

Not sure which option you need? Contact us and we will be happy to help.

Not Quite What You Are Looking For?

If you can't find the exact motor you're looking for, contact us and we'd be happy to help.

We can offer motors with a wide range of factory options and environmental treatments, including:

• Compact Frame / High Output Motors
• Forced Ventilation fans
• Gear Motors
• Servo Motors
• Upgraded IP66 Protection Ratings
• Tropicalisation
• ATEX Motors
• Brake Motors
• Custom Windings
• Custom Paint Colours
• Food Safe Coatings
• Three Phase Motors
