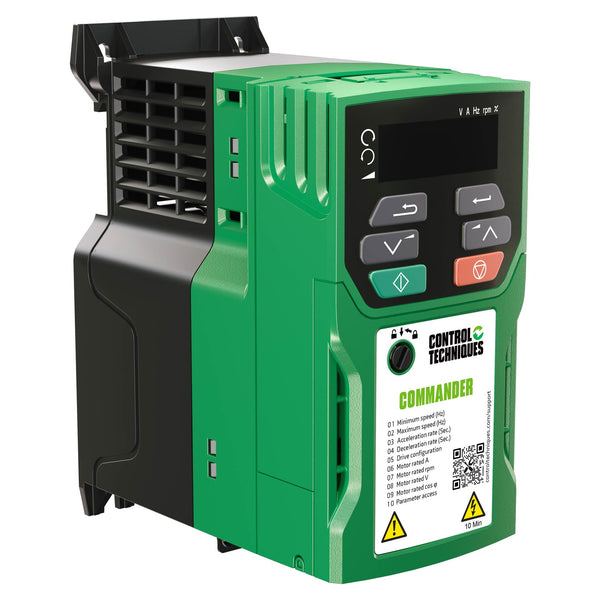

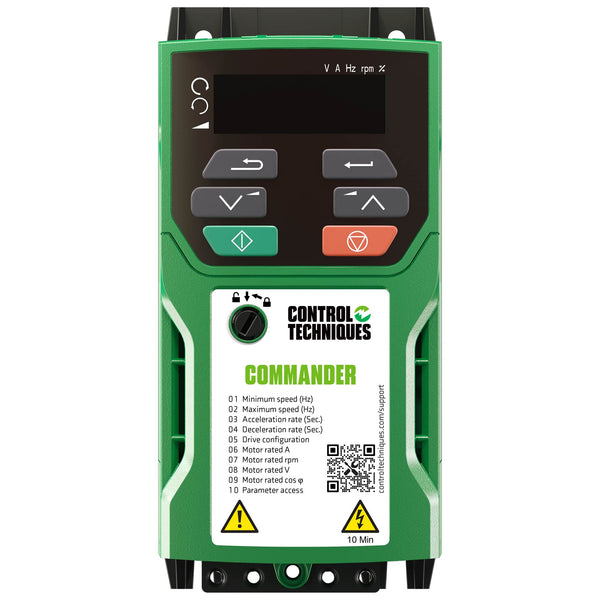

Control Techniques Commander C200 0.37kW 230VAC Input AC Inverter
C200 0.37kW Installation
Power Output: 0.37kW | 0.5HP
Input: Single Phase 230VAC
IEC Fuse Class gG: 16A
MCB Rating: 15A
IEC60364-5-52 mm2: Input 1.5mm | Output 1mm
Frame Size 1 Dimensions
Weight(kg)
Width
Height
Depth
0.75kg
143mm
215mm
130mm
C200 0.37kW SI I/O
4 x Digital I/O
3 x Analog inputs (default)/Digital Inputs
1 x Digital input
2 x Relays
C200 0.37kW Onboard
3 x Analog I/O
5 x Digital I/O
1 x Relay
Commander Inverter Common Features
Commander Drives are amongst the smallest in their class
Drives can be fitted side by side to save space
Easy motor pairing and performance control
Fixed boost by default for easy set-up
– Multi-motor control
V/Hz for advanced performance
- 100% torque available to 1Hz
- Slip compensation
- Square law V/F mode
- Dynamic V/F mode
- Auto tune (stationary and rotating)
Open Loop Vector
Enhanced Open Loop RFC
- Closed current loop for greater stability
- Auto tuning (stationary and rotating)
Commander Option Modules
Profibus Module
SI-Profibus
Buy Here
Ethercat Module
SI-Ethercat
Buy Here
Ethernet Module
SI-Ethernet
Buy Here
DeviceNet Module
SI-DeviceNet
Buy Here
ProfiNet Module
SI-ProfiNet
Buy Here
AI-485 Module
AI-485
Buy Here
Diagnostic Tool App
All Commander C200 Drives allow access to a simple diagnostic reading app. This allows for the fast resolution of faults and error code reading. The App also includes wiring diagrams for first time setup with links to comprehensive manuals. Available on IOS Android and Microsoft.
Machine Control Studio
For advanced applications the Machine Control Studio allows for higher end programming and flexibility of the COmmander drive and its onboard PLC. Utilising the onboard PLC saves on cost and also offers far quicker processing speeds than using a drive with an external PLC unit.
Connect
Connect is a drive configuration tool for commissioning, optimising and monitoring drive/system performance using windows environments. The Connect tool allows the user to optimise performance of the drive with minimal effort and knowledge.
Need help setting up your C200?
The Commander Series of drives include a QR code on the inside of the front cover which will quickly take you to drive-setup.com. Here you will find online setup manuals and quick start guides in PDF form and video.
Basic Setup Guides For The C200 Inverter
These video tutorials will assist you in getting t6he drive configured correctly. They offer a basic overview and several helpful tips.
Commander C200 Inverter Basic Wiring
Control Techniques C200 Wiring Guide
Control Techniques C200 Basic Parameter Guide
Not sure what the various parameters do on the Commander C200? Heres a little Video to help
