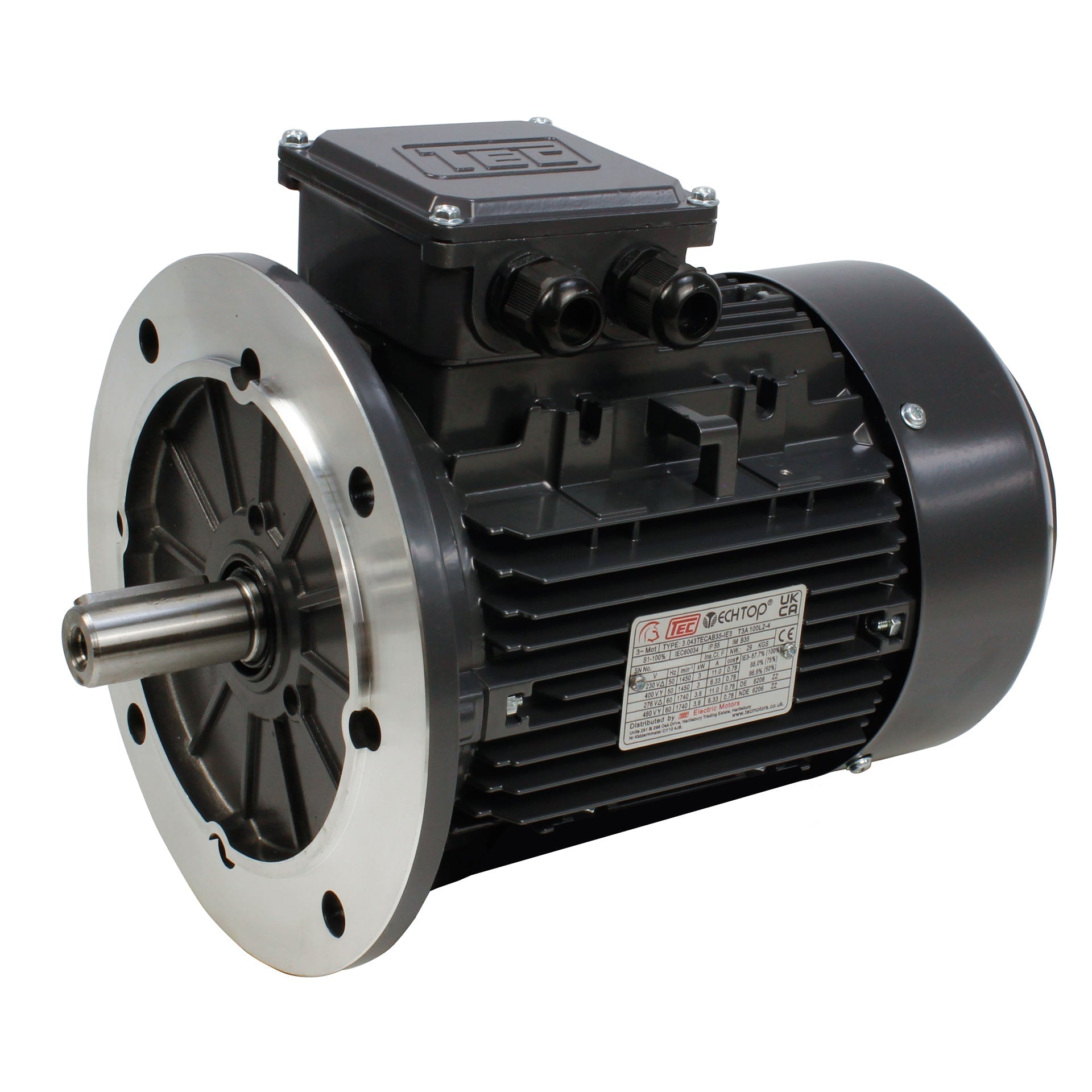

0.12KW Motor 6P 230V-415V IE2 63 Frame - Aluminium - TEC - B5
0.12KW Motor 6P 230V-415V IE2 63 Frame - Aluminium - TEC - B5

0.12KW Motor 6P 230V-415V IE2 63 Frame - Aluminium - TEC - B5

TEC Motors

Product Code: 3M00689



£66.22

Qty

Ask about this product
Add to Compare

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Next Working Day Delivery is affected by bank holidays,
More Info.

DescriptionReviews

TEC Motors | 0.12 kW | 6 Pole | 63 Frame | B5 Mount | 230V/415V | 3PH Supply | IE2 | Aluminium

Motor Specifications

Manufacturer TEC Motors
Motor Type 3 Phase Motor
Power 0.12 kW
Poles 6 Pole
Mount B5
Frame 63 Frame
Construction Aluminium
Efficiency IE2
Voltage 230V/415V
IP Rating IP55

Motor Dimensions

Shaft Dimensions
Shaft Diameter (mm) Keyway Width (mm) Shaft Length (mm)
11 4 23
Overall Dimensions
Weight (Kg) Width (mm) Height (mm) Length (mm)
4.5 140 170 220
PDF Downloads

Downloads

Using this Motor on a Single-Phase Supply

Don't have a 3-phase supply?

This motor can be operated from a standard 230V single-phase supply when paired with a suitable Variable Speed Drive (VSD) or Inverter , which also gives you the added benefit of being able to control the speed of the motor.

You can find our range of single phase inverters here : 230V Input Inverters .

Not sure which inverter you need?

Contact us and we'll be happy to help.

Variable Speed Drives

Not Quite What You Are Looking For?

If you can't find the exact motor you're looking for, contact us and we'd be happy to help.

We can offer motors with a wide range of factory options and environmental treatments, including:

Electric Motors

For more information and support visit our YouTube channel, Technical resources, FAQ and Engineering Calculation Pages.
