0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14
0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14
0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14
0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14
0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14
0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14

0.12KW Motor 2P 230V-415V IE2 56 Frame - Aluminium - TEC - B14

TEC Motors

Product Code: 3M00675



£52.72

Qty

Ask about this product
Add to Compare

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Next Working Day Delivery is affected by bank holidays,
More Info.

DescriptionReviews

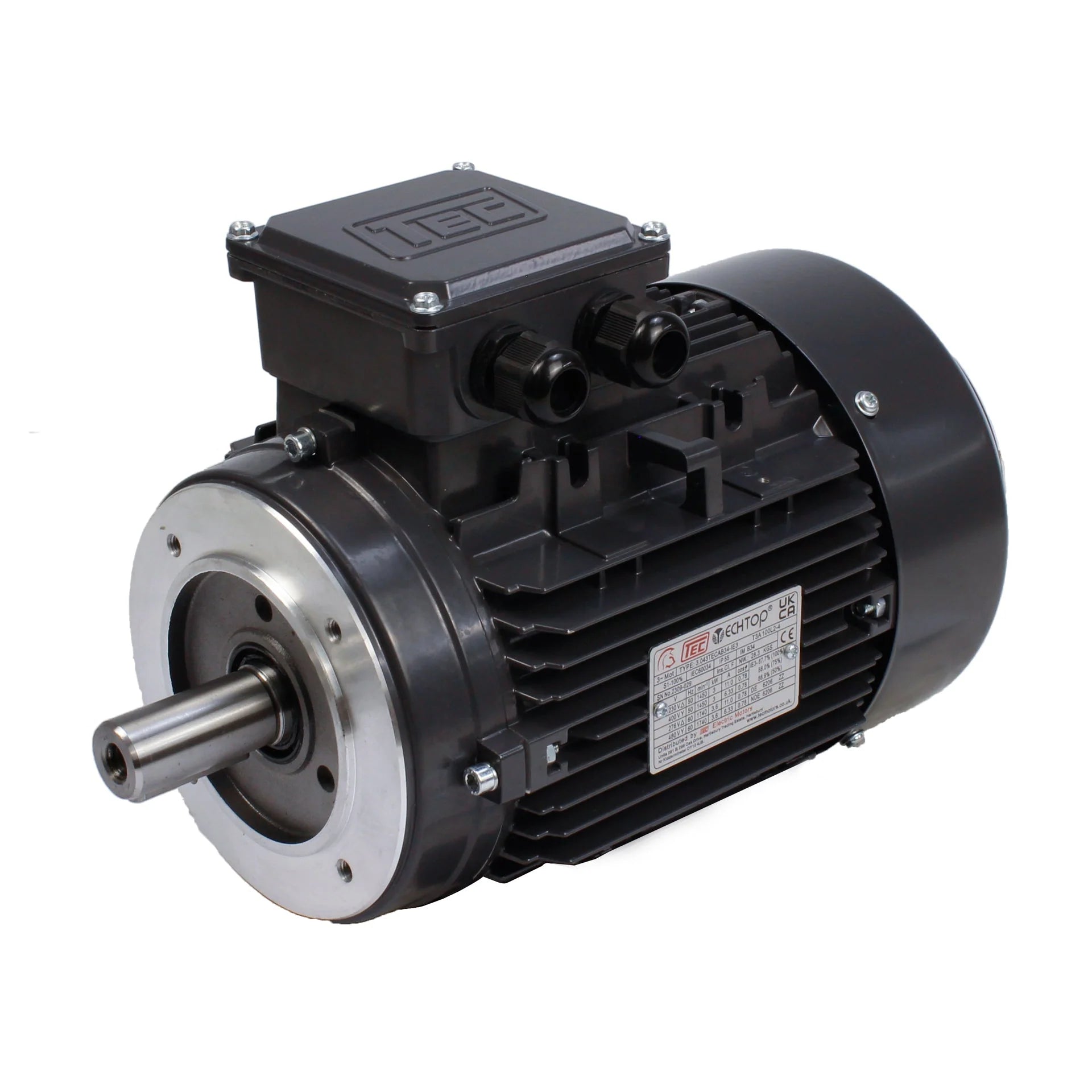

TEC Motors | 0.12 kW | 2 Pole | 56 Frame | B14 Mount | 230V/415V | 3Ph Supply | IE2 | Aluminium

Motor Specifications


Manufacturer TEC Motors
Motor Type 3 Phase Motor
Power 0.12 kW
Speed 2 Pole
Mounting Arrangement B14
Frame Size 56 Frame
Construction Aluminium
Efficiency IE2
Voltage Δ / Y 230V / 415V
IP Rating IP55

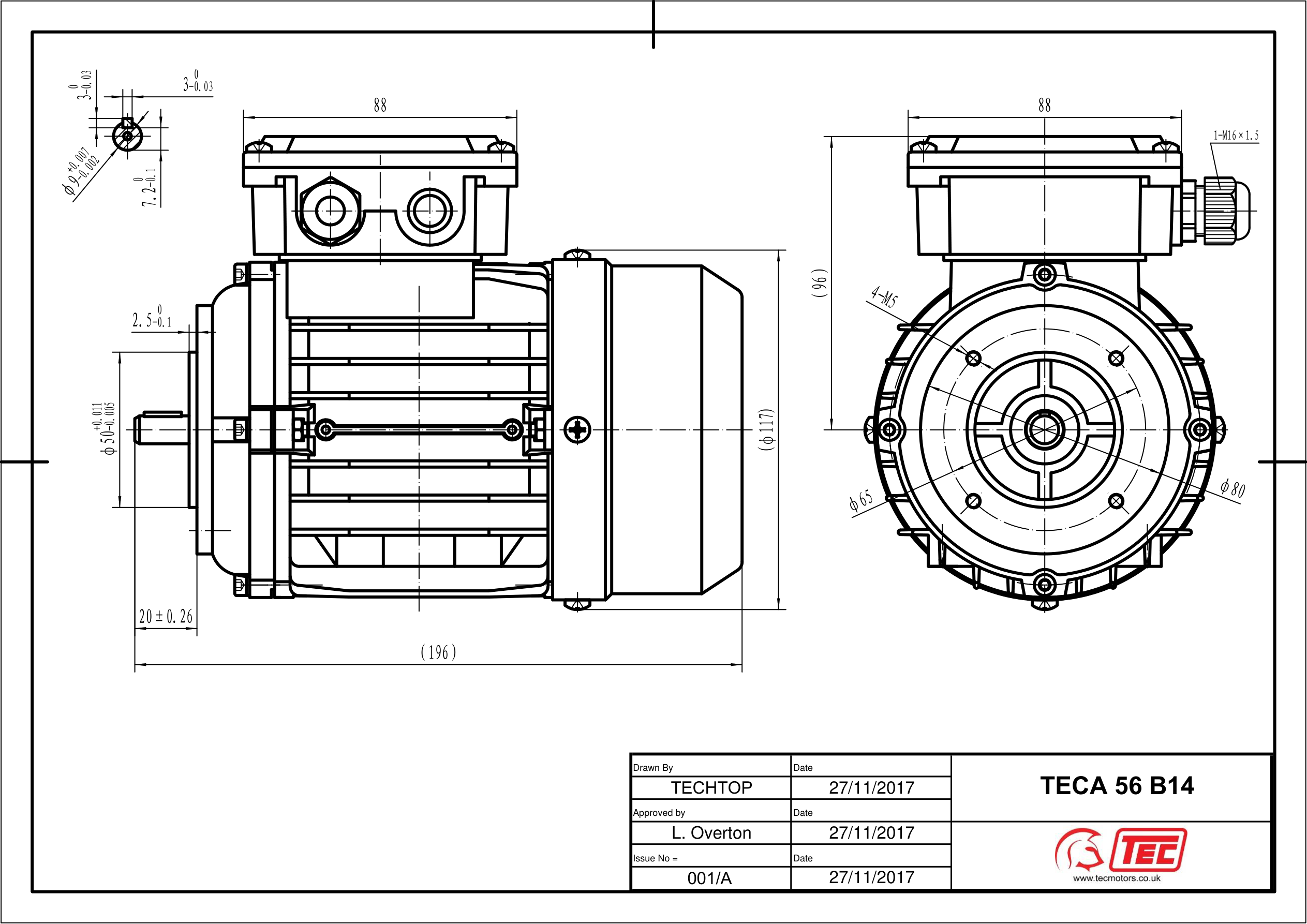

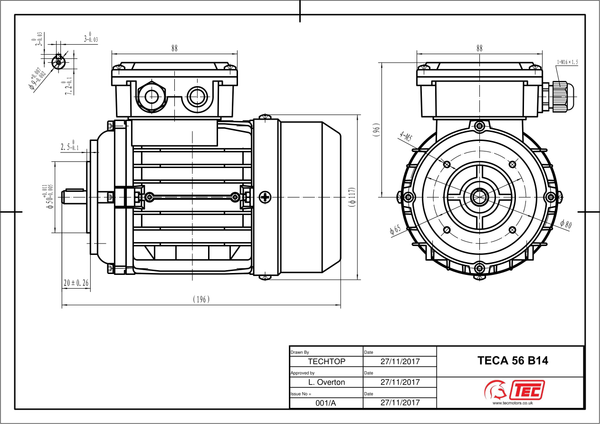

Overall Motor Size and Weight


Weight (kg) Width (mm) Height (mm) Length (mm)
3.2 112 152 196

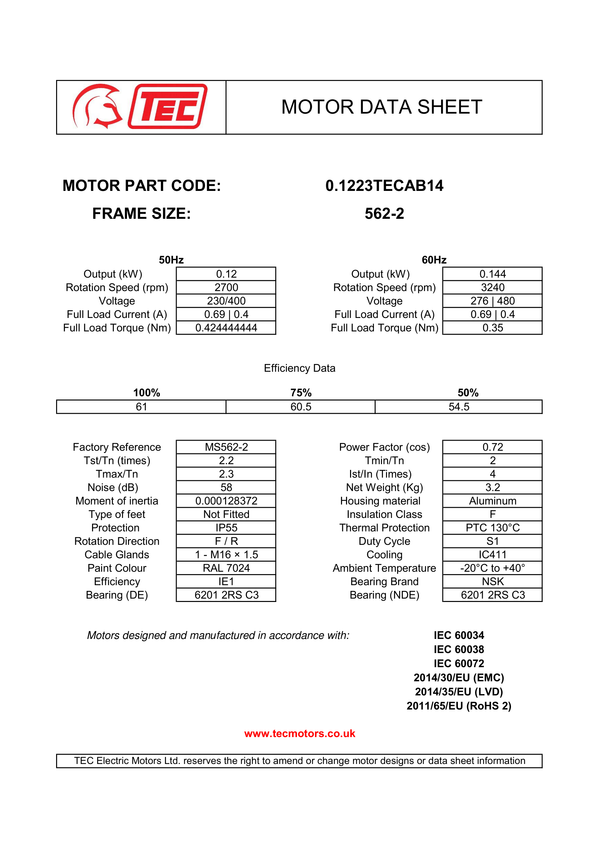

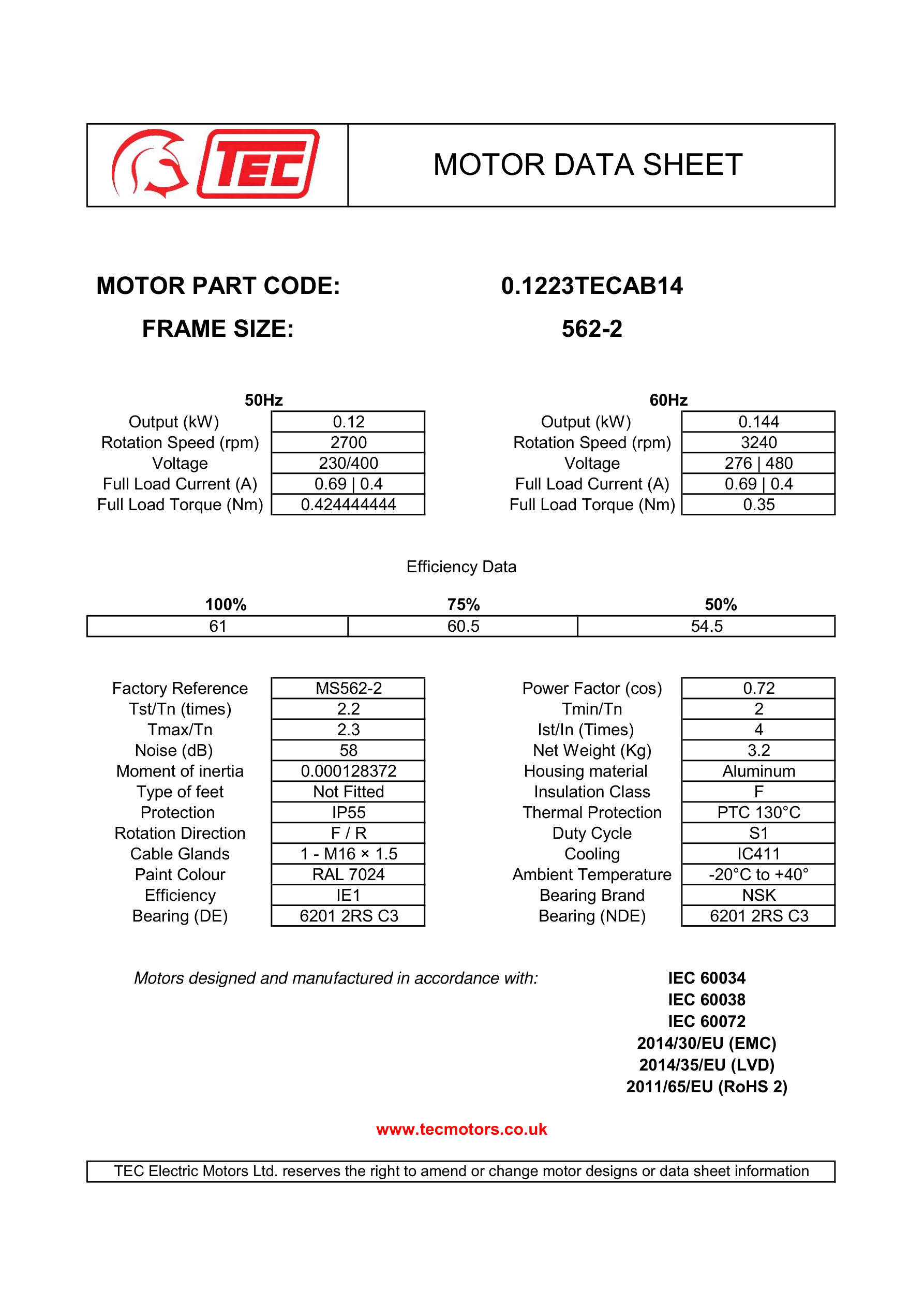

Downloads

Using this Motor on a Single-Phase Supply

Don't have a 3-phase supply? This motor can be operated from a standard 230V single-phase supply when used with a suitable Variable Speed Drive (VSD) or Inverter, which also gives you the added benefit of being able to control the speed of the motor.

You can find our range of single phase inverters here: 230V Input Inverter

Not sure what inverter is right for your motor and application? contact us and our team will be more than happy to help.

Not quite what you are looking for?

If you can't find the exact motor you're looking for, please contact us and we'd be happy to help. We can offer motors with a wide range of factory options and environmental treatments, including:

  • Compact frame / High output motors
  • Upgraded IP66 protection ratings
  • Tropicalization for humid or corrosive environments
  • ATEX certified motors for hazardous areas
  • Brake motors
  • Custom windings for non EU voltages and frequency ratings
  • Custom paint colours
  • Food safe coatings and lubricant oils
  • Single phase motors

For more information and support visit our YouTube channel, Technical resources, FAQ, Engineering Calculation Pages
