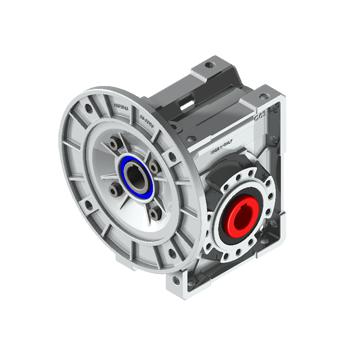

20:1 | 70rpm | 17Nm For 0.18kW B5 Motor Square Worm Gearbox

Product Code: 111016



£67.20

Qty

 More payment options
Ask about this product

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Square Frame Worm Gearbox - For Motor Size 63 0.18kW

70rpm Output - 17Nm

Input RPM

Input RPM

1400 RPM

Ratio

Ratio

20.0:1

Output RPM

Output Speed

70 min-1

Motor Power

Motor Power |Torque

0.18kW | 17Nm


Service Factor

Service Factor

1.1

Output Diameter

Output Diameter

Standard ø14mm

Input Flange

Input Flange

63 B5 ø140

Input Bore

Output Bore

Standard ø11mm


Technical Details

Lubrication

Unit Q30 is supplied with synthetic oil (SHELL Omala S4 WE 320), providing “long life” lubrication. For standard mounting orientations 0.03l is the fill amount.

Weight(kg) Width Height Length
4.0kg 55mm 101.5mm 97mm
Hydro-Mec Square Frame Worm Gearbox

Single-piece aluminum alloy housing

UIs vacuum impregnated (MIL-STD 276) for protection and sealing. No secondary finish required but readily accepts paint. Combines light weight with high tensile strength. Precision machined for alignment of bearings and gearing.


Oversized bearings

Support positively-retained, high speed shaft for higher shock load capacity - ideal for frequent starting and reversing application. Premium, Nitrile® high temperature seals each end.

Impregnated and machined bearing caps

With exterior machined surfaces enable a variety of mounting accessories. Extra-deep thread engagement provided for greater support strength. Zinc plated hardware.


Single piece alloy steel input shaft and worm shaft

High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused, for noise reduction and enhanced efficiency.

20:1 | 70rpm | 17Nm For 0.18kW B5 Motor Square Worm Gearbox
