Green Round Flush Momentary Push Button - 22mm - 1NO - IP50 - EMAS B100DY

EMAS

Product Code: 18318

£5.72

Add to Compare

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Next Working Day Delivery is affected by bank holidays,
More Info.

Description Reviews

Green Round Flush Momentary Push Button - 22mm - 1NO - IP50 - EMAS B100DY

This product has a contact configuration of 1 'NO' (Normally Open) block. The EMAS plastic push buttons act as a switch and provide a durable solution that can be used in all applications. This green plastic push button can be fitted in any 22mm hole. Other colours are available and other materials can also be supplied.

This green push button is a generic button that can be used for all sorts of applications. It is reliable and built to last.

Non-flammable V0 PA6.6 contact blocks
Various illumination contact blocks availablity
Variety of products for all areas of application

Certificate

Standard

IEC 60947-5-1
TS EN 60947-5-1
UL 508
VDE 0660

Certificate (Contact Block)

Technical Specifications:

Feature	Detail
Product	Control Unit
Model	Spring
Type	Flush
Contact	1NO
Color	Green
Dia	22 mm
Current (Ie)	4 A (250V AC)
Usage Category	AC 15
Mechanical Life (Min Qty)	500000
Electrical Life (Min Qty)	100000
Operating Frequency (On-Off/Hour)	Mech. 3000 Elec. 1200
Insulation Voltage (Ui)	300V
Impulse Withstand Voltage (Uimp)	2.5 kV
Dielectric Strength (Body-Contact)	2.500V AC
Dielectric Strength (Contact-Contact)	1.500V AC
Isolation Resistance	10 MΩ min. (500V DC)
Operating Temperature	-15 / + 80 °C
Pollution Degree	3
Protection Degree	IP50
Contact Material	AgNi
Cable Section	1.5-2.5 mm²
Screw Torque	1,5 Nm
Short Circuit Breaking Capacity (Ics)	1 kA
Production Time	31.12.1899 00:00:00
Serial	B Series Plastic

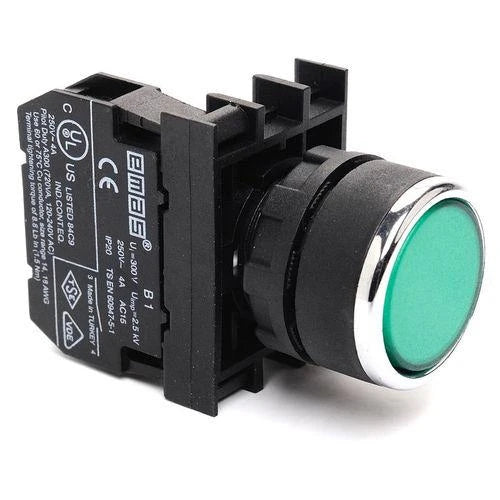

B100DY - EMAS Round Green Plastic Push Button - 22mm Diameter

Useful downloads

Datasheet | Drawing
