TCNDK90 Single Output shaft

TEC Motors

Product Code: 21003A016

£23.20

Qty

Ask about this product

Add to Compare

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Description Reviews

Single Output Shaft for TCNDK Gearboxes

Looking for a single output shaft for your TCNDK gearbox? Look no further. Simply select the Gearbox size you require from the drop-down menu and then add it to your cart.

Dimensions

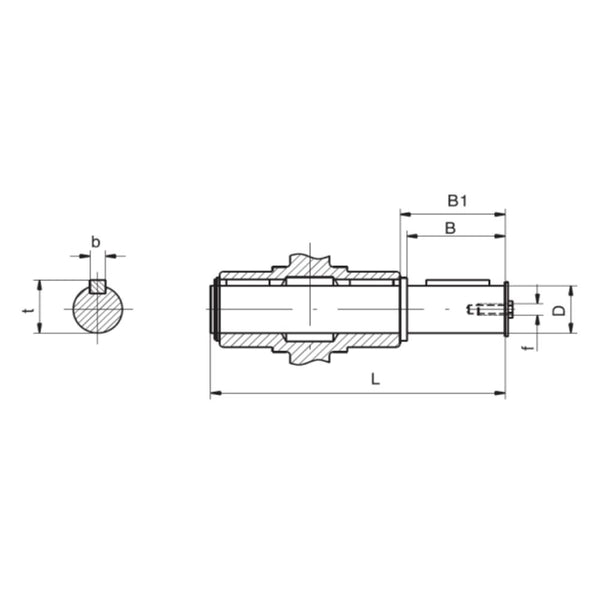

Please see image number 2 for the referenced measurements in this table.

Size	D (h6)	B	B1	L	L1	f	b	t
25	11	23	25.5	81	101		4	12.5
30	14	30	32.5	102	128	M6	5	16
40	18	40	43.0	128	164	M6	6	20.5
50	25	50	53.5	153	199	M10	8	28
63	25	50	53.5	173	219	M10	8	28
75	28	60	63.5	192	247	M10	8	31
90	35	80	84.0	234	308	M12	10	38
110	42	80	84.5	249	324	M16	12	45.0
130	45	80	85.0	265	340	M16	14	48.5
150	50	102	110	324	420	M20	14	53.5
