Right Angle Worm Gearbox - TCNDK75

TCNDK series worm gear units have been designed based on the modular format system. All types of IEC motors can be fitted. The TCNDK75 is supplied filled with synthetic long-life oil grade ISO VG 320. The housing is Aluminium.

The worm gear box is constructed with an air tight and dust proof aluminium gear casing and benefits from being able to be installed in open air. No extra servicing is required for our worm gear boxes which are sealed for life.

How do I work out my gearbox ratio?

To work out the final RPM of the gearbox, use the equation below.

Motor RPM ÷ Gearbox Ratio = Final Output Speed

Dimensions

Side Profile

Rear Profile

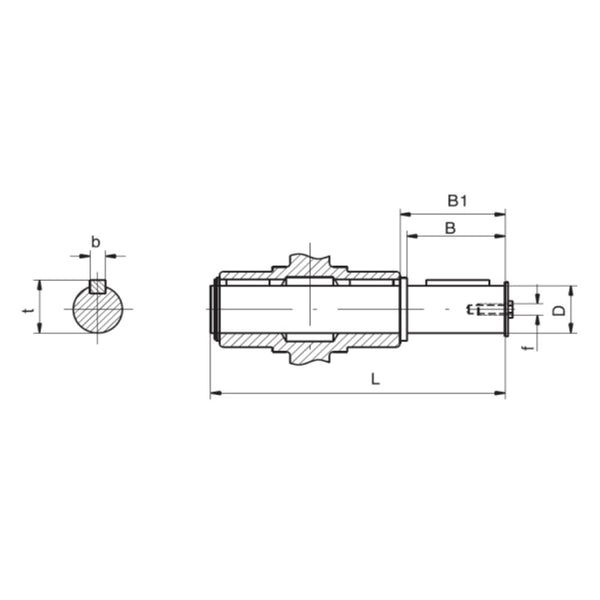

Single Output Shaft

Double Output Shaft

Weight(kg)
9.0kg

Mounting Orientation

The TCNDK Gearboxes are pre-filled with synthetic oil. This has to be filed according to the orientation that the gearbox will be used in, and must be specced when purchasing to avod invalidating the warranty and premature failure of the gearbox.

Please see the help sheet, to determine which orientation you require and then select in the drop down menu above when adding the gearbox to your cart.

Click HERE to view the full sized help sheet.

Need Assistance Working Out Which Gearbox You Require?

If you need specialist components or just a hand to work out which gearbox would suit what you need then give us a call on 01905 887 667. Our staff are available during office hours and will be happy to help you with any questions.
