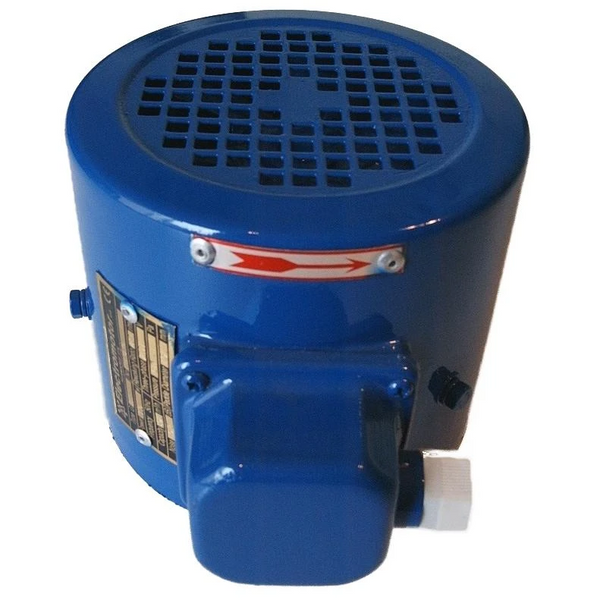

Forced Ventilation Unit 230v Frame Size 71

Product Code: 113360



£111.45

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Forced Ventilation Unit – Frame 71

Runs from a single phase 230VAC Supply

Forced ventilation Unit to suit 71 Frame Motors

All Forced Vent. Units are supplied with connector box and instructions for fitting.

IC416 cooling system to suit 71 frame motor 230/1/50 Supply required

Specifications

Length: 138

Inner Diameter: 167

Output: 35

Output Current: 0.15

Speed: 2800

Air Volume: 52

Air Pressure: 50

Noise: 62

When Do I need a Forced Vent Unit?

There is a growing need with variable speed drive applications for motors with improved cooling when operating at low speeds. Closed-loop AC inverters will provide 100% motor torque at zero speed. The simplest way to achieve this is to provide a second, small, constant speed induction motor to drive the cooling fan. The use of force ventilated or separately blown motors is not new, but the advent of static frequency inverters brings new life to the concept. It is essential to use a system of forced ventilation to give the required cooling across the body of the motor. Insufficient cooling will result in: Loss of output power, Nuisance trips, Premature failures.
