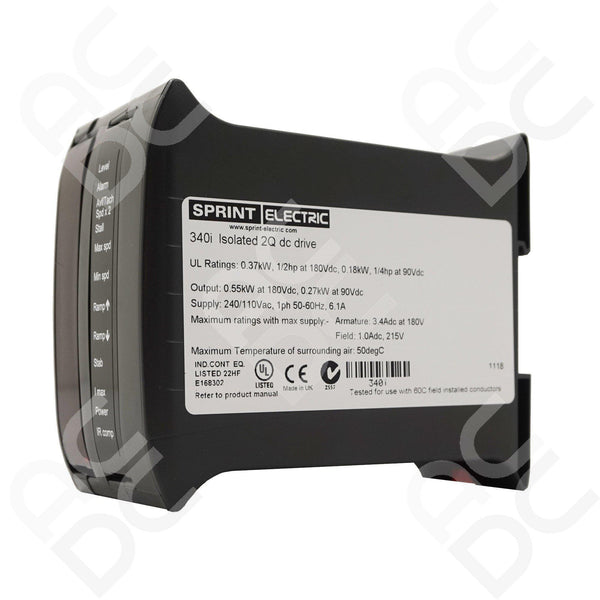

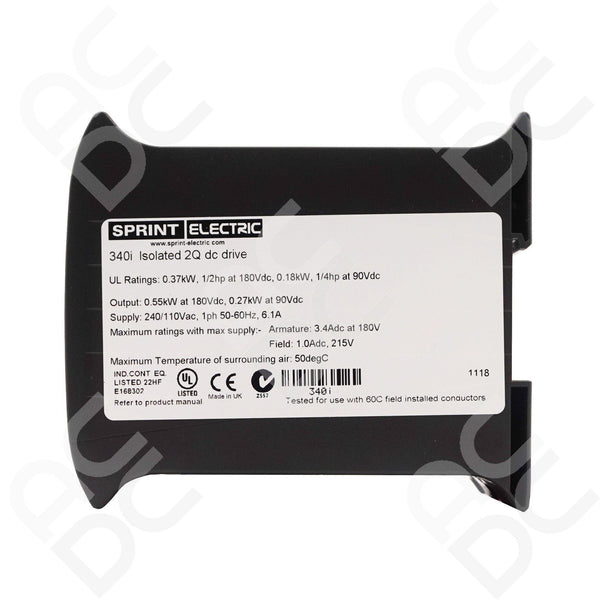

0.55kW Din Rail Mounted DC Drive - Sprint 340i 230VAC / 110VAC

Sprint 340i 0.55kW

Power Output: 0.55kW | 0.75HP

Power Input: Single Phase 230VAC

Output Current: 3.4A

Frame Size Dimensions



Weight(kg) Width Height Depth
0.75kg 35mm 105mm 120mm

SL Range



340i 0.55kW Onboard

  • Single Phase
  • A large amount of I/O
  • 1 Quadrant Isolated

Sprint 340i 0.55kW Features

Overview

Make upgrading your existing control panel easier. Save space in new DC single direction motor control systems. The ultra compact DIN rail mounting package lets you install quickly. Three options are available for controlling DC motors up to 12.2 Amps. You can use this versatile range of non-isolated controllers for permanent magnet, shunt wound motors or universal motors. To make your installation quick and simple, all 340i, 680i, and 1220i series controllers have easy to access drive adjustments, plug-on screw terminals and a small foot print from just 70mm x 105mm.

Why Choose a Sprint 340i DC Drive?

This ultra compact, fully isolated dc drive has multiple features to make dc motor control easier than ever before. Some features of the Sprint 340i include:

  • DIN rail mounting
  • Small footprint
  • Plug-on screw terminals
  • Selectable dual voltage AC supply
Diagram

SprintSL

Energy Efficient

Energy efficiency is a priority when fitting a drive, no matter what the application, an efficient dc drive can make all the difference, with the 340i drive, you are guaranteed to get the highest level of efficiency.

Sprint SL Keypad

Standard Features

  • Switch selectable tach or armature voltage feedback.
  • Adjustable IR compensation for improved AVF speed regulation.
  • Compact dimensions make installation and retrofitting a simple task.
  • Terminals include: +10V ref, Min speed, Ramped Input+. Output +/-, Input +/-. Pushbutton +/-, Run input, Tach Input.
Reliable Inverter

Compact & Reliable

The 340i drive has been designed in such a way to reduce cost and size so users can benefit from these dc drives without any drawbacks. The 340i drive excels with regards to its compact size, due to this feature, it can fit where other drives of the same specification would not, the 340i is also easily integrated for trouble-free installation when retrofitting.
