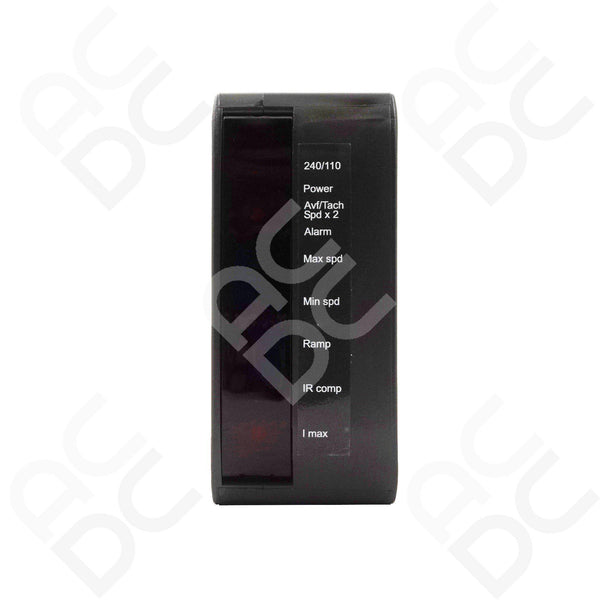

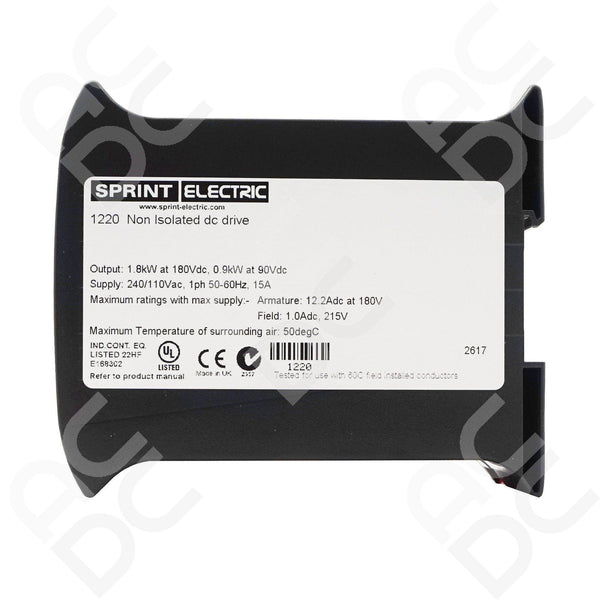

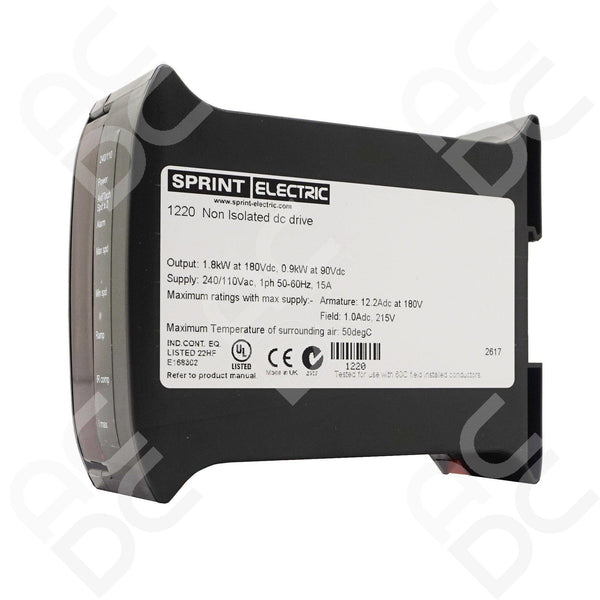

Sprint 1220 - 1.8KW - 1Q Non Isolated

Product Code: 17723



£187.99 - £220.99
£187.99

Available Options


Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

1.8kW Din Rail Mounted DC Drive - Sprint 1220 230VAC / 110VAC

Sprint 1220 1.8kW

Power Output: 1.8kW | 2HP

Power Input: Three Phase 480VAC

Output Current: 12.2A

Overload 150% for 25 Seconds

Frame Size Dimensions



Weight(kg) Width Height Depth
0.75kg 70mm 105mm 120mm

SL Range



1220 1.8kW Onboard

  • Single Phase
  • A large amount of I/O
  • 1 Quadrant Non-Isolated

Sprint 1220 Features

Overview

Make upgrading your existing control panel easier. Save space in new DC single direction motor control systems. The ultra compact DIN rail mounting package lets you install quickly. Three options are available for controlling DC motors up to 12.2 Amps. You can use this versatile range of non-isolated controllers for permanent magnet, shunt wound motors or universal motors.

Why Choose a Sprint 1220 DC Drive?

This ultra compact, fully isolated dc drive has multiple features to make dc motor control easier than ever before. Some features of the Sprint 1220 include:

  • DIN rail mounting
  • Small footprint
  • Plug-on screw terminals
  • Selectable dual voltage AC supply
Diagram

SprintSL

Energy Efficient

Energy efficiency is a priority when fitting a drive, no matter what the application, an efficient dc drive can make all the difference, with the 1220 drive, you are guaranteed to get the highest level of efficiency.

Sprint SL Keypad

Standard Features

  • Switch selectable tach or armature voltage feedback.
  • Adjustable IR compensation for improved AVF speed regulation.
  • Compact dimensions make installation and retrofitting a simple task.
  • Terminals include: +10V ref, Min speed, Ramped Input+. Output +/-, Input +/-. Pushbutton +/-, Run input, Tach Input.
Reliable Inverter

Compact & Reliable

The 1220 drive has been designed in such a way to reduce cost and size so users can benefit from these dc drives without any drawbacks. The 1220 drive excels with regards to its compact size, due to this feature, it can fit where other drives of the same specification would not, the 1220 is also easily integrated for trouble-free installation when retrofitting.
