EMAS Key Operated Selector Switch - B100AA20 (0-1) - 1 NO

EMAS

Product Code: 18714

CLICK HERE FOR DOWNLOADS BELOW

£14.18

Qty

Ask about this product

Add to Compare

Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).

Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.

Next Working Day Delivery is affected by bank holidays,
More Info.

Description Reviews

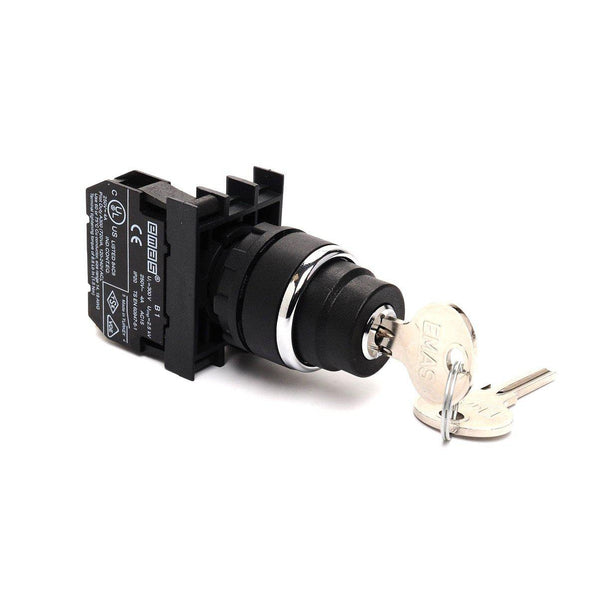

EMAS Round Black Key Operated Multipole Selector Switch (0-1) - 22mm Diameter - B100AA20 - 1 NO

This black key operated selector switch has a contact configuration of 1 ‘NO’ (Normally Open) block.

The EMAS plastic selectors act as a lockable switch and provide a durable solution that can be used in all applications. This black plastic key operated selector switch can be fitted in any 22mm hole. This switch is key operated to avoid the switch being operated accidentally with two positions: 0-1.

At ACDC Drives, we only use products that we have used and vigorously tested so when you buy from us; you are guaranteed to have the highest quality product for the lowest price.

Non-flammable V0 PA6.6 contact blocks
Various illumination contact blocks availablity
Variety of products for all areas of application

Certificate

Standard

IEC 60947-5-1
TS EN 60947-5-1
UL 508
VDE 0660

Certificate (Contact Block)

Technical Specifications:

Feature	Detail
Product	Control Unit
Model	Key Operated
Type	Stay Put Key Removal at 0 position
Label/Position	(0-I) 60°
Contact	1NO
Dia	22 mm
Current (Ie)	4 A (250V AC)
Usage Category	AC 15
Mechanical Life (Min Qty)	500000
Electrical Life (Min Qty)	100000
Operating Frequency (On-Off/Hour)	Mech. 1200 Elec. 1200
Insulation Voltage (Ui)	300V
Impulse Withstand Voltage (Uimp)	2.5 kV
Dielectric Strength (Body-Contact)	2.500V AC
Dielectric Strength (Contact-Contact)	1.500V AC
Isolation Resistance	10 MΩ min. (500V DC)
Operating Temperature	-15 / + 80 °C
Pollution Degree	3
Protection Degree	IP50
Contact Material	AgNi
Cable Section	1.5-2.5 mm²
Screw Torque	1,5 Nm
Short Circuit Breaking Capacity (Ics)	1 kA
Production Time	31.12.1899 00:00:00
Serial	B Series Plastic

Useful downloads

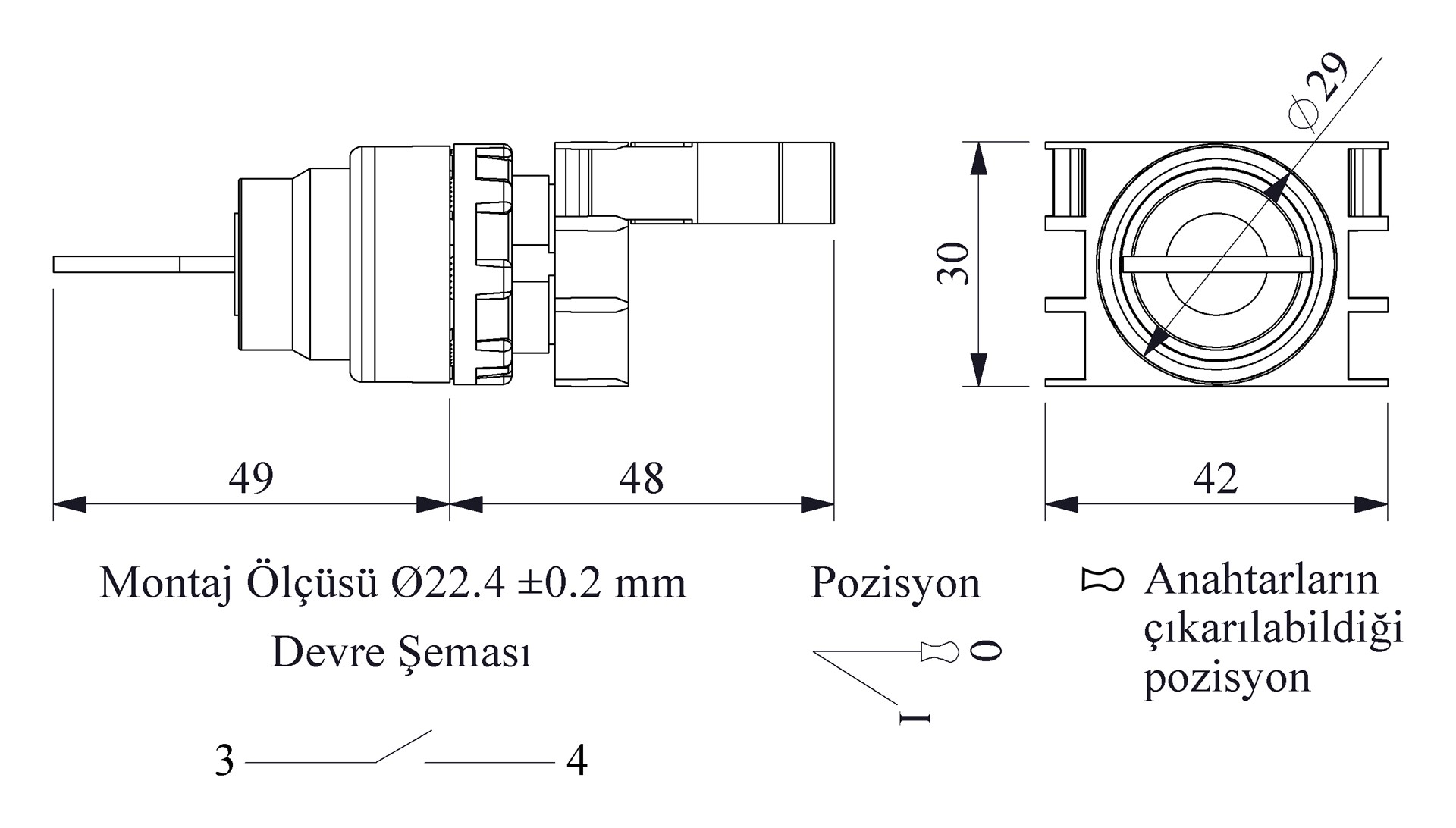

Datasheet | Drawing
