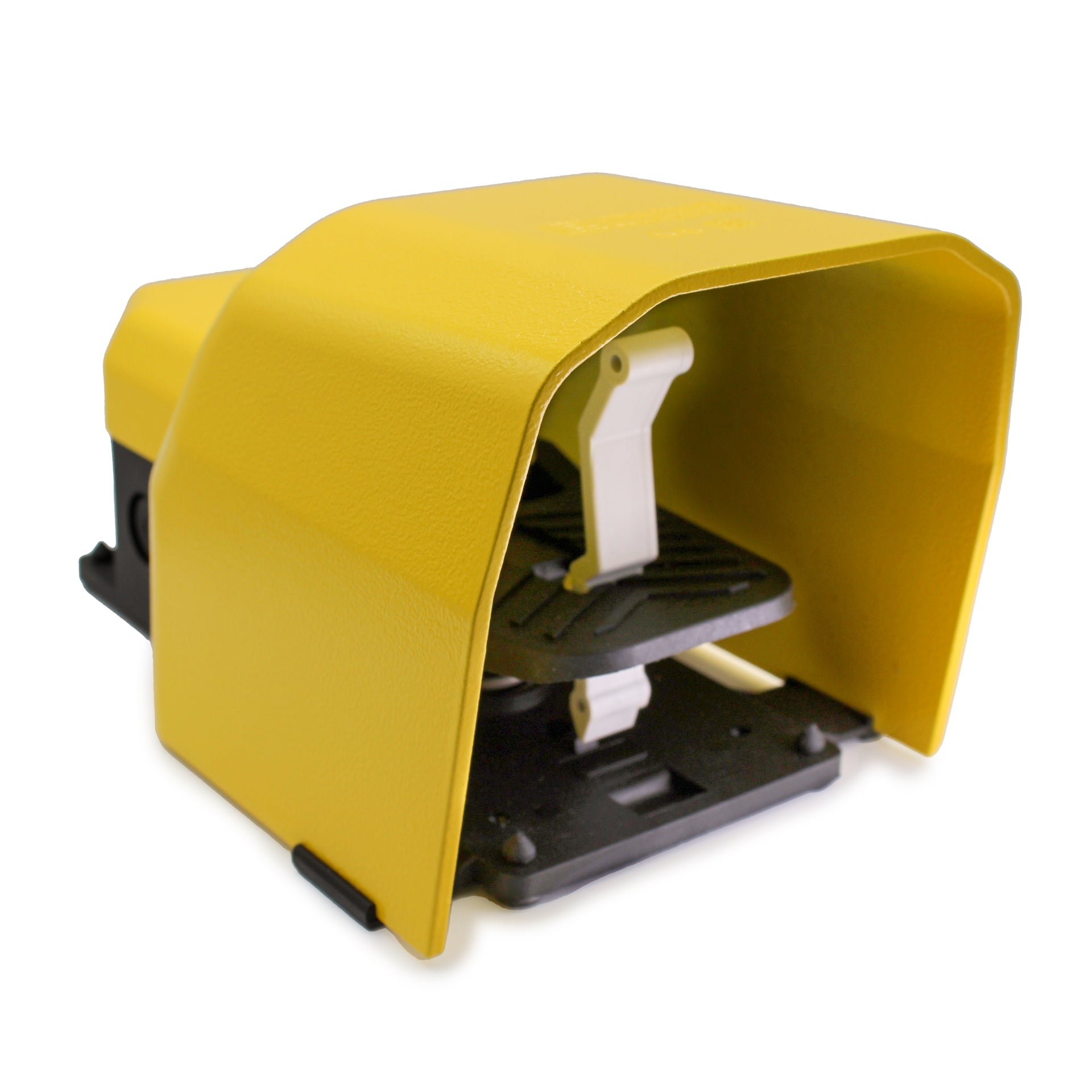

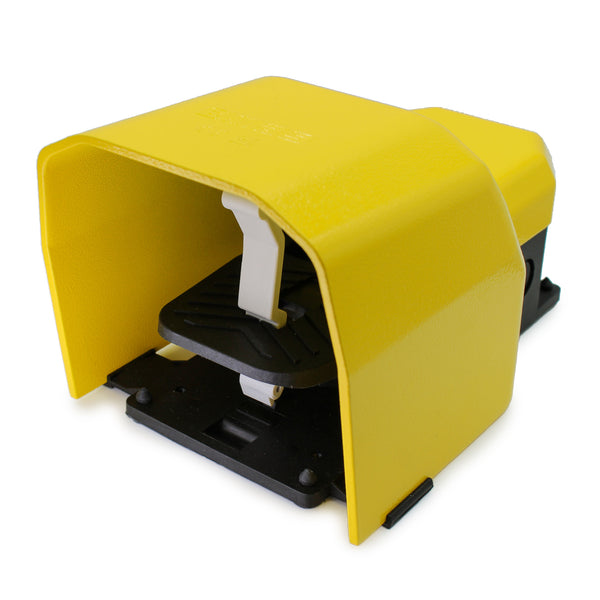

EMAS Industrial Foot Pedal Switch (10 kΩ Linear Potentiometer) - PDKS11PX10
The EMAS industrial foot pedal switch PDKS11PX10 is a rugged control device designed for precise speed, variable voltage, and position adjustment in industrial machinery and mobile systems. Fitted with a high-quality 10 kΩ linear potentiometer, this variable speed foot switch delivers smooth, proportional control for demanding applications like plastic and rubber coilers, industrial sewing machines, conveyors, and various mobile vehicles. This robust construction makes it an ideal heavy duty foot switch solution.

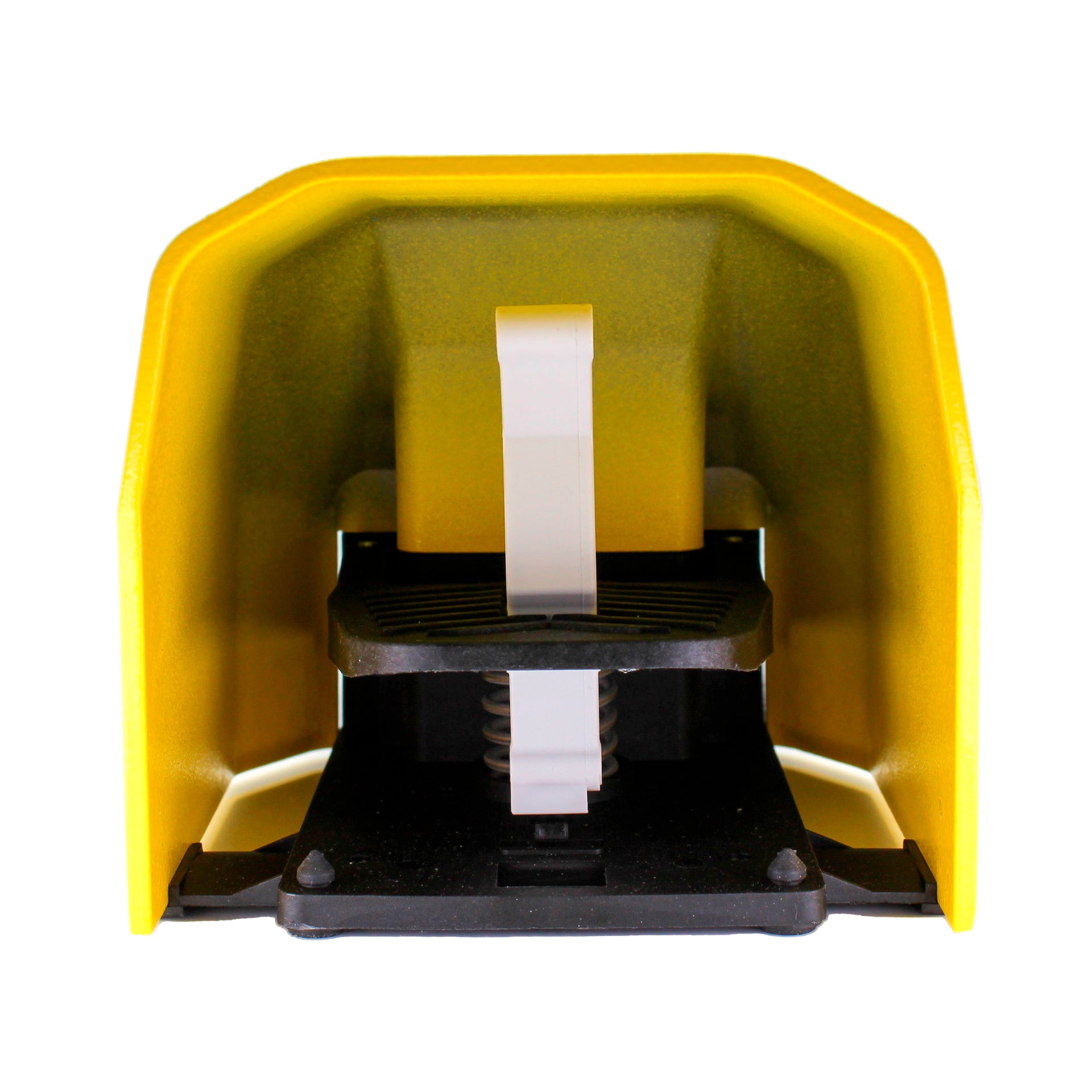

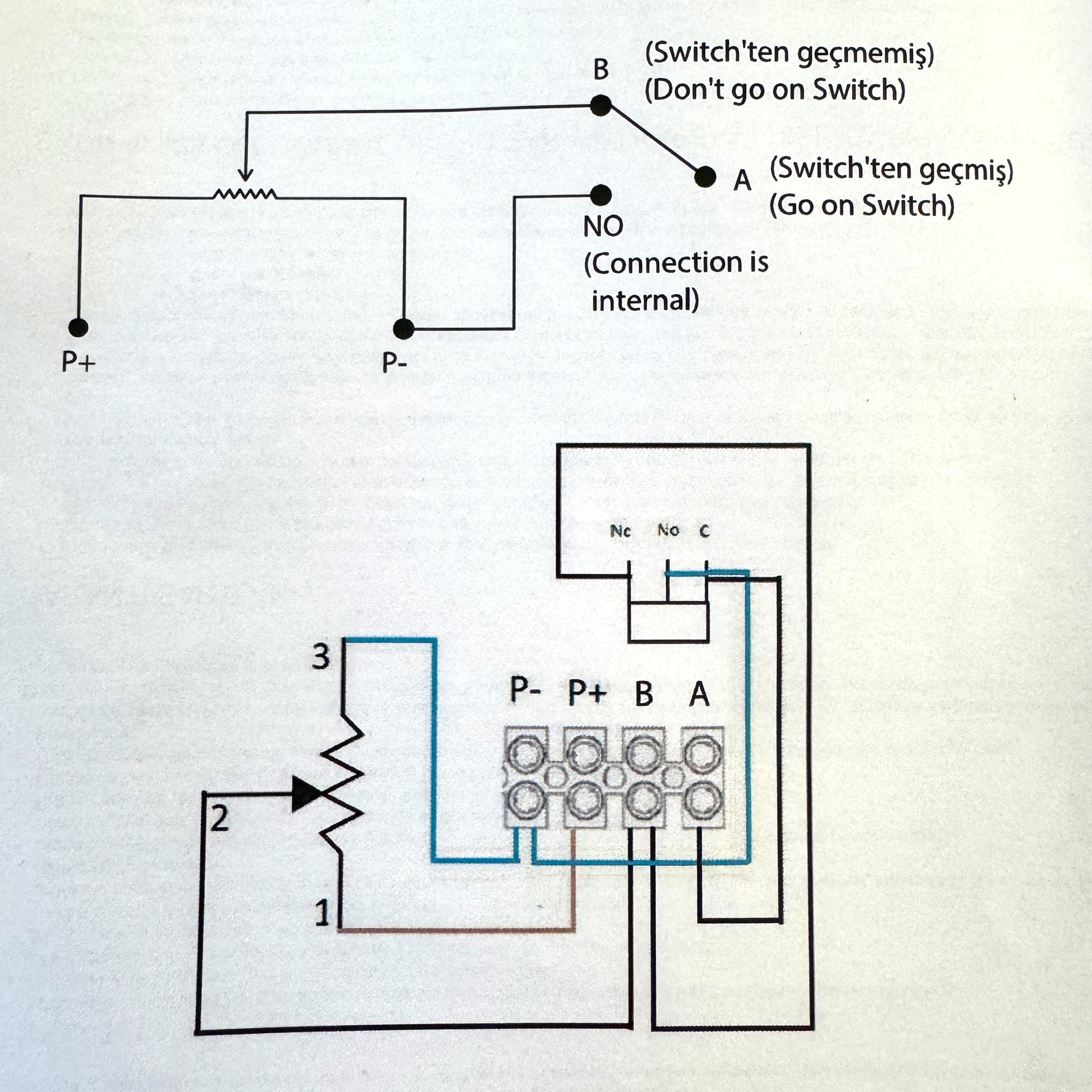

A built-in kick-bar safety lock prevents accidental operation—once pushed back, the pedal can be depressed to increase voltage output on terminal A. When released, the potentiometer’s wiper is automatically grounded to remove unwanted voltages. This feature enhances the safety of this industrial control pedal.
Compliant with TS EN 60947-5-1 and rated for operation in temperatures from –15 °C to +80 °C, the EMAS foot pedal switch offers dependable, long-life performance (10-year design life) with simple wiring (P+, P–, A, B) and a 2-year manufacturer warranty. The product code for this model is PDKS11PX10.
Plastic or Metal options
Single and Double Speed
Yellow
Grey and orange color options
with Latching option
Typical Applications
Machine tool activation
Conveyor and packaging equipment
Industrial automation control stations
Assembly line machinery
Testing and measurement equipment
Variable speed motor control
Technical Specifications
Potentiometer value: 10 kΩ 10%, linear type
Operating voltage: per rated system value (refer to model label)
Connection terminals: P+, P–, A, B
Temperature range: –15 °C to +80 °C
Ingress protection: per product-label IP rating
Standard compliance: TS EN 60947-5-1
Warranty: 2 years (manufacturing defects)
Design life: 10 years
Certificate
Standard
TS EN 60947-5-1
UL 508
VDE 0660
Certificate (Contact Block)
Warranty & Compliance All EMAS pedal switches, including the PDKS11PX10, are covered by a 2-year manufacturer warranty and built to the latest European electrical safety standards. Installation must be performed by qualified personnel in accordance with EMAS technical documentation. Improper installation or environmental exposure beyond rated limits may void warranty coverage.
