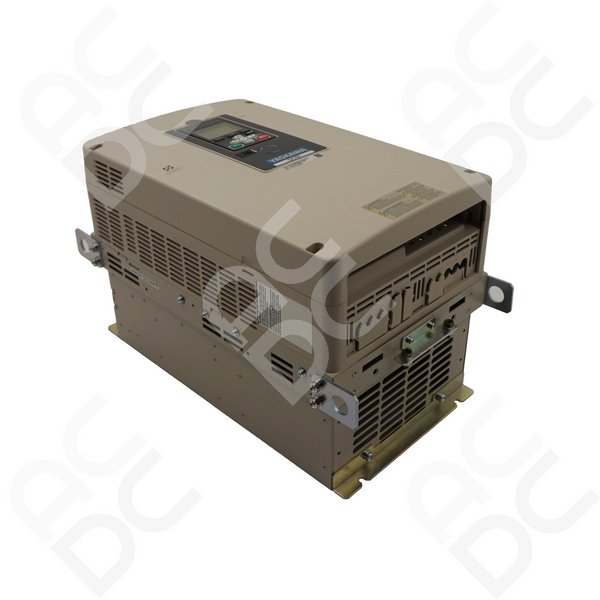

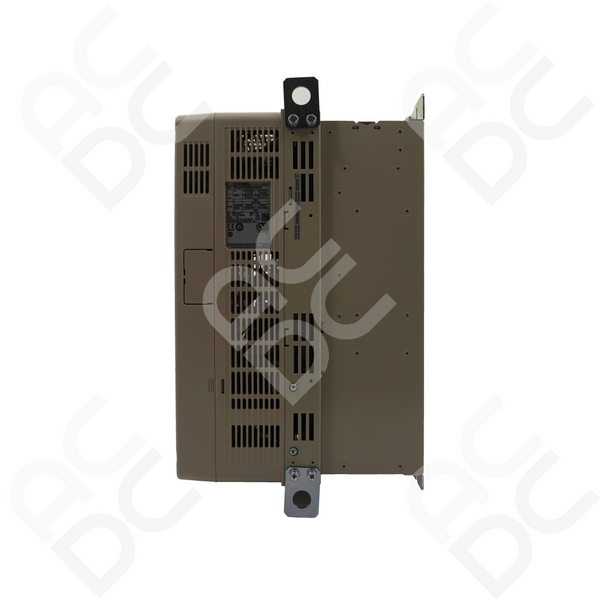

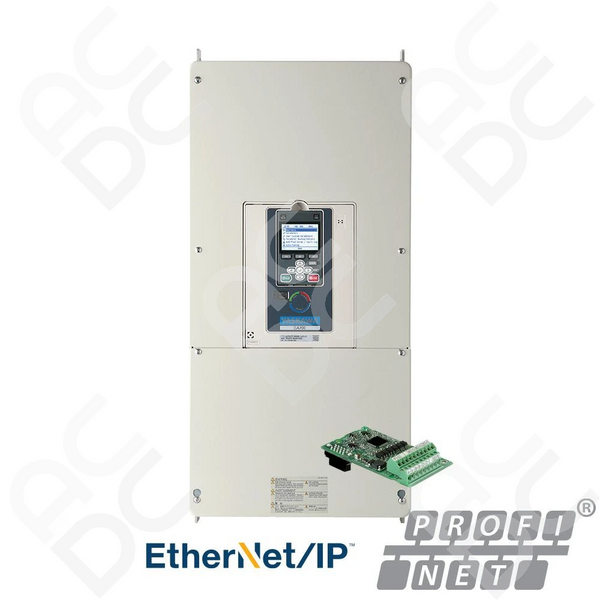

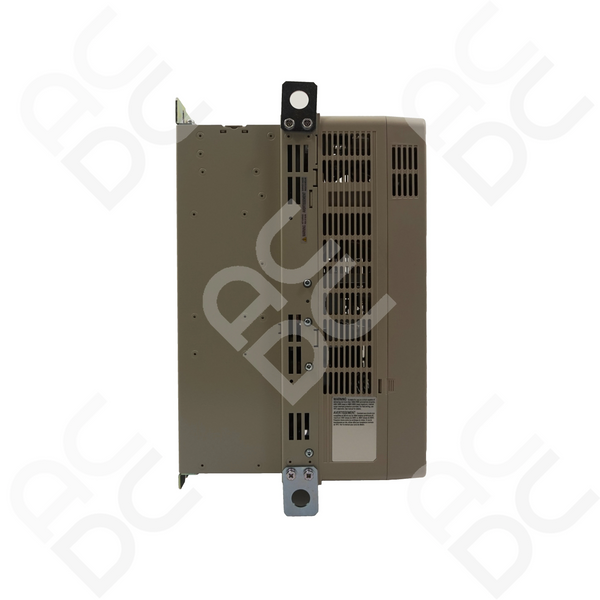

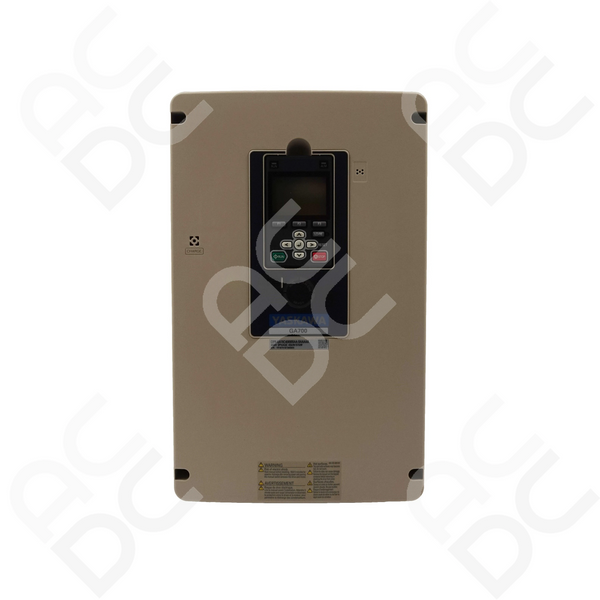

132kW/160kW Inverter 415VAC 3Ph - Yaskawa GA700 - GA70C4296BBA
132kW/160kW Inverter 415VAC 3Ph - Yaskawa GA700 - GA70C4296BBA
Product Code: 18134
£5,053.57
Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).
Please Note:
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.
Have a question?
132.0kW AC Input Inverter Yaskawa GA700 415VAC (160.0kW ND)
Yaskawa GA700 132kW - GA70C4296BBA
Power Output: 132kW HD / 160kW ND | 200HP
Power Input: Three Phase 415VAC
Output Current: 260A HD / 296A ND
IP20 Standard
Functions:
- Integrated PID controller with sleep function
- Automatic load distribution for multiple axes (droop control)
- Automatic main power loss ride through
- Speed Search function for smooth start of coasting motors
- Braking with over-magnetization for fast stop without braking resistors
- Energy-saving function
- Automatic restart after failure
- Overvoltage suppression
Frame Size Dimensions
| Weight(kg) | Width | Height | Depth |
|---|---|---|---|
| 80kg | 312mm | 700mm | 420mm |
Stand Out Features
Control
- V/f and Vector Control with/without encoder, EZVector
Motor Types
- Induction Motor (IM)
- Permanent Magnet Motor (IPM/SPM)
- Synchronous Reluctance Motor (SynRM)
Standard
- LCD Display
- 6 x Digital I/O
- 1 x Relay
- 0.01 - 400Hz
Protection
IP Rated To IP20 (IP65 Available On request)
Standards
CE
UL
cUL
RoHS
Programming Interface
Mini-USB on the front cover; digital operator with Bluetooth
Control Inputs
8 digital (sink/source)
3 analog (current/voltage)
1 pulse (HTL, max. 32 kHz)
24 Vdc power supply for control cards
Control Outputs
4 digital
2 analog (current/voltage)
1 pulse (HTL, max 32 kHz)
24 Vdc for external sensors available (max. 150 mA)
