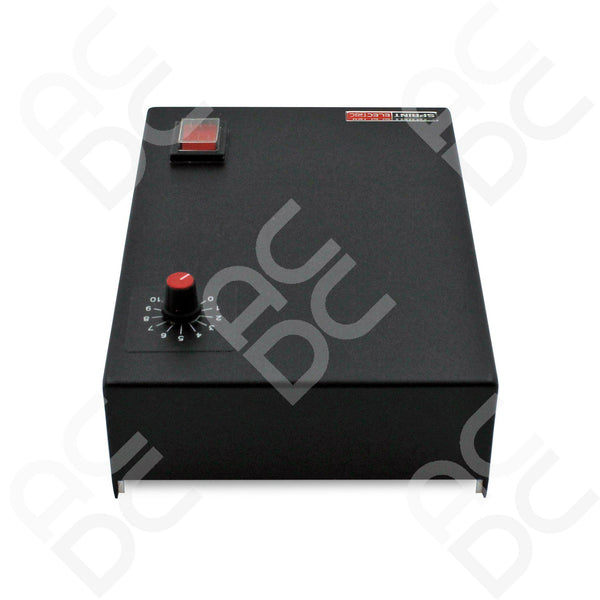

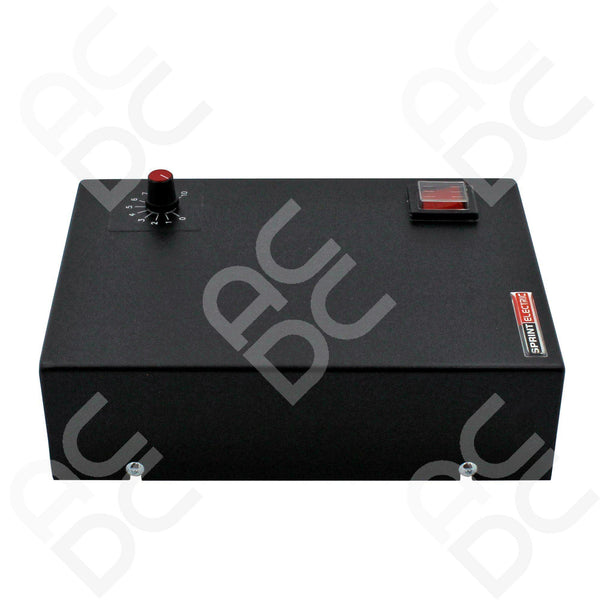

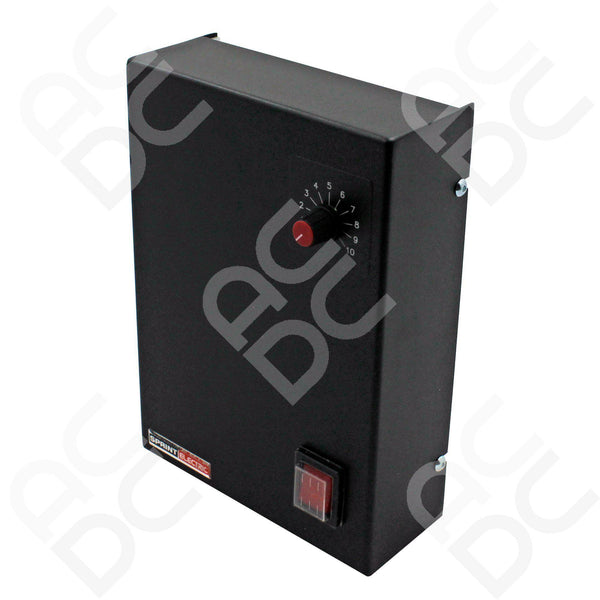

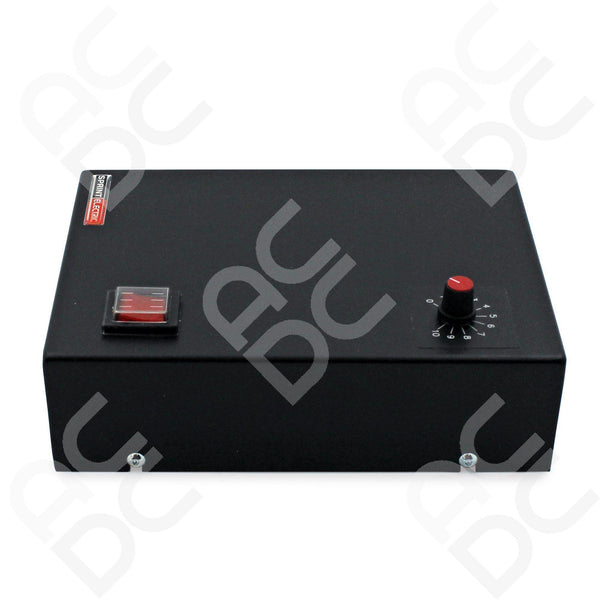

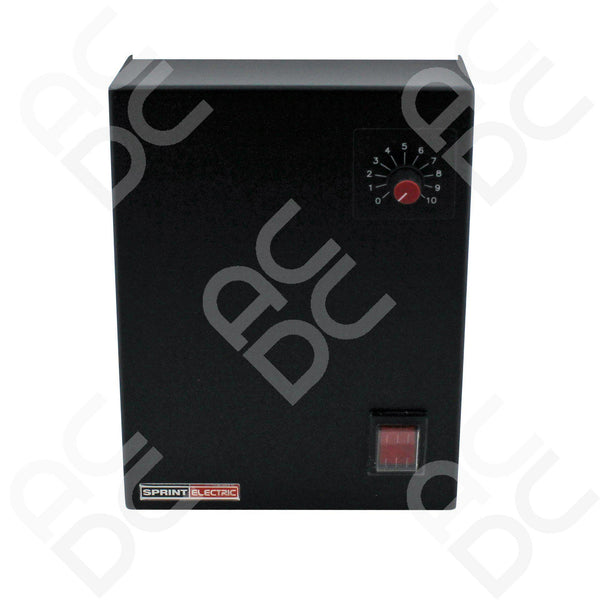

Sprint 800E - 1.1KW - Enclosed 1Q Fully Isolated
Product Code: 14580
Availability: In stock
Next Working Day Delivery* Please allow an extra working day for Scottish Highlands, Northern Ireland, Channel Islands and Isle of Man (Carriage may be extra for these areas).
To suit our international customers, all prices are displayed ex-VAT. Taxes will be added at Checkout.
Have a question?
Sprint 800E - Ultra Compact Enclosed DC Motor Control 230VAC / 110VAC
1.1kW Enclosed DC Drive - Model 800E - 8 Amps (1.1KW/60Hz) - Manufacturers Part Number: 800E
Dynamic & Advanced
The DC Drives with Enclosures provide a more advanced 1Q control option for motor rated up to 8 Amps output current 1.1kW motor power. The 800E DC Drive enclosure is available with 110-240VAC input as standard (and an optional 30-60VAC low voltage option providing 24 – 48VDC output). Models include:- IP40 protection, mains on/off switch, dual voltage supply, fully fused, zero speed interlocked reversing(ER only), dynamic braking (ER Only), set speed potentiometer with graduated scale.
Specifications at a glance:
- Adjustable IR compensation for improved AVF speed regulation
- Sophisticated dual loop control
- Set speed potentiometer with graduated scale
- Electronic soft start Drive run input
- Suitable for permanent magnet, shunt wound or universal motors
- Minimum Motor Speed
- Maximun Motor Speed
- Armature Current
- Acceleration Rate
- IR Compensation
- For DC motors rated up to 8 Amps
- Integral AC supply fuse
- Selectable dual international voltage supply 110/240V AC 50/60HZ
- Adjustable current overload protection
- Tachogenerator or armature voltage speed feedback Adjustable acceleration rate between 1 and 20 seconds On/Off AC supply
- illuminated rocker switch
Simple, reliable and compact. Make controlling DC motors easier with adjustable parameters including: minimum and maximum motor speed, armature current, up ramp and IR compensation.
Low voltage 30/60V AC supply version available for 24/48V DC motors
