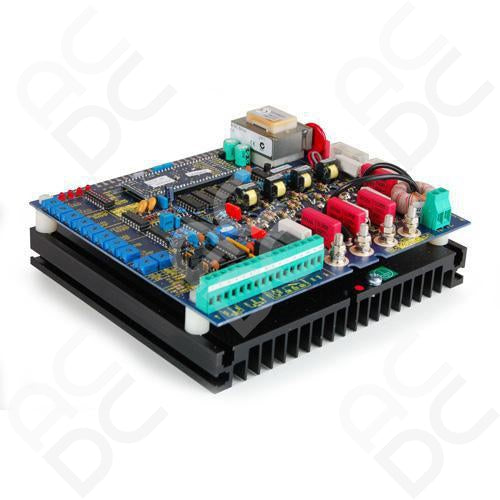

Model 3600XRI/32 - DC Motor Control Up To 32 Amps (7.5KW/10HP) Fully Isolated 230VAC / 110VAC
7.5kW Chassis / Panel Mounted DC Drive - Model 3600XRI/32 - 32 Amps - Manufacturers Part Number: 3600XRI/32
Download the Sprint 3600XRI/32 Manual: Sprint Electrical 3600XRI32 Manual
This 4 Quadrant regenerative DC motor controller gives a fast controlled response over the full forward/reverse speed range for motoring and braking. Improve your energy efficiency by regenerating energy into the mains supply whilst under braking. The energy invested accelerating the load mass is recovered when braking. No dissipation of energy in wasteful braking resistors. With five models up to 36 Amps, you can closely match the power required by your application. The 3600XRi has a robust design and is packed with features to help you reduce your down-time and maintenance costs. 9.5
Specifications at a glance:
- 32 Amps (7.5KW/10HP)
- 4 Quadrant, fully regenerative DC drive
- Isolated control electronics for easy connection to other drives/equipment
- 175 x 200 x 70(mm) H x W x D
- Suitable for permanent magnet or shunt wound motors
Technical highlights:
- Dual setpoint facility for alternate speed eg. run and crawl
- Direct pushbutton inputs for control of stop/start, direction and jog functions
- 4Q torque input
- Regen to zero input
- 2Q torque input
- Push-button forward/reverse
- Multiple I/O
- Push-button start function
User adjustable presets for:
- Forward acceleration
- Reverse acceleration
- Forward deceleration
- Reverse deceleration
- Max motor speed
- Min motor speed
- Motor current limit
- Brake current limit
- Forward current limit
- Reverse current limit
- Positive current limit
- Negative current limit
- IR comp
- Stability
Low voltage 30/60V AC supply version available for 24/48V DC motors
