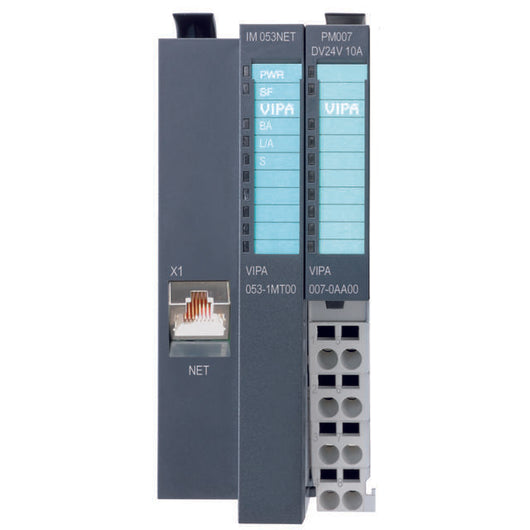

Modbus/TCP Slave Unit IM053MT
Features
- Modbus/TCP Slave
- I/O configuration va fieldbus
- up to 64 peripheral modules
Technical data power supply
- Power supply (rated value): DC24 V
- Power supply (permitted range): DC 20.4 28.8 V
- Reverse polarity protection: Yes
- Current consumption (no-load operation): 90mA
- Current consumption (rated value): 0.95A
- Inrush current: 3.9A
- I2t: 0.14Asq/S
- Max. current drain at backplane bus: 3A
- Max. current drain load supply: 10A
- Power loss: 3W
Communication
- Fieldbus: Modbus / TCP / IP
- Type Of Interface: Ethernet 10/100 MBit
- Connector: RJ45
- Topology: -
- Electrially isolated: Yes
- Number of participants, max: -
- Node addresses: -
- Transmission speed, min: 10 Mbit/s
- Transmission speed, max: 100 Mbit/s
- Address range inputs, max: 1 KB
- Address range outputs, max: 1 KB
- Number of TxPDOs, max: -
- Number of RxPDOs, max: -
