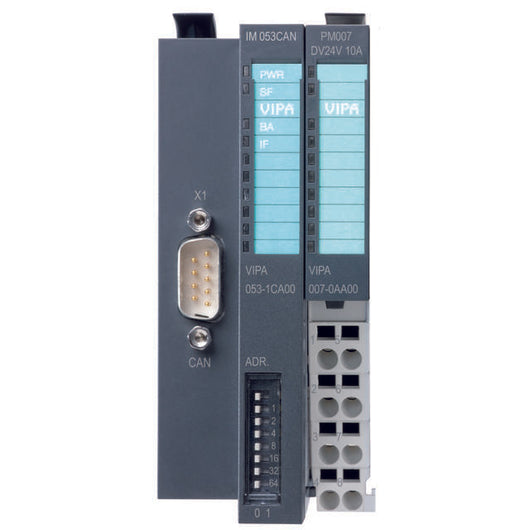

CANOpen Slave Unit IM053CAN
Direct Replacement for Lenze EPM-S110
Features
- CANopen Slave
- 16 Rx and 16 Tx PDOs
- 2 SDOs
- PDO linking
- PDO mapping: fix
- up to 64 peripheral modules
Technical data power supply
- Power supply (rated value): DC24 V
- Power supply (permitted range): DC 20.4 28.8 V
- Reverse polarity protection: Yes
- Current consumption (no-load operation): 90mA
- Current consumption (rated value): 0.95A
- Inrush current: 3.9A
- I2t: 0.14Asq/S
- Max. current drain at backplane bus: 3A
- Max. current drain load supply: 10A
- Power loss: 3W
Communication
- Fieldbus: CANopen
- Type Of Interface: CAN
- Connector: Sub-D 9 pin male
- Topology: Linear bus with bus termination at both ends
- Electrially isolated: Yes
- Number of participants, max: 127
- Transmission speed, min: 10 kbit/s
- Transmission speed, max: 1 Mbit/s
- Address range inputs, max: 128 byte
- Address range outputs, max: 128 byte
- Number of TxPDOs, max: 16
- Number of RxPDOs, max: 16
