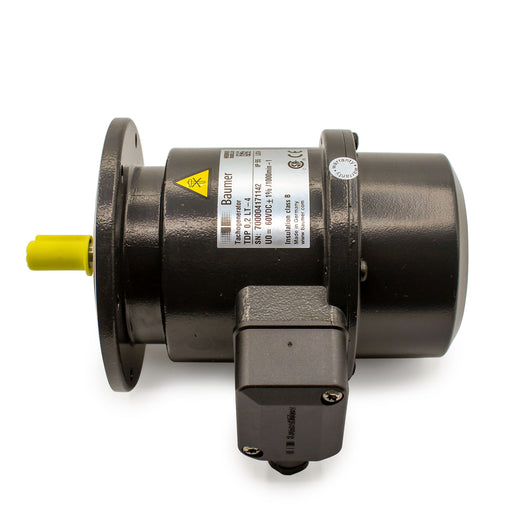

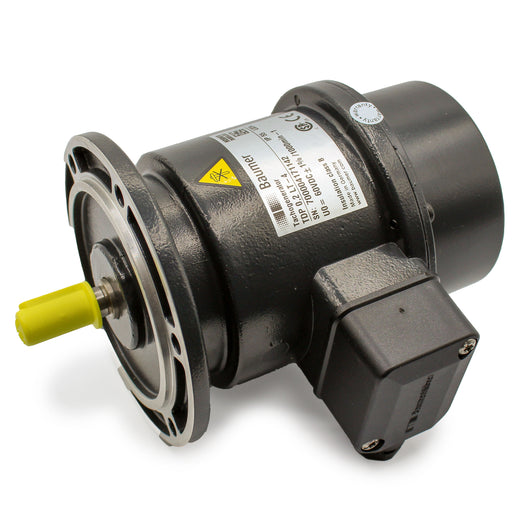

Tachogenerator TDP 0,2 LT-4 (REO444R Replacement)
The baumer tachogenerator is a robust industry standard Tachogenerator to fit almost every application, In many instances the DC drive can be calibrated to accept different voltage tachogenerator outputs. This 60V/1000 voltage is the most used, and if needed this model is available in alternative output voltages such as 20V/1000RPM. When fitted to DC drives the tacho-generator increases the speed holding tolerance to typically less than 1% for high accuracy speed holding. If a tacho is not used, some DC thyristor drives can be utilised in (AVF) Armature voltage feedback.
- Voltage output: 60V/1000 RPM or 0.06mV / 1 RPM
- Industry standard B10 EURO flange fitting with 6 x 6.5mm holes on a 100mm PCD
Protection: IP 55
Housing material : Die-cast aluminium
Maximum Speed: 10,000 RPM
This tacho is an alternative to:
- REO444R B
- LOG4419531-1
- 4419531-1
- DD059104U004
Useful information
| Shaft diameter | Shaft length | Keyway width | Registration spigot | Overall diameter | Weight |
|---|---|---|---|---|---|
| 11mm | 30mm | 4mm | 85mm | 115mm | 2.6kg |
