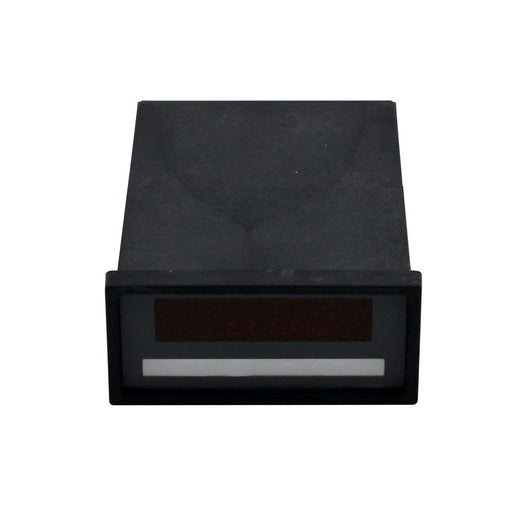

DPM35S
Four and a half digit panel meter. Features include a slide in legend, plug-in screw terminals, display hold, 110/240v AC Supply. Display is 14mm red LED with range +/- 1999 and selectable decimal point.
The unit is scaleable in engineering units via customer accessible multiturn preset. Any full scale voltage from +/-5v to +/-200v can be adjusted to read any display number. Customer accessible offset control. Full ratio facility with automatic “out of limits”, 4-20mA loop input facility. Range adjustment to 100mV and an AC voltage measurement input facility.
DPM35SD
A three and a half digit version of the DPM35SD with display reading to +/-19990. All other features included.
