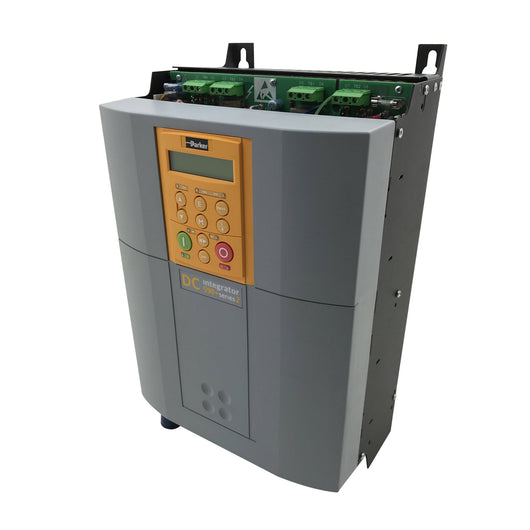

Parker DC590P 40A 220-500V Input 4Q DC Thyristor Drive - 590P-53240020-P00-U4V0
Parker DC590P 4Q 40A
Power Output: 40A | 3PH
Power Input: Three Phase 220-500V
Output Current: 40A
Frequency Input: 50 - 60Hz
Frame Size 2 Dimensions
| Weight(kg) | Width | Height | Depth |
|---|---|---|---|
| 10.5kg | 200mm | 434mm | 292mm |
DC590P 40A Onboard
- 8 x Analog I/O
- 12 x Digital I/O
Parker DC590P Features
Reliable
The Parker 590 4Q DC drive takes DC motor control to a new level, with a 32 - bit microprocessor to assist its processes, the DC590 is highly functional, saves energy and has an extensive speed control.
Extensive Range
The DC590 series ranges from 1 Amp - 2700 Amps to suite every one of your needs to control motors and replace your DC drive systems. The 590 has a range of simple interface options that are compatible with the most common feedback devices enabling simple motor control with your range of electric motors.
Intuitive Design
Featuring an intuitive menu structure, the ergonomically designed operator panel allows quick and easy access to all parameters and functions of the drive via a bright, easy to read backlit display and tactile keypad. Additionally, it provides local control of start/stop, speed demand and rotation direction to greatly assist with machine commissioning.
Flexible Programming
Function Block Programming is a tremendously flexible control structure that allows an almost infinite combination of user functions to be realised with ease. Each control function (an input, output, process PID for example) is represented as a software block that can be freely interconnected to all other blocks to provide any desired action.
