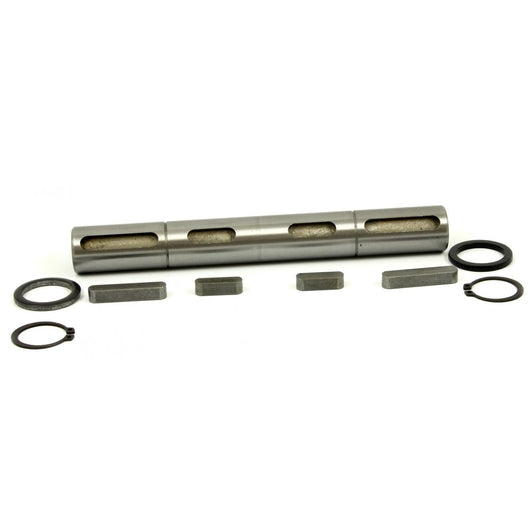

Double Output Shaft for FCNDK Gearboxes
Looking for a double output shaft for your FCNDK gearbox? Look no further. Simply select the Gearbox size you require from the drop-down menu and then add it to your cart.
Dimensions
Please see image number 2 for the referenced measurements in this table.
| Size | D (h6) | B | B1 | L | L1 | f | b | t |
|---|---|---|---|---|---|---|---|---|
| 25 | 11 | 23 | 25.5 | 81 | 101 | 4 | 12.5 | |
| 30 | 14 | 30 | 32.5 | 102 | 128 | M6 | 5 | 16 |
| 40 | 18 | 40 | 43.0 | 128 | 164 | M6 | 6 | 20.5 |
| 50 | 25 | 50 | 53.5 | 153 | 199 | M10 | 8 | 28 |
| 63 | 25 | 50 | 53.5 | 173 | 219 | M10 | 8 | 28 |
| 75 | 28 | 60 | 63.5 | 192 | 247 | M10 | 8 | 31 |
| 90 | 35 | 80 | 84.0 | 234 | 308 | M12 | 10 | 38 |
| 110 | 42 | 80 | 84.5 | 249 | 324 | M16 | 12 | 45.0 |
| 130 | 45 | 80 | 85.0 | 265 | 340 | M16 | 14 | 48.5 |
| 150 | 50 | 102 | 110 | 324 | 420 | M20 | 14 | 53.5 |
