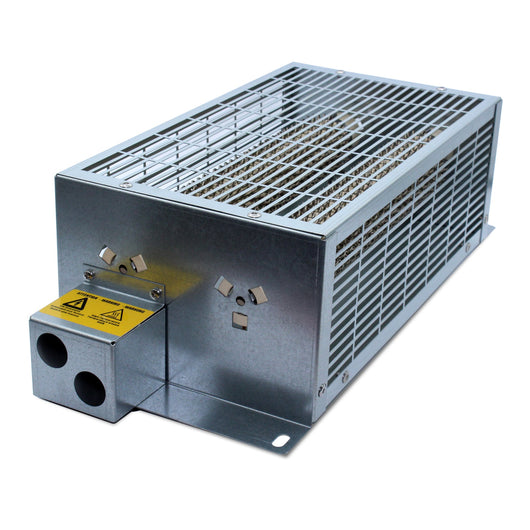

Dynamic Brake Resistor - 3kW | 4.7 Ohms - ES2-4R7-S-B
Features
- IP20 Rated
- Thermal Switch
Dimensions
| Model number | Watts | Ohms value | Continuous power (kW) | Weight (kg) | Width (mm) | Height (mm) | Depth (mm) |
|---|---|---|---|---|---|---|---|
| ES2-4R7-S-B | 3000 | 4.7 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-5R6-S-B | 3000 | 5.6 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-6R8-S-B | 3000 | 6.8 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-8R2-S-B | 3000 | 8.2 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-10R-S-B | 3000 | 10 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-12R-S-B | 3000 | 12 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-15R-S-B | 3000 | 15 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-18R-S-B | 3000 | 18 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-20R-S-B | 3000 | 20 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-22R-S-B | 3000 | 22 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-24R-S-B | 3000 | 24 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-27R-S-B | 3000 | 27 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-30R-S-B | 3000 | 30 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-33R-S-B | 3000 | 33 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-39R-S-B | 3000 | 39 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-40R-S-B | 3000 | 40 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-47R-S-B | 3000 | 47 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-50R-S-B | 3000 | 50 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-56R-S-B | 3000 | 56 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-68R-S-B | 3000 | 68 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-75R-S-B | 3000 | 75 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-82R-S-B | 3000 | 82 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-100R-S-B | 3000 | 100 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-120R-S-B | 3000 | 120 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-150R-S-B | 3000 | 150 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-180R-S-B | 3000 | 180 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-220R-S-B | 3000 | 220 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-270R-S-B | 3000 | 270 | 3 | 3.8kg | 213mm | 141mm | 467mm |
| ES2-330R-S-B | 3000 | 330 | 3 | 3.8kg | 213mm | 141mm | 467mm |
Why buy from ACDC Drives? |
We can help you to select the correct Dynamic Brake Resistor for your drive. Please just send an email with your requirements on, and we will reply within 24 hours with a quote for the product you require and the datasheet.
