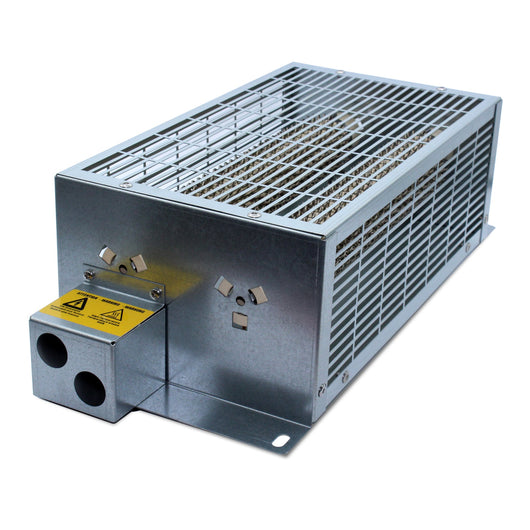

Dynamic Brake Resistor - 1.5kW | 10 Ohms - ES1-10R-S-B
Features
- IP20 Rated
- Thermal Switch
Dimensions
| Model number | Watts | Ohms value | Continuous power (kW) | Weight (kg) | Width (mm) | Height (mm) | Depth (mm) |
|---|---|---|---|---|---|---|---|
| ES1-10R-S-B | 1500 | 10 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-12R-S-B | 1500 | 12 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-15R-S-B | 1500 | 15 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-18R-S-B | 1500 | 18 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-20R-S-B | 1500 | 20 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-22R-S-B | 1500 | 22 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-24R-S-B | 1500 | 24 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-27R-S-B | 1500 | 27 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-30R-S-B | 1500 | 30 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-33R-S-B | 1500 | 33 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-39R-S-B | 1500 | 39 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-40R-S-B | 1500 | 40 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-47R-S-B | 1500 | 47 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-50R-S-B | 1500 | 50 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-56R-S-B | 1500 | 56 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-68R-S-B | 1500 | 68 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-75R-S-B | 1500 | 75 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-82R-S-B | 1500 | 82 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-100R-S-B | 1500 | 100 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-120R-S-B | 1500 | 120 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-150R-S-B | 1500 | 150 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-180R-S-B | 1500 | 180 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-220R-S-B | 1500 | 220 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
| ES1-270R-S-B | 1500 | 270 | 1.5 | 2.2kg | 121mm | 141mm | 467mm |
Why buy from ACDC Drives? |
We can help you to select the correct Dynamic Brake Resistor for your drive. Please just send an email with your requirements on, and we will reply within 24 hours with a quote for the product you require and the datasheet.
