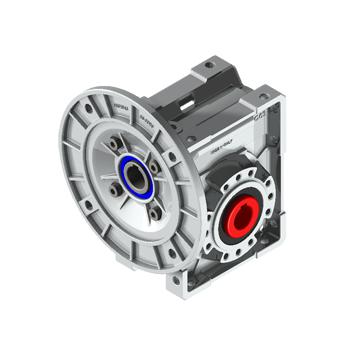

Square Frame Worm Gearbox - For Motor Size 63 0.18kW
200rpm Output - 7Nm
Input RPM
1400 RPM
Ratio
7.0:1
Output Speed
200.00 min-1
Motor Power |Torque
0.18kW | 7Nm
Service Factor
2.4
Output Diameter
Standard ø14mm
Input Flange
63 B5 ø140
Output Bore
Standard ø11mm
Technical Details
Lubrication
Unit Q30 is supplied with synthetic oil (SHELL Omala S4 WE 320), providing “long life” lubrication. For standard mounting orientations 0.03l is the fill amount.
| Weight(kg) | Width | Height | Length |
|---|---|---|---|
| 4.0kg | 55mm | 101.5mm | 97mm |
Single-piece aluminum alloy housing
UIs vacuum impregnated (MIL-STD 276) for protection and sealing. No secondary finish required but readily accepts paint. Combines light weight with high tensile strength. Precision machined for alignment of bearings and gearing.
Oversized bearings
Support positively-retained, high speed shaft for higher shock load capacity - ideal for frequent starting and reversing application. Premium, Nitrile® high temperature seals each end.
Impregnated and machined bearing caps
With exterior machined surfaces enable a variety of mounting accessories. Extra-deep thread engagement provided for greater support strength. Zinc plated hardware.
Single piece alloy steel input shaft and worm shaft
High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused, for noise reduction and enhanced efficiency.
