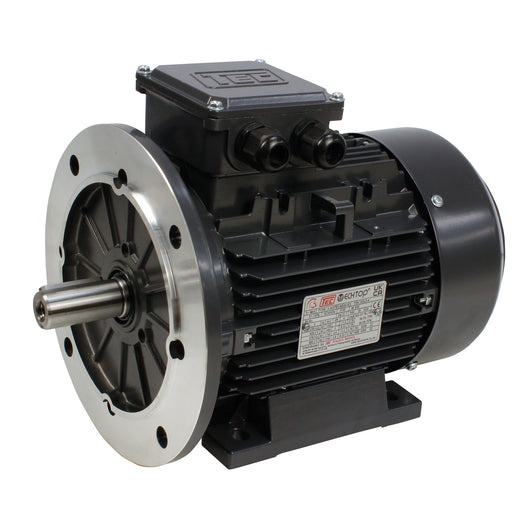

TEC Motor 5.5kW - 4 Pole | 132 Frame | B35 Mount | 415V / 690V | 3Ph Supply
Motor Specifications
- 3 Phase 5.5kW 4 Pole Motor
- Mount Type: B35 / Foot and Flange
- IP55, according to IEC 60034-5
- IE3 Standard Efficiency
- Class F Insulation
- Class B Temperature Rise
- Continuous duty: S1
- Torque Output:35.22Nm
- Max Current (Delta):11.04A
- Max Current (Star):6.37A
- Efficiency 100%:87.7
- Bearing DE: 6308 2RS C3
- Bearing NDE: 6208 2RS C3
- Cable Glands: 2x M25 x 1.5
- Thermal Protection: PTC 130 Degrees C
Motor Dimensions
These IEC sized Motors have multi-mount terminal boxes resulting in a far greater degree of flexibility and adaptability.
| Shaft Diameter (B) | Keyway Width (A) | Shaft Length (C) |
|---|---|---|
| 38mm | 10mm | 80mm |
Motor External Dimensions
| Weight(kg) | Width | Height | Length |
|---|---|---|---|
| 43kg | 252mm | 318mm | 475mm |
