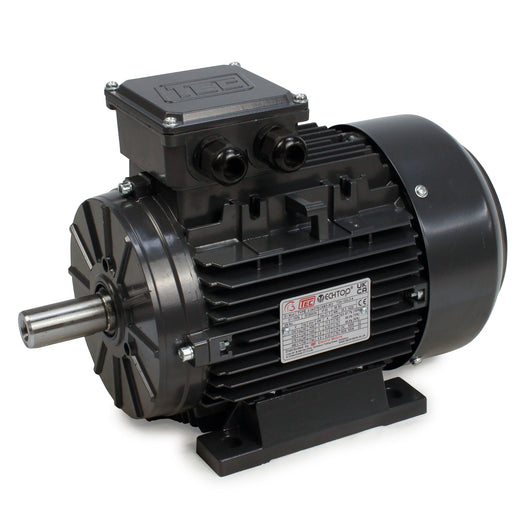

TEC Motor 4.0kW - 2 Pole | 112 Frame | B3 Mount | 415V / 690V | 3Ph Supply
Motor Specifications
- 3 Phase 4.0kW 2 Pole Motor
- Mount Type: B3 / Foot
- IP55, according to IEC 60034-5
- IE2 Standard Efficiency
- Class F Insulation
- Class B Temperature Rise
- Continuous duty: S1
- Torque Output:Â 13.13Nm
- Max Current (Delta):Â 7.73A
- Max Current (Star):Â 4.47A
- Efficiency 100%:Â 85.8
- Bearing DE: 6206 2RS C3
- Bearing NDE: 6206 2RS C3
- Cable Glands: 2Â x M25 x 1.5
- Thermal Protection: PTC 130 Degrees C
Motor Dimensions
All Universal Motors have multi-mount terminal boxes resulting in a far greater degree of flexibility and adaptability.
| Shaft Diameter (B) | Keyway Width (A) | Shaft Length (C) |
|---|---|---|
| 28mm | 8mm | 60mm |
Motor External Dimensions
| Weight(kg) | Width | Height | Length |
|---|---|---|---|
| 26.4kg | 220mm | 279mm | 395mm |
