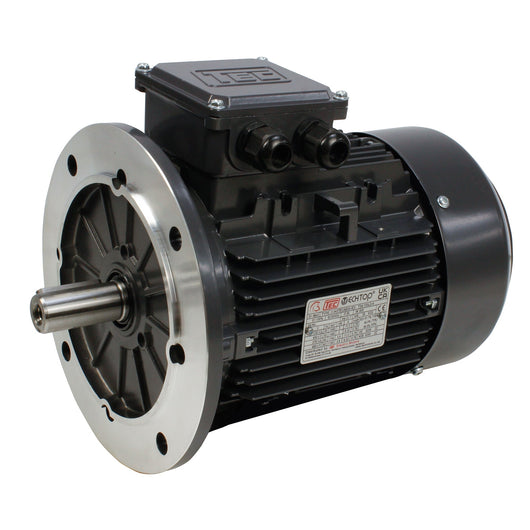

TEC Motor 3.0kW - 2 Pole | 100 Frame | B5 Mount | 230V / 415V | 3Ph Supply
Motor Specifications
- 3 Phase 3.0kW 2 Pole Motor
- Mount Type: B5 / Flange
- IP55, according to IEC 60034-5
- IE3 Standard Efficiency
- Class F Insulation
- Class B Temperature Rise
- Continuous duty: S1
- Torque Output:9.88Nm
- Max Current (Delta):10.31A
- Max Current (Star):5.95A
- Efficiency 100%:84.6
- Bearing DE: 6205 2RS C3
- Bearing NDE: 6205 2RS C3
- Cable Glands: 2x M20 x 1.5
- Thermal Protection: PTC 130 Degrees C
Motor Dimensions
These IEC sized Motors have multi-mount terminal boxes resulting in a far greater degree of flexibility and adaptability.
| Shaft Diameter (B) | Keyway Width (A) | Shaft Length (C) |
|---|---|---|
| 28mm | 8mm | 60mm |
Motor External Dimensions
| Weight(kg) | Width | Height | Length |
|---|---|---|---|
| 22.7kg | 198mm | 252mm | 369mm |
Do you Have a Single Phase 230VAC Supply?
This motor, although 3 Phase can be used with one of our Inverters from this category: Inverters 230VAC Input
Selecting the matching power Inverter and adding that to your basket along with the selected motor above will allow you to run a 3 Phase Motor from a single-phase socket or supply.
