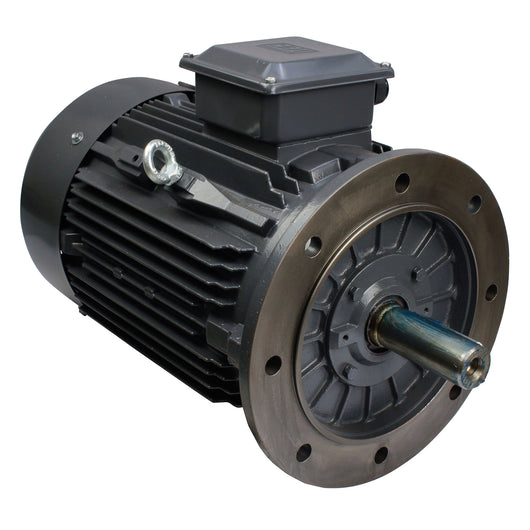

TEC Motor 11.0kW - 2 Pole | 160 Frame | B5 Mount | 415V / 690V | 3Ph Supply | IE3 Efficiency | Cast Iron Frame
Motor Specifications
- 3 Phase 11.0kW 2 Pole Cast Iron Motor
- Mount Type: B5 / Flange
- Rotation Speed: 2930 / 3516
- IP55, according to IEC 60034-5
- IE3 High Efficiency
- Class F Insulation
- Class B Temperature Rise
- Continuous duty: S1
- Torque Output:Â 35.85Nm
- Max Current (Delta):Â 19.34A
- Max Current (Star):Â 11.17A
- Efficiency 100%:Â 91.2
- Efficiency 75%:Â 93.8
- Bearing DE: 6309 C3
- Bearing NDE: 6309 C3
- Cable Glands: 2Â x M32 x 1.5
- Thermal Protection: PTC 140 Degrees C
Motor Dimensions
These IEC sized Motors have multi-mount terminal boxes resulting in a far greater degree of flexibility and adaptability.
| Shaft Diameter (B) | Keyway Width (A) | Shaft Length (C) |
|---|---|---|
| 42mm | 12mm | 110mm |
Motor External Dimensions
| Weight(kg) | Width | Height | Length |
|---|---|---|---|
| 118kg | 290mm | 384mm | 640mm |
Motor Options:
11kw 2P Motor With Encoder
Do you require absolute speed control for use in a closed loop application with an inverter? We can supply this motor with a pre installed encoder. Just tick the Box above the 'Add To Cart' button and we will do the rest. If this is urgent and requires a fast turn around, please contact us. Standard fitting time is 7 working days.
11kw 2P Motor With Force Vent (415VAC)
If you require a Forced Vent unit with your motor, click the option above and we will supply the correct unit along with your motor. We recommend these if you plan on running at low speed for longer periods. This will require an extra 415 VAC supply. For details on the actual unit, please see this page: Forced Vent 160 Frame 415 VAC
